8061SRM27.10

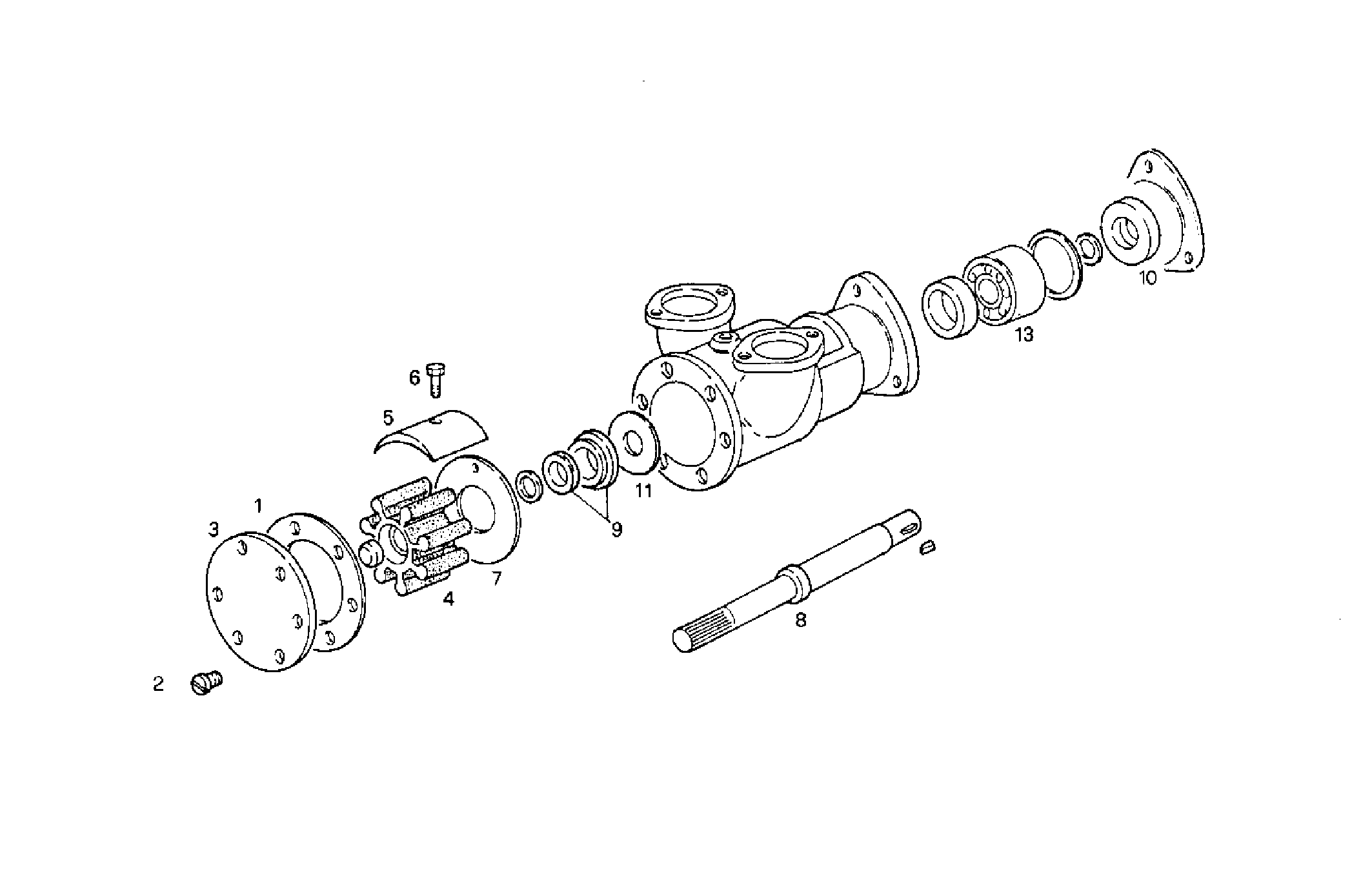

3380.003/02 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 4914944 | GASKET |
| 2 | 4914931 | SCREW |
| 3 | 4914945 | COVER |
| 4 | 8112172 | SEA WATER PUMP IMPELL. |
| 5 | 4914942 | RETAINING CAM |
| 6 | 8093336 | SCREW |
| 7 | 4914941 | WASHER |
| 8 | 4914964 | SHAFT |
| 9 | 8093335 | WASHER |
| 10 | 4917258 | GASKET |
| 11 | 4914952 | WASHER |
| 13 | 8093337 | DRIVE BEARING |
