8061SRM27.10

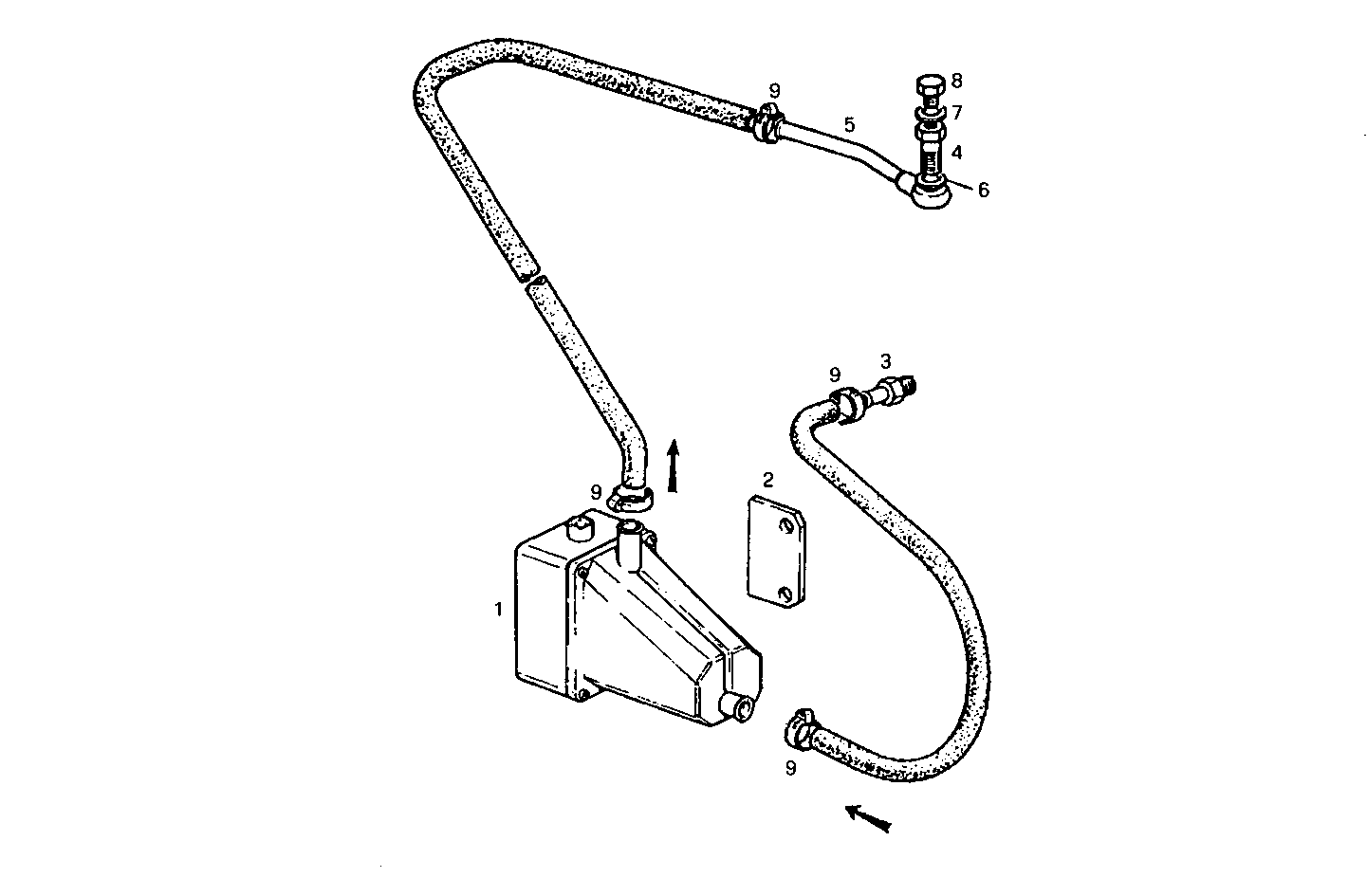

A20040017 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8008375 | HEATER 700W |
| 2 | 8006354 | SUPPORT |
| 3 | 4616630 | THREADED UNION |
| 4 | 4928361 | SCREW CONNECTOR |
| 5 | 8112239 | WATER PIPE |
| 6 | 10263460 | WASHER Ø22X28X1,5 MM |
| 7 | 10278660 | SEAL GASKET Ø16X22 MM SP=1 MM |
| 8 | 10300711 | LOCK PLUG M16 |
| 9 | 17764492 | CLIP Ø16-25 MM |
