8061SRM30.10

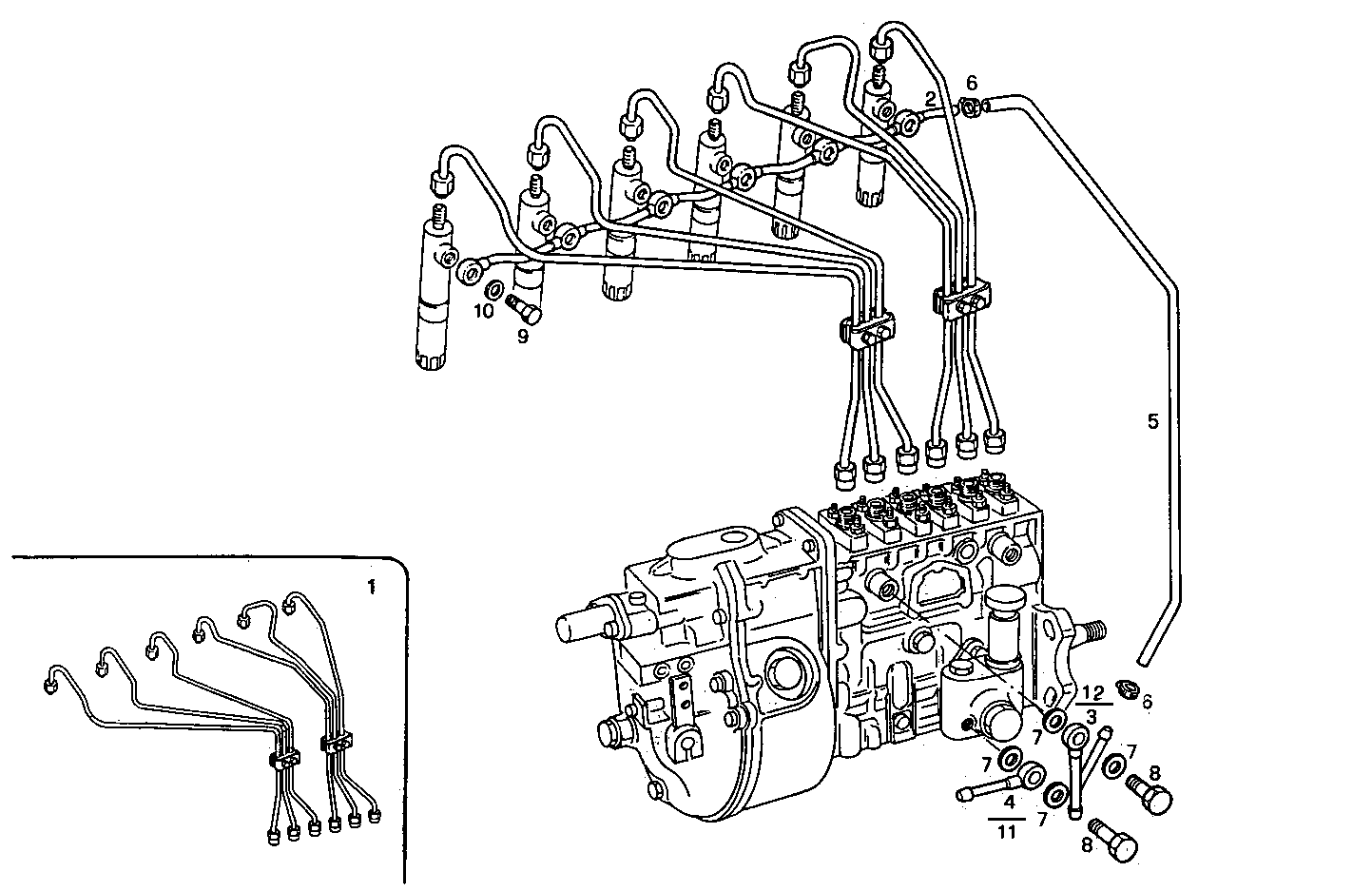

2020.018 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 8005718 | INJECTION LINE SET |
| 2 | 4788070 | INJECTION LINE 1C [up to 31-08-02] |
| 3 | 8010952 | FUEL LINE 1C [up to 12-05-03] |
| 4 | 79010214 | PIPE SOCKET 1C |
| 5 | 8006636 | RUBBER SLEEVE |
| 6 | 17764293 | CLIP Ø10/16 MM |
| 7 | 98474308 | SEAL GASKET Ø14X22 MM |
| 8 | 4846083 | SCREW CONNECTOR |
| 9 | 93190600 | SCREW CONNECTOR M6 |
| 10 | 1118641 | WASHER Ø6X10 MM |
| 11 | 8030222 | PIPE SOCKET D [from 01-09-02] |
| 12 | 8034106 | FUEL LINE D [from 13-05-03] |
