8061SRM30.10

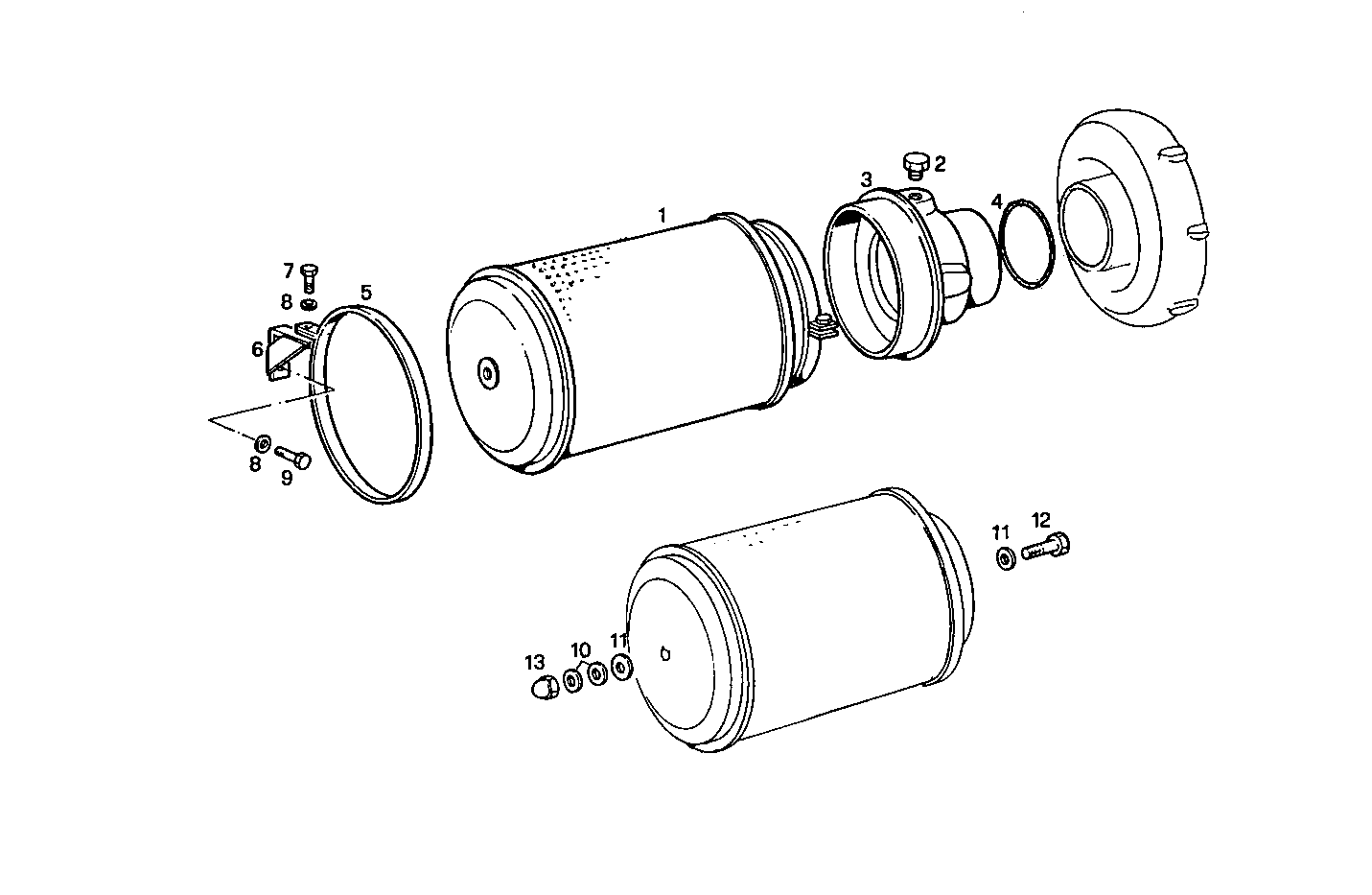

2210.014 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8103484 | AIR CLEANER ASSY |
| 2 | 8105144 | PLUG |
| 3 | 8111212 | AIR MANIFOLD |
| 4 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 5 | 8006659 | CLIP |
| 6 | 8007134 | RETAINER |
| 7 | 16605804 | WASHER |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16043321 | HEXAGON BOLT M8X18 MM |
| 11 | 12644321 | WASHER Ø10X35 MM |
| 12 | 16043821 | HEXAGON BOLT M8X30 MM |
| 13 | 16102311 | HEXAGON NUT M8 |
