8061SRM30.10

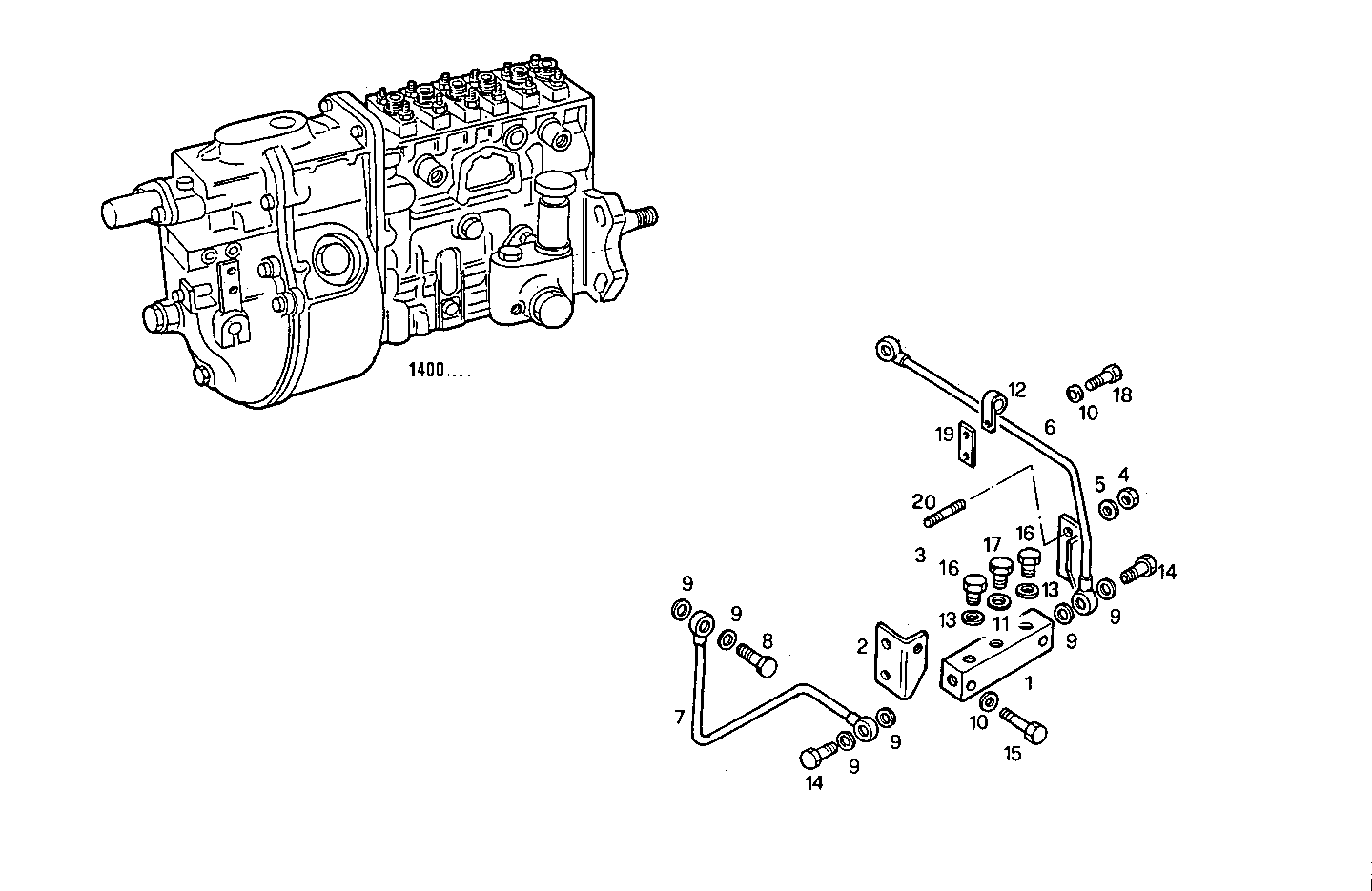

3010.029/01 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8100229 | CHOCK |
| 2 | 8006524 | RETAINER |
| 3 | 8100231 | RETAINER |
| 4 | 15896211 | HEXAGON NUT M6 |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 8009179 | OIL LINE |
| 7 | 8009168 | OIL LINE |
| 8 | 4864079 | SCREW CONNECTOR M10X1 |
| 9 | 4858606 | GASKET Ø10X14X1 MM |
| 10 | 11194074 | WASHER Ø8,4 MM |
| 11 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
| 12 | 10449890 | PIPE CLIP Ø53 MM |
| 13 | 10284460 | SEAL GASKET Ø10X16 MM |
| 14 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 15 | 16044021 | HEXAGON BOLT M8X1,25X40 MM |
| 16 | 11903040 | LOCK PLUG M10X1 |
| 17 | 16992240 | THREADED PLUG M12X1,5 |
| 18 | 16043221 | HEXAGON BOLT M8X16 MM |
| 19 | 4716869 | RETAINER |
| 20 | 13541121 | STUD M6X20 MM |
