8061SRM30.10

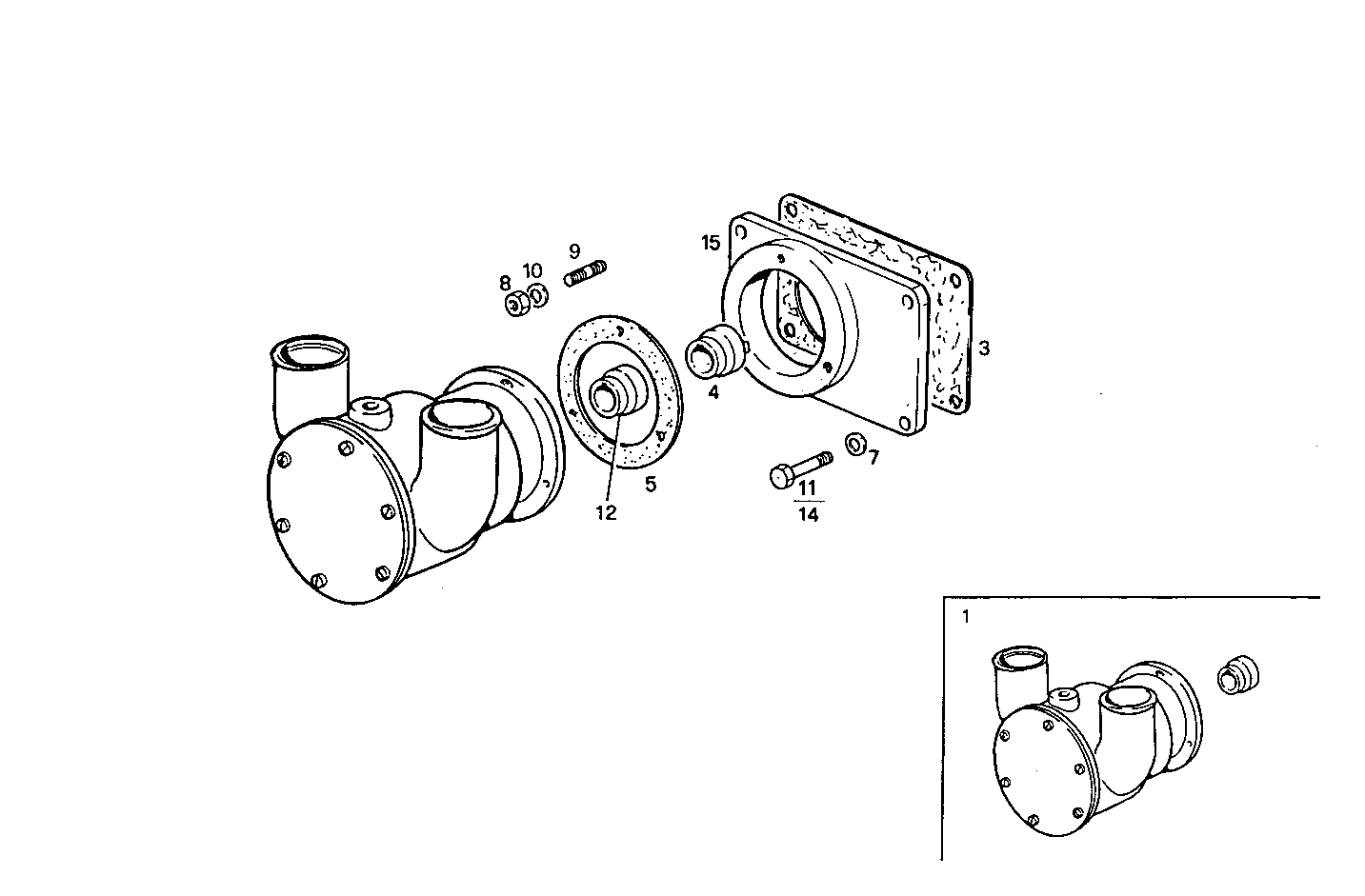

3380.023/01 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8110564 | SEA WATER PUMP ASSY JABSCO |
| 3 | 4850986 | FLAT ENGINE GASKET |
| 4 | 4621358 | RING |
| 5 | 8008734 | GASKET |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 16729324 | STUD M8X12X20 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 10902421 | HEXAGON BOLT M6X20 MM |
| 12 | 4934315 | COUPLER |
| 13 | 16729224 | STUD M8X16 MM |
| 14 | 10902621 | SCREW M6X25 MM |
| 15 | 8101083 | SUPPORT |
