8061SRM30.10

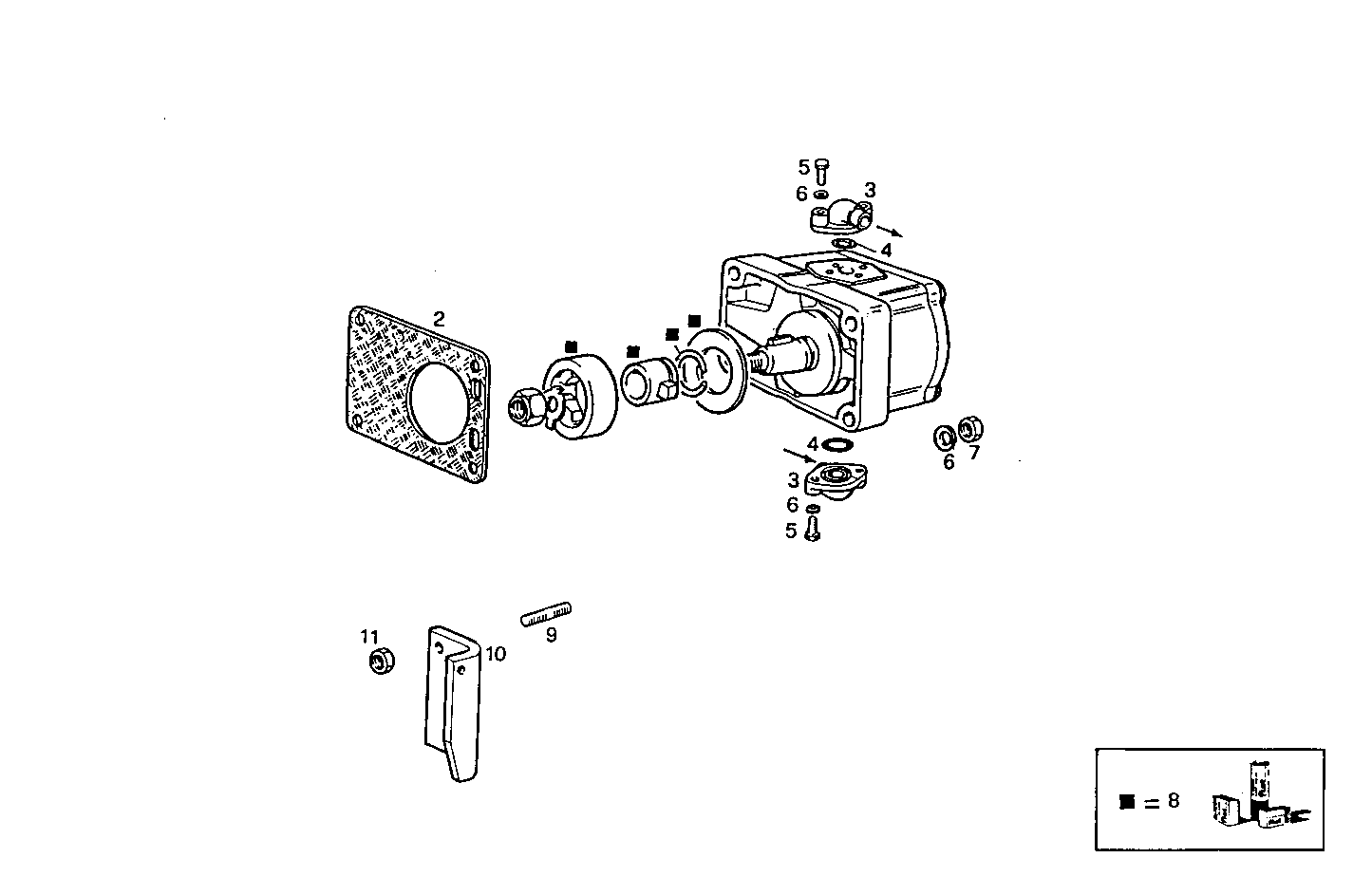

A09010007 REAR HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 5130133 | OIL PUMP-STEERING ASSY |
| 2 | 4850986 | FLAT ENGINE GASKET |
| 3 | 4670953 | PIPE SOCKET |
| 4 | 14457280 | O-RING Ø2,62X15,54 MM |
| 5 | 14305521 | SCREW M6X30 |
| 6 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 8090343 | KIT-HYDRAULIC PUMP |
| 9 | 13541721 | STUD |
| 10 | 8113716 | RETAINER |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
