8061SRM33.10

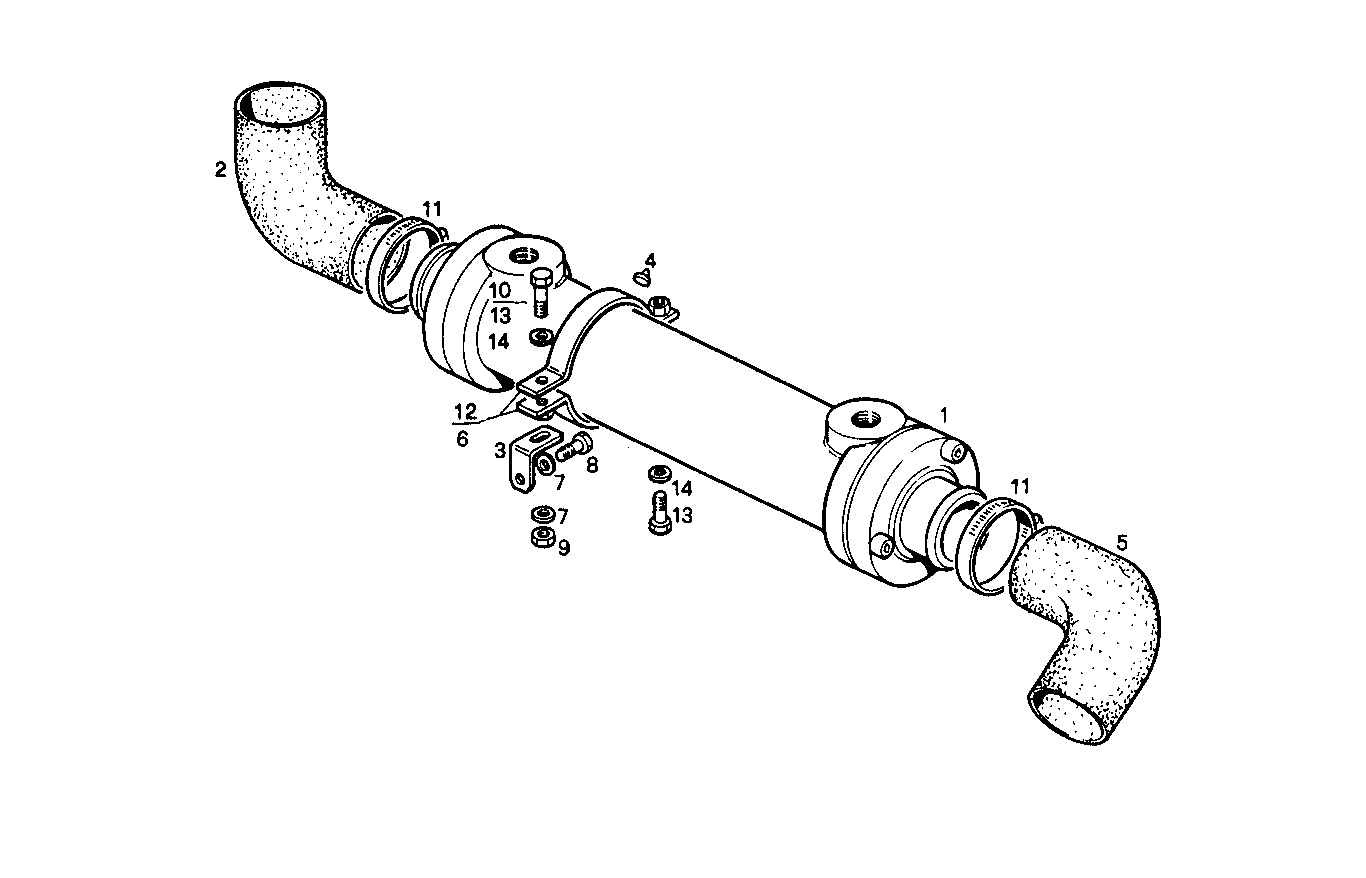

3350.001/01 REVERSER WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8016304 | OIL/WATER HEAT EXCHANGER ASSY |
| 2 | 8017516 | WATER HOSE |
| 3 | 8103023 | RETAINER |
| 4 | 4568427 | RUBBER PAD |
| 5 | 4644083 | WATER HOSE |
| 6 | 8013591 | CLIP ASSY [up to 06-93] |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 11 | 17764893 | CLIP Ø40/60 MM |
| 12 | 5116798 | CLIP ASSY [from 06-93] |
| 13 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
