8061SRM33.10

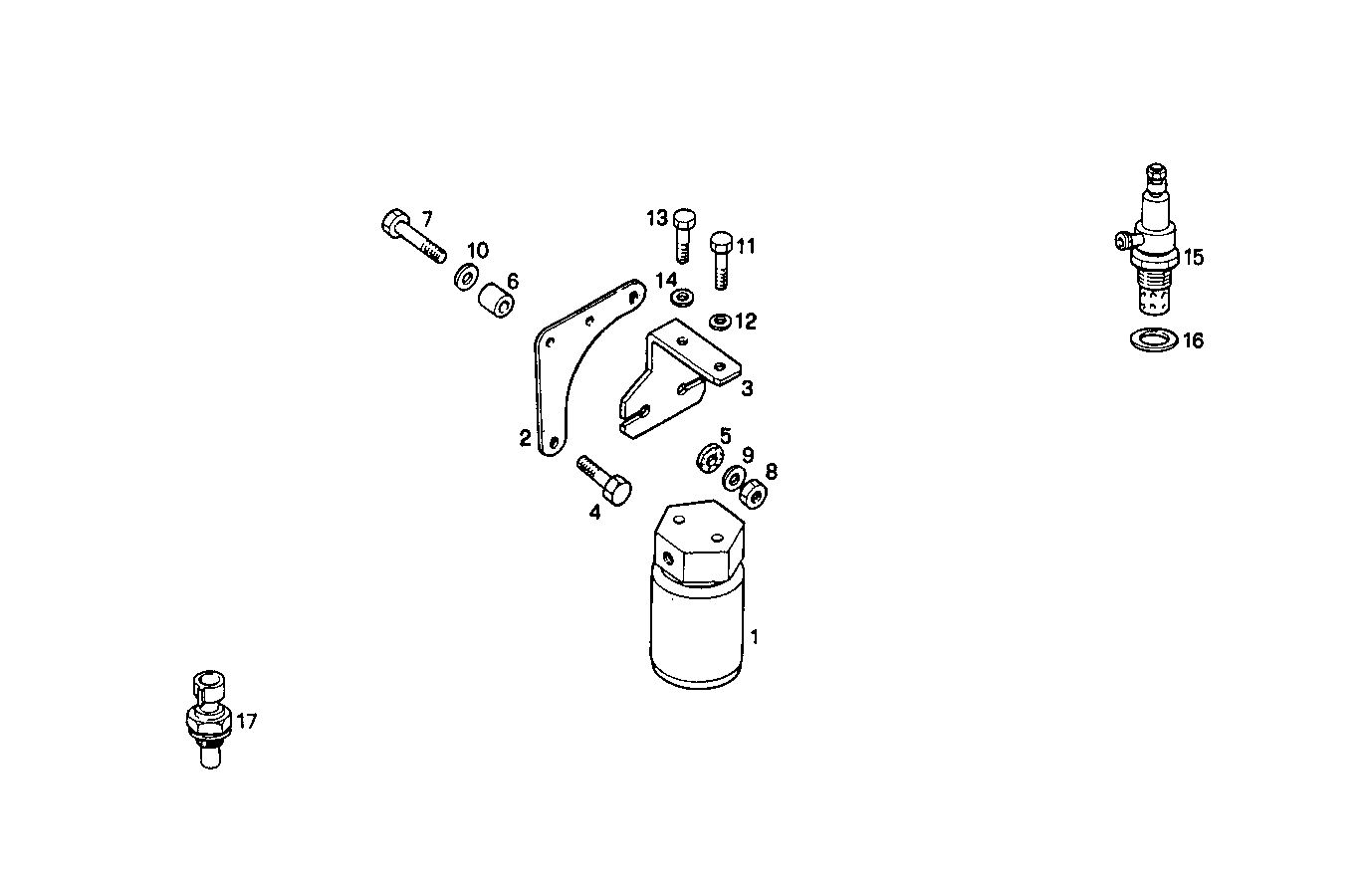

3650.012 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 98494902 | ELECTROVALVE |
| 2 | 8018800 | RETAINER |
| 3 | 4829507 | RETAINER |
| 4 | 16605924 | SCREW M8X40 MM |
| 5 | 4833816 | INSULATING RING |
| 6 | 4833815 | SPACING BAR |
| 7 | 10902521 | HEXAGON BOLT M6X22 MM (8.8) |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 12643701 | WASHER Ø6X18 MM |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 16602024 | SCREW M5X12 MM (8.8) |
| 12 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
| 13 | 16603524 | SCREW M6X12 MM (8.8) |
| 15 | 4849601 | THERMO-STARTER |
| 16 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 17 | 4857248 | TRANSMITTER |
