8061SRM33.12

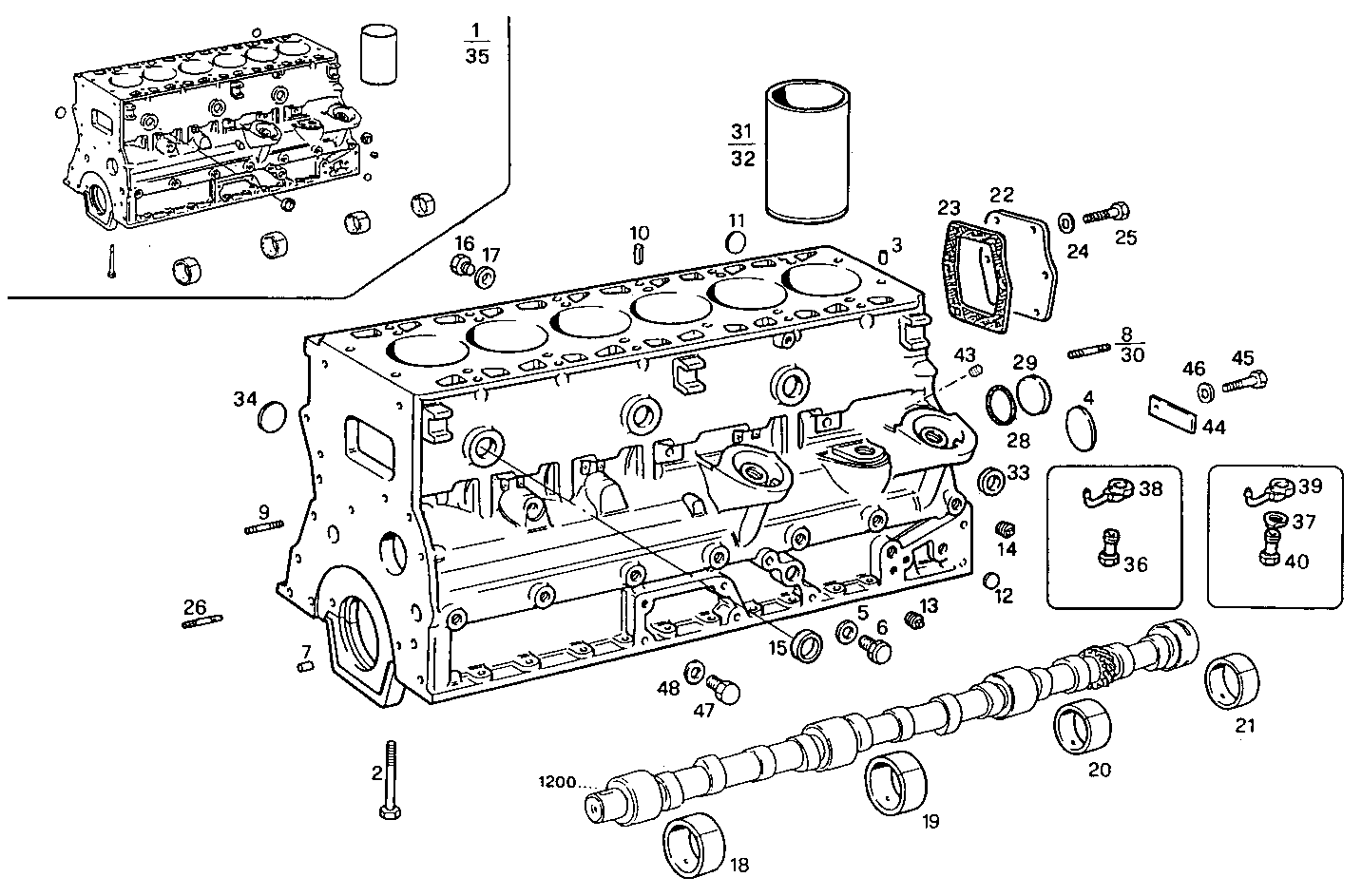

0400.080 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 98444137 CRANKCASE ASSY [from 565949]
2 4792169 SCREW
3 4846850 DOWEL PIN
4 10160701 LOCK PLUG Ø60 MM [up to ...]
5 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
6 10300511 LOCK PLUG M12X1,5
7 17275410 DOWEL PIN Ø8 MM
8 11797821 STUD M14X20X55 [up to ...]
9 13517821 STUD M8X12X60
10 14165470 DOWEL PIN Ø5,4 MM
11 14327401 PLUG Ø13 MM
12 14328201 LOCK PLUG M10
13 99434232 THREADED PLUG M14X1,5
14 14326001 THREADED PLUG M10X1,25
15 14329901 LOCK PLUG Ø40 MM
16 4665029 LOCK PLUG M42X1,5
17 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
18 4603448 CAMSHAFT BEARING FRONT
19 4603449 CAMSHAFT BEARING MOGUL
20 4603450 CAMSHAFT BEARING CLEVITE
21 4603451 CAMSHAFT BEARING MOGUL
22 8022445 REAR C.CASE COVER
23 99445564 FLAT ENGINE GASKET SP=1,5 MM
24 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
25 16043324 HEXAGON BOLT M8X18 MM
26 4853521 STUD M12x1,75 <--> M10x1,25
28 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
29 98412737 LOCK PLUG [from ...]
30 16735724 STUD M14X20X55 [from ...]
31 4803030 CYLINDER LINER
32 4803031 CYLINDERLINER +0.2
33 14328501 LOCK PLUG Ø16 MM
34 14282770 LOCK PLUG Ø36 MM
35 4801486 CRANKCASE ASSY [up to 565948]
36 98475228 SCREW CONNECTOR [from 674995]
37 4763440 LOCKING PLATE
38 98475474 OIL NOZZLE [from 674995]
39 4764577 OIL NOZZLE [up to 674994]
40 4763439 SCREW CONNECTOR [up to 674994]
43 4782452 DOWEL PIN
