8061SRM33.12

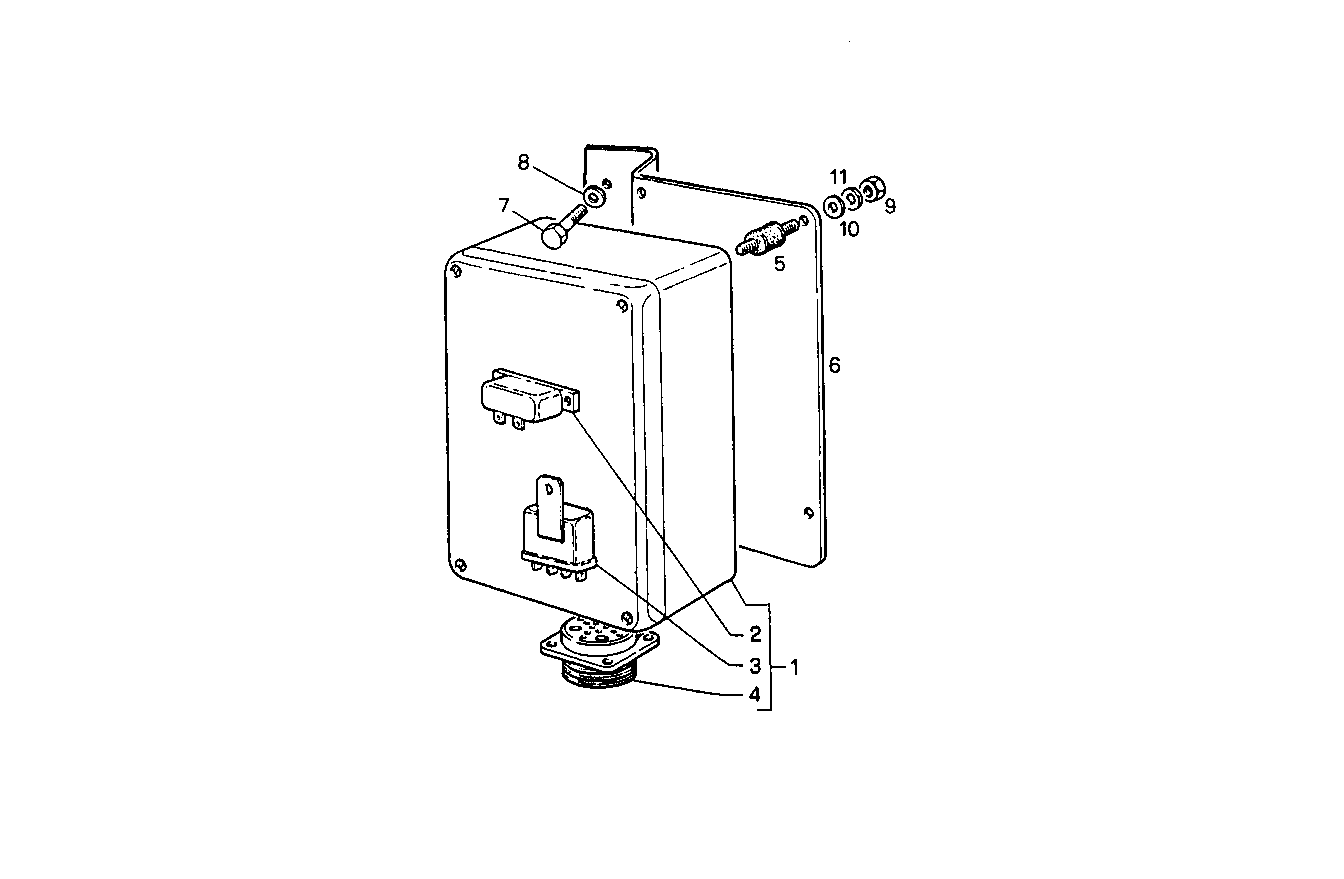

5650.012 ELECTRIC STOP ENGINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8020686 | ENGINE STOP ASSY |
| 2 | 8108574 | RELAY STARTER |
| 3 | 8094991 | RELAY 12 V |
| 4 | 8113170 | CONNECTION ASSY |
| 5 | 4910949 | RUBBER LUG |
| 6 | 8006308 | RETAINER |
| 7 | 16605424 | SCREW M8X16 MM (8.8) |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037831 | NUT M6X1 |
| 10 | 17094714 | WASHER Ø6,4X12 MM |
| 11 | 17710074 | WASHER Ø6X11 MM |
