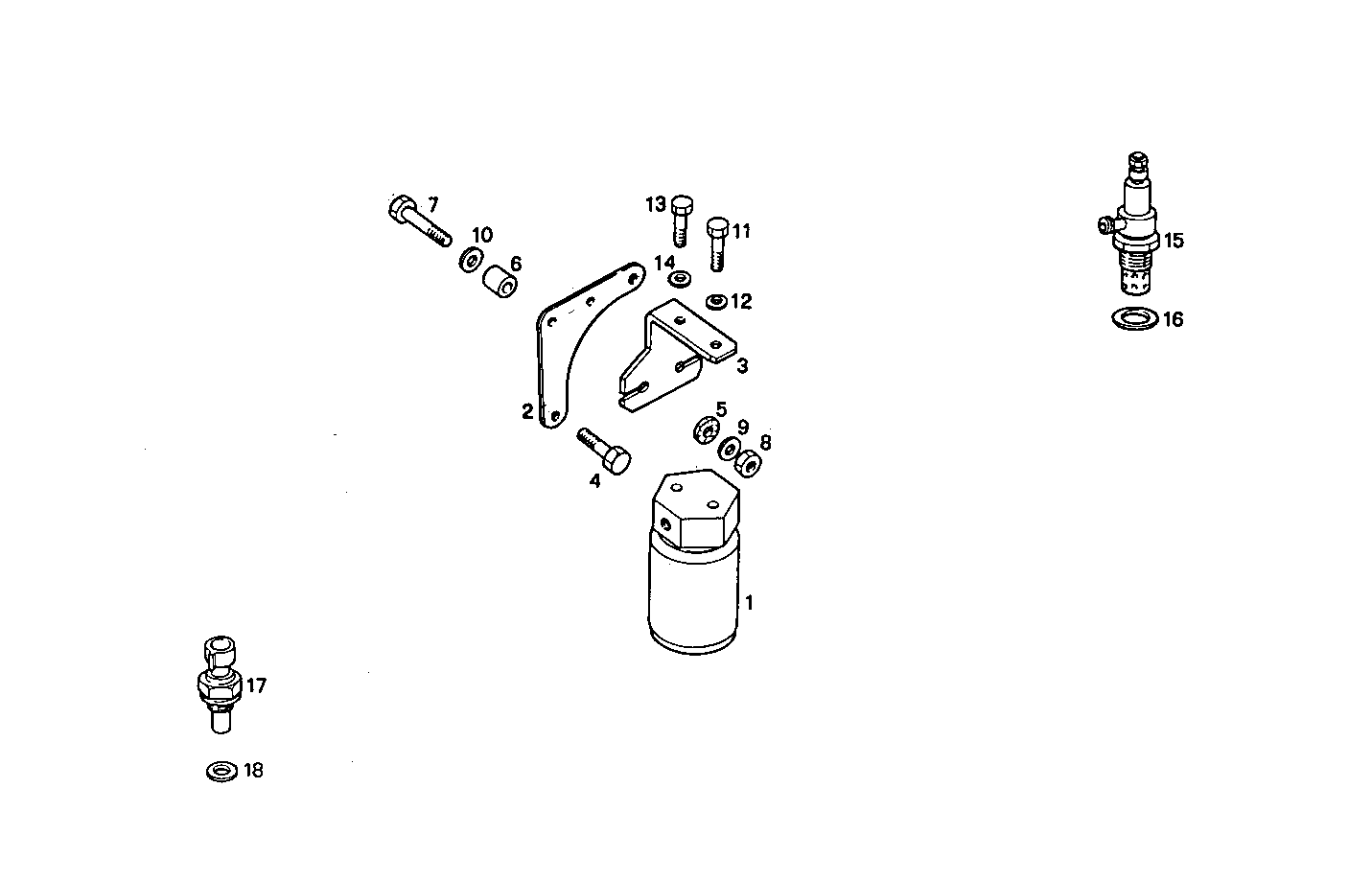

| Item |
Part number |
Description |
|
1 |
98494898 |
ELECT.V.VE.PREHEAT |
|
2 |
8018800 |
RETAINER |
|
3 |
4829507 |
RETAINER |
|
4 |
16605924 |
SCREW M8X40 MM |
|
5 |
4833816 |
INSULATING RING |
|
6 |
4833815 |
SPACING BAR |
|
7 |
10902521 |
HEXAGON BOLT M6X22 MM (8.8) |
|
8 |
17037821 |
HEXAGON NUT M6X1 |
|
9 |
12643701 |
WASHER Ø6X18 MM |
|
10 |
17088474 |
WASHER Ø6X12 MM |
|
11 |
16602024 |
SCREW M5X12 MM (8.8) |
|
12 |
11199279 |
SPRING WASHER Ø5X10X0,5 MM |
|
13 |
16603524 |
SCREW M6X12 MM (8.8) |
|
15 |
99444499 |
THERMO-STARTER |
|
16 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
17 |
4857250 |
TRANSMITTER |
|
18 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
