8061SRM33.12

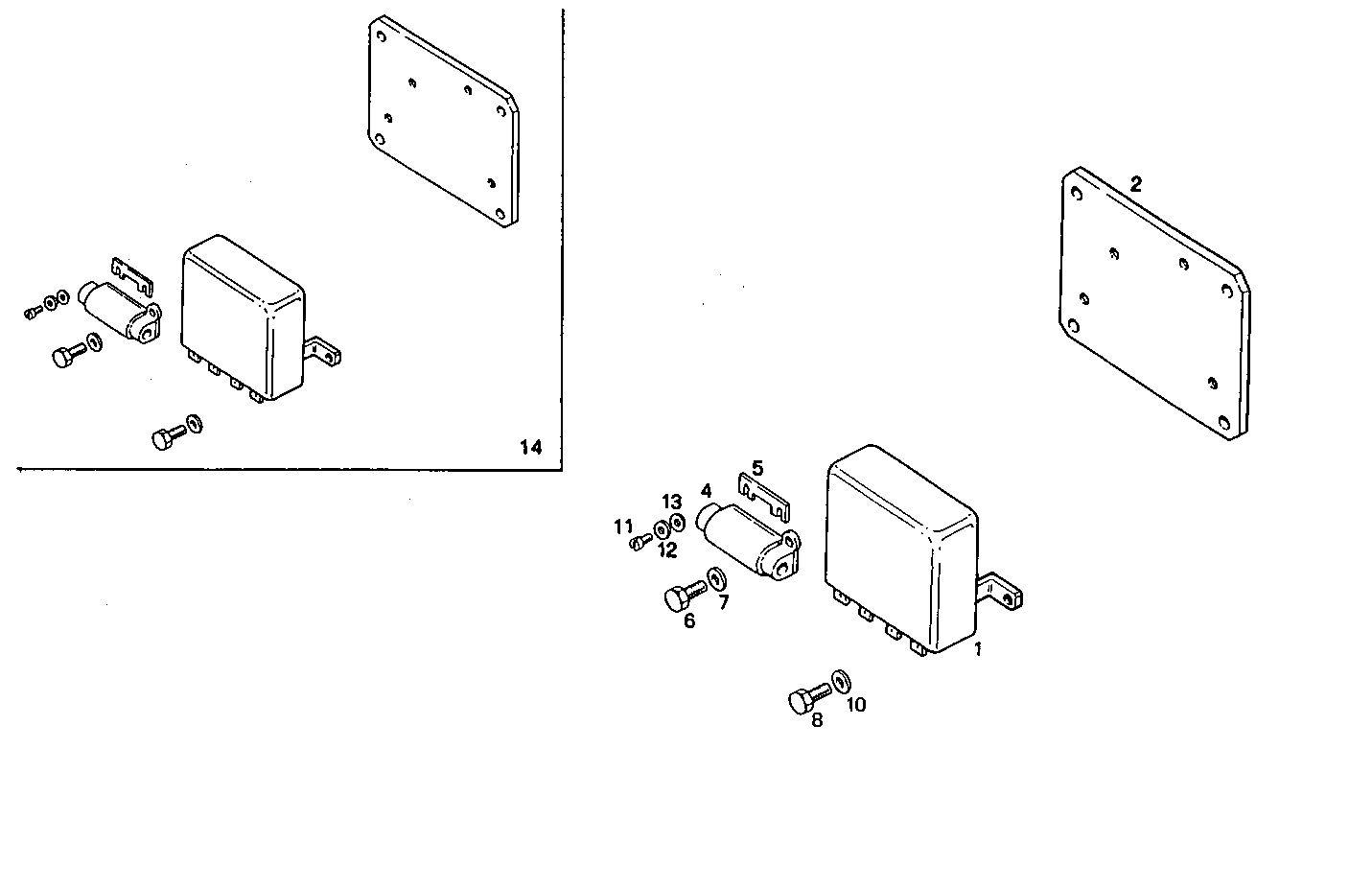

A20110002/03 THERMOSTARTER - 24V with electronic control unit
| Item | Part number | Description |
|---|---|---|
| 1 | 99484737 | ELECTR.CONTR.UNIT 24V PREHEATER CONTROL |
| 2 | 8017236 | PLATE |
| 4 | 98433973 | FUSE BOX |
| 5 | 98433974 | FUSE 30A |
| 6 | 10444721 | HEXAGON BOLT M4 |
| 7 | 11181474 | WASHER Ø4X9 MM SP=0,7 MM |
| 8 | 16603524 | SCREW M6X12 MM (8.8) |
| 10 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 11 | 17131814 | SCREW M5X10 |
| 12 | 16665304 | WASHER Ø5X10X1 MM |
| 13 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 14 | 8017441 | ELECTR.CONTR.UNIT ASSY |
