8061SRM33.40

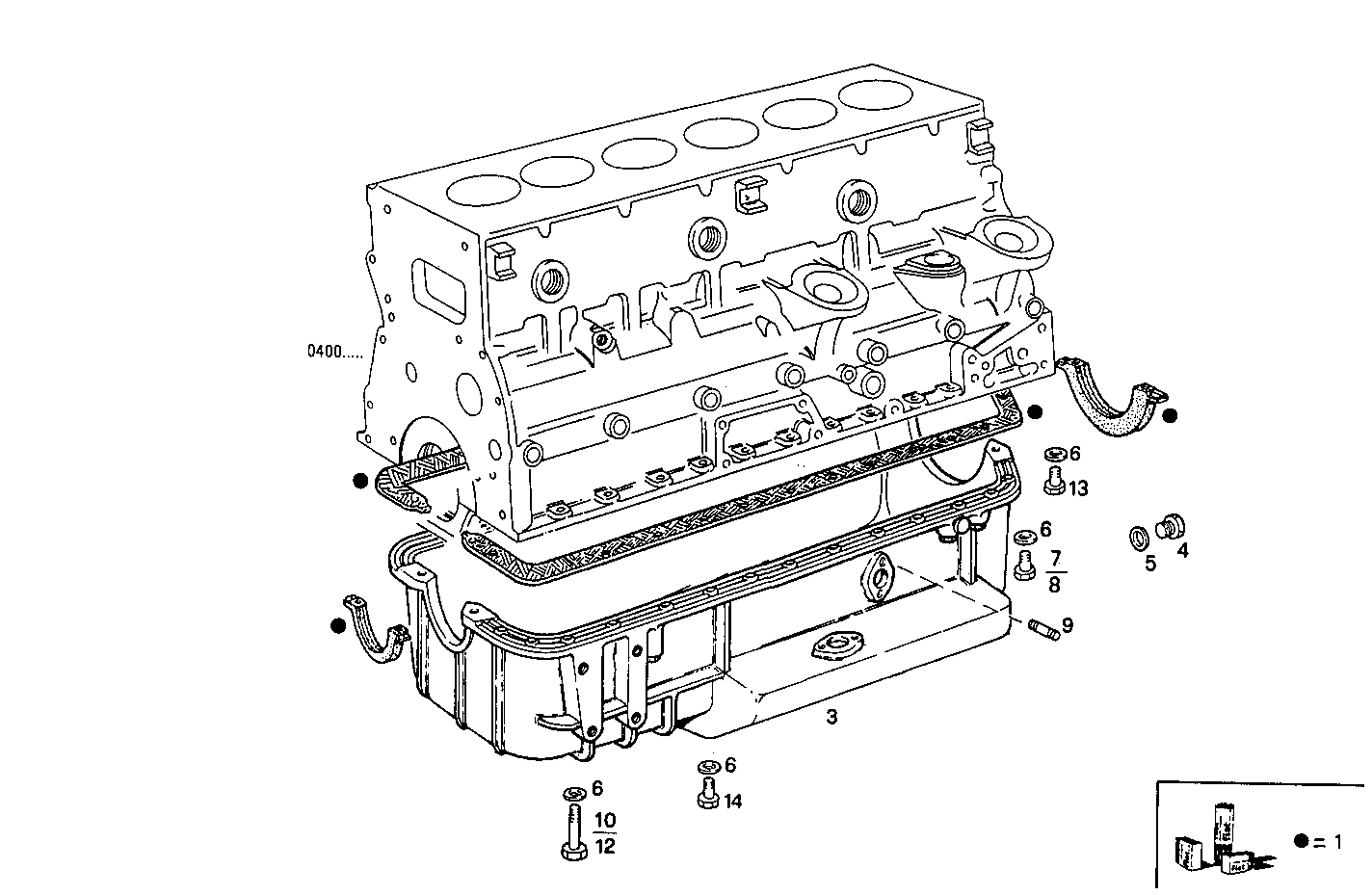

0420.095 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 1907561 | KIT-OILSUMP GASKET |
| 3 | 8018048 | OIL SUMP ASSY |
| 4 | 16992311 | LOCK PLUG M14X1,5 |
| 5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 6 | 17095004 | WASHER Ø10X18X2 MM |
| 7 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
| 8 | 10924221 | SCREW |
| 9 | 16746624 | STUD M8X20 MM (8.8) |
| 10 | 10955821 | SCREW |
| 12 | 10924621 | SCREW |
| 13 | 14308121 | SOCKET-HEAD SCREW |
| 14 | 10924421 | SCREW |
