8061SRM33.42

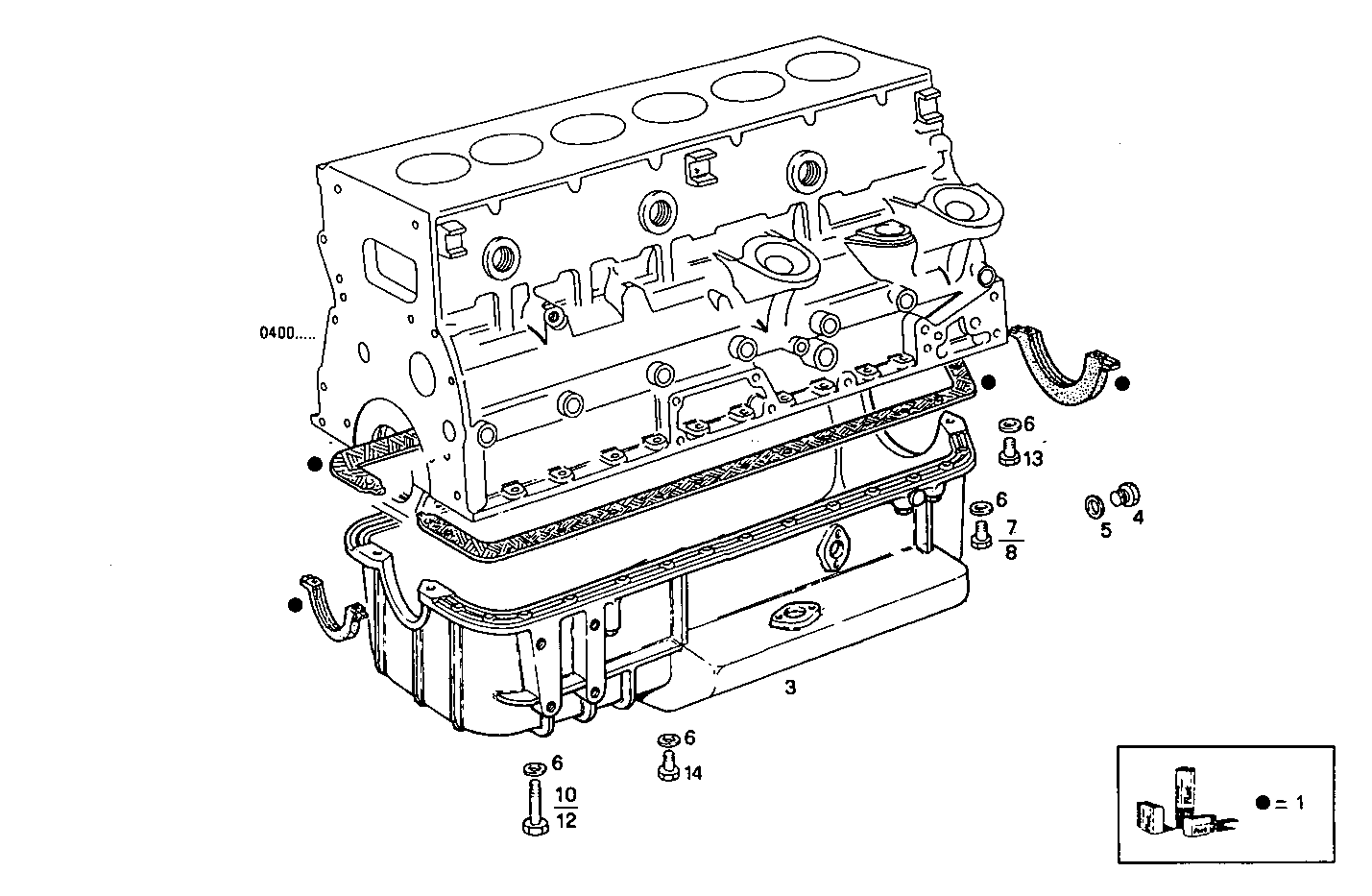

0420.104 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 1907561 | KIT-OILSUMP GASKET |
| 3 | 8018048 | OIL SUMP ASSY |
| 4 | 16992311 | LOCK PLUG M14X1,5 |
| 5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 6 | 17095004 | WASHER Ø10X18X2 MM |
| 7 | 10923624 | SCREW |
| 8 | 99475400 | SCREW M10X1,25X50 |
| 10 | 99475403 | SCREW M10X1,25X130 |
| 12 | 99475402 | SCREW M10X1,25X70 |
| 13 | 99475401 | SCREW M10X1,25X60 |
| 14 | 14308124 | SCREW |
