8061SRU26.06

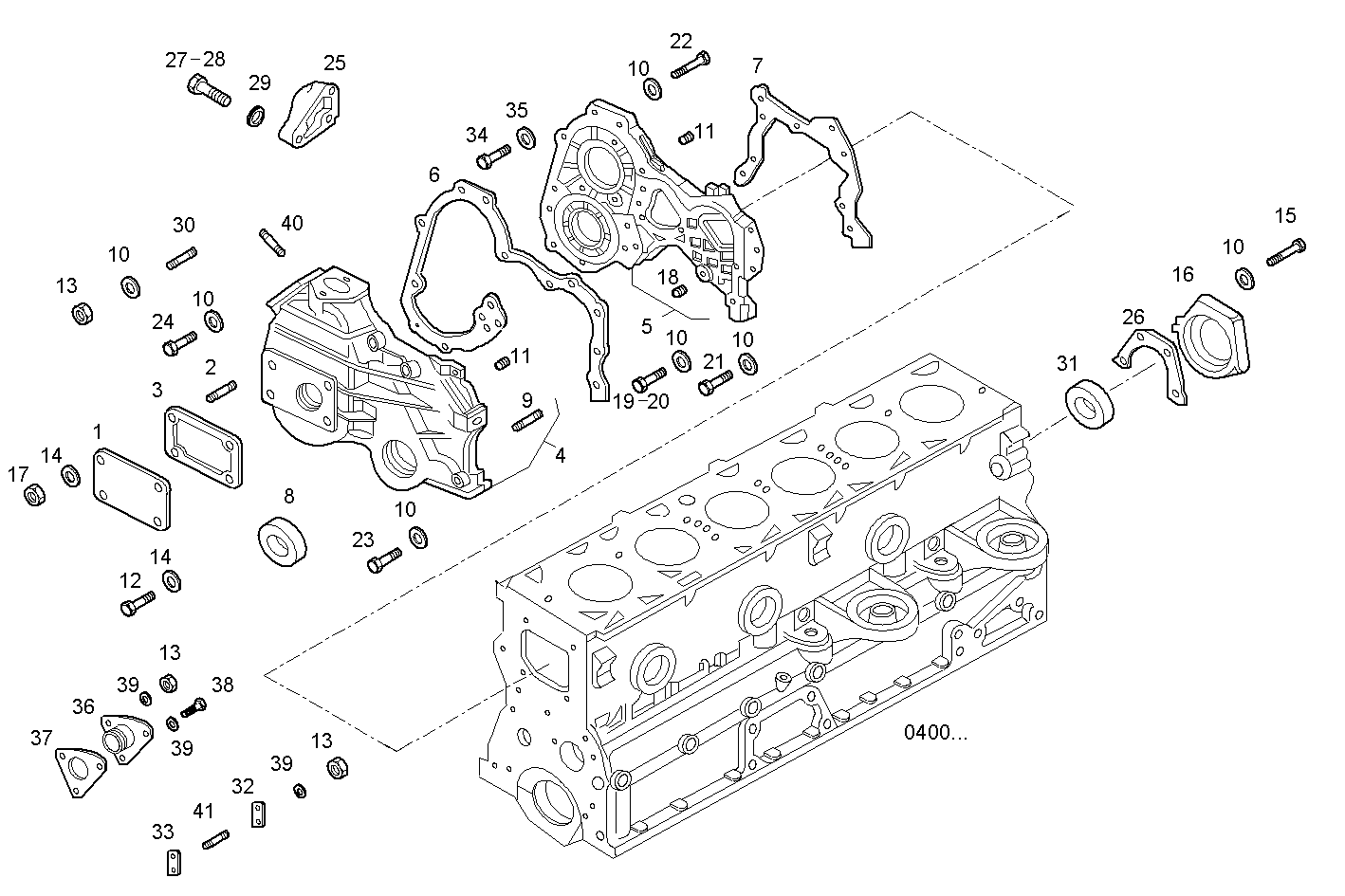

0430.236 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 564530 COVER
2 4615276 STUD M8X20
3 4850986 FLAT ENGINE GASKET
4 504087005 FRONT C.CASE COVER
5 500321670 TIMINGGEAR HOUSIN ASSY REAR
6 98424045 FLAT ENGINE GASKET
7 98424046 FLAT ENGINE GASKET
8 99469265 SHAFT SEAL CORCOS
9 13526170 THREADED INSERT M10X1,25X20 MM
10 17094914 WASHER 8x16
11 17275410 DOWEL PIN Ø8 MM
12 16603734 HEXAGON BOLT M6X20 MM
13 17037925 HEXAGON NUT M8X1,25
14 17088471 SPRING WASHER Ø6X12 MM SP=1,2 MM
15 16605824 HEXAGON BOLT M8X35 MM
16 98489586 REAR C.CASE COVER
17 17037821 HEXAGON NUT M6X1
18 4605220 OIL NOZZLE
19 15000724 HEXAGON BOLT M8X22 MM (8.8)
20 16605734 HEXAGON BOLT M8X30 MM
22 16606124 HEXAGON BOLT M8X50 MM
23 16044924 SCREW M8X1,25X85 MM
24 16606524 HEXAGON BOLT M8X70 MM
25 4853971 BRACKET RIGHT
26 4849994 FLAT ENGINE GASKET
27 16611224 HEXAGON BOLT M12X120 MM
28 16610724 SCREW M12X1,75X70 MM
29 17095304 WASHER Ø12X24 MM
30 16746824 STUD M8X30 MM (8.8)
31 99457401 SHAFT SEAL CORCOS
32 98424384 PLATE
33 98424383 GASKET
34 4602520 PLUG
35 10297760 SEAL GASKET Ø6,2 MM
36 4819671 SUPPORT
37 4851004 FLAT ENGINE GASKET
38 15213824 HEXAGON BOLT M8X65 MM
39 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
40 16729324 STUD M8X12X20 MM
