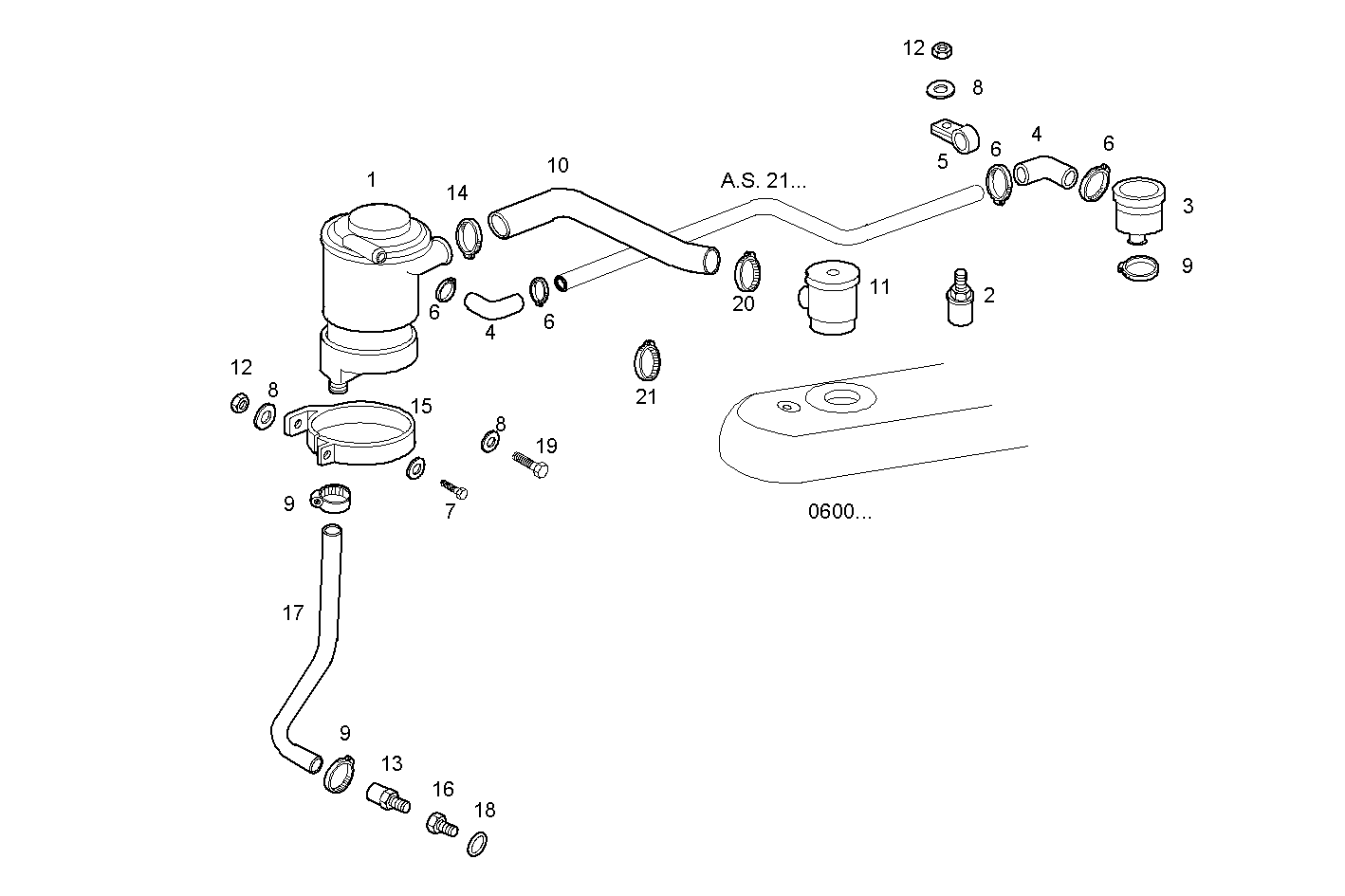

0450.204 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4858569 BREATHER
2 8009967 NUT
3 4810557 BYPASS VALVE
4 8108085 RUBBER SLEEVE
5 4033229 CLIP
6 17764591 CLIP Ø20/32 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 18088392 CLIP Ø16/25 MM
10 8021614 RUBBER SLEEVE
11 4812047 BREATHER
12 17037925 HEXAGON NUT M8X1,25
13 4616630 THREADED UNION
14 17764692 CLIP Ø25/40 MM
15 8021600 RETAINER
16 8024963 THREADED UNION
17 8024928 AIR HOSE
18 4858607 WASHER Ø12X17 MM SP=1,5 MM
19 16605424 SCREW M8X16 MM (8.8)
20 17764694 CLIP Ø25/40 MM
21 17317190 PIPE CLIP Ø24 MM
