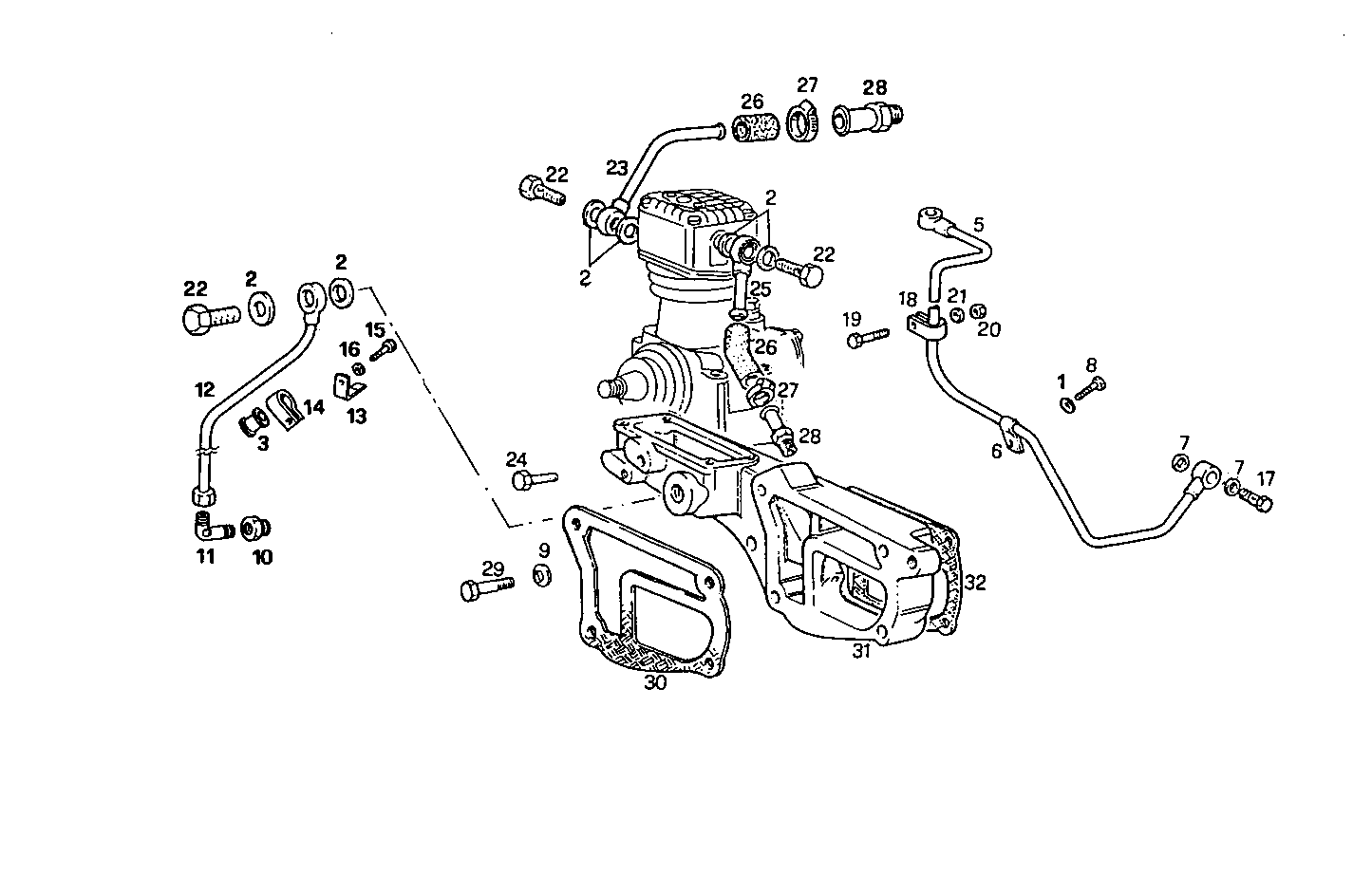

| Item |
Part number |
Description |
|
1 |
17095104 |
WASHER Ø10X21X2 MM |
|
2 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
3 |
4755964 |
RUBBER PAD |
|
4 |
4608943 |
OIL LINE |
|
5 |
8010959 |
OIL LINE |
|
6 |
4933030 |
RETAINER |
|
7 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
8 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
9 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
10 |
8008802 |
PIPE SOCKET M32X1,5/M16X1,5 |
|
11 |
8110268 |
PIPE SOCKET M16X1.5 |
|
12 |
8022328 |
OIL LINE |
|
13 |
8107409 |
RETAINER |
|
14 |
4755963 |
FASTENING BRACKET |
|
15 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
18 |
17316190 |
PIPE CLIP Ø6 MM |
|
19 |
16602124 |
SCREW M5X16 MM |
|
20 |
17037931 |
HEXAGON NUT M8X1,25 |
|
21 |
17094914 |
WASHER 8x16 |
|
22 |
4864084 |
BANJO BOLT M16X1,5 |
|
23 |
8010977 |
WATER PIPE |
|
24 |
15888721 |
HEXAGON BOLT M10X1,25X55 MM |
|
25 |
8010879 |
WATER PIPE |
|
26 |
98425477 |
WATER HOSE |
|
27 |
12179590 |
CLIP Ø14-24 MM |
|
28 |
4616630 |
THREADED UNION |
|
29 |
11343721 |
HEXAGON BOLT M10X65 MM |
|
30 |
98400776 |
FLAT ENGINE GASKET |
|
31 |
4601828 |
SUPPORT |
|
32 |
98400779 |
FLAT ENGINE GASKET |
