8065E00.00A004

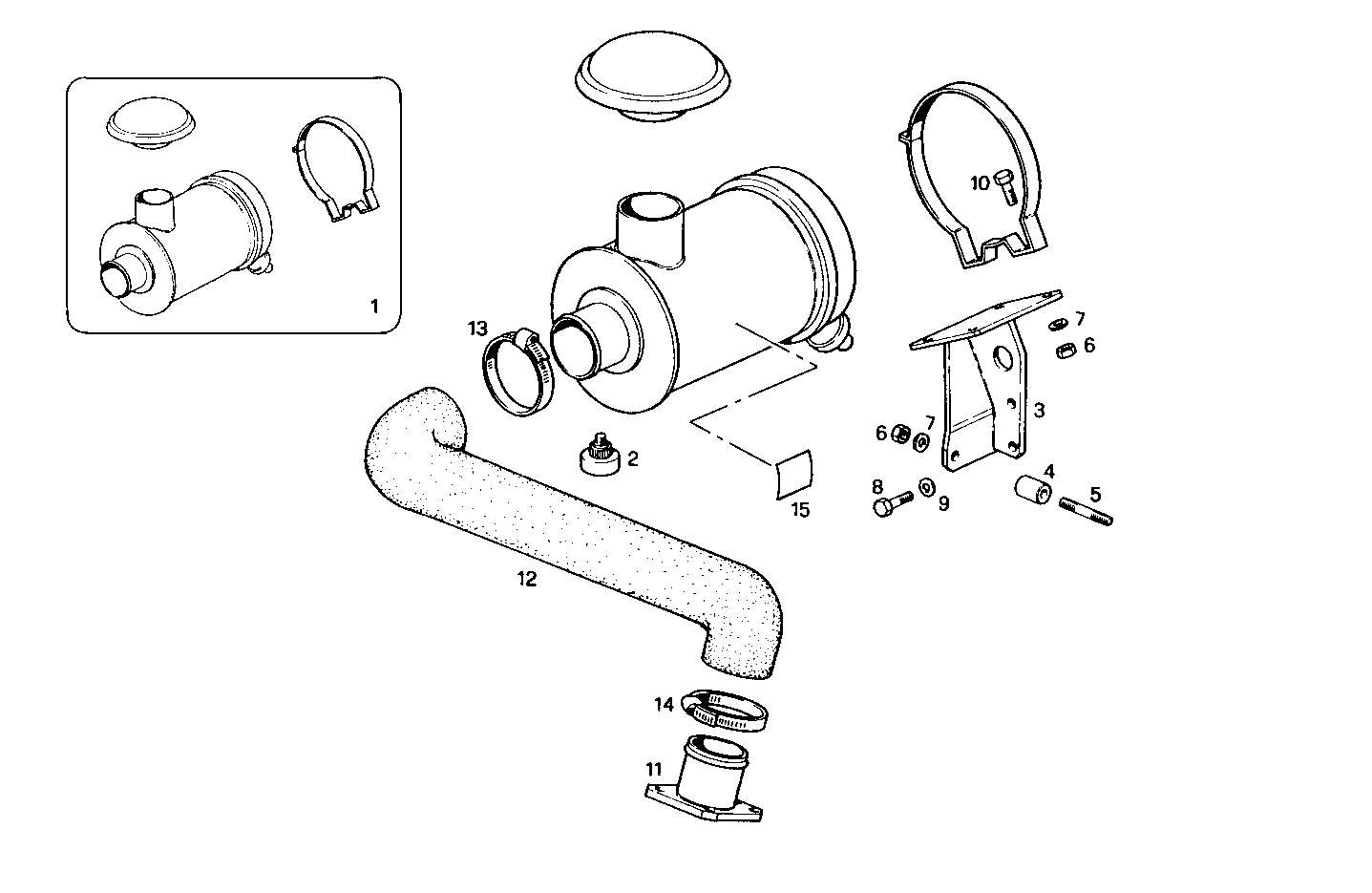

2210.049 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8032713 | AIR CLEANER ASSY |
| 2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 8017251 | SUPPORT |
| 4 | 8104719 | SPACING BAR |
| 5 | 16729530 | STUD M8X30 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 8 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 9 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 10 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 11 | 4936561 | AIR MANIFOLD |
| 12 | 8017247 | FILTER HOSE |
| 13 | 17765191 | CLIP Ø70/90 MM |
| 14 | 17765291 | CLIP Ø80/100 MM |
| 15 | 8016393 | ADHESIVE/STICKER |
