8065LE00.00

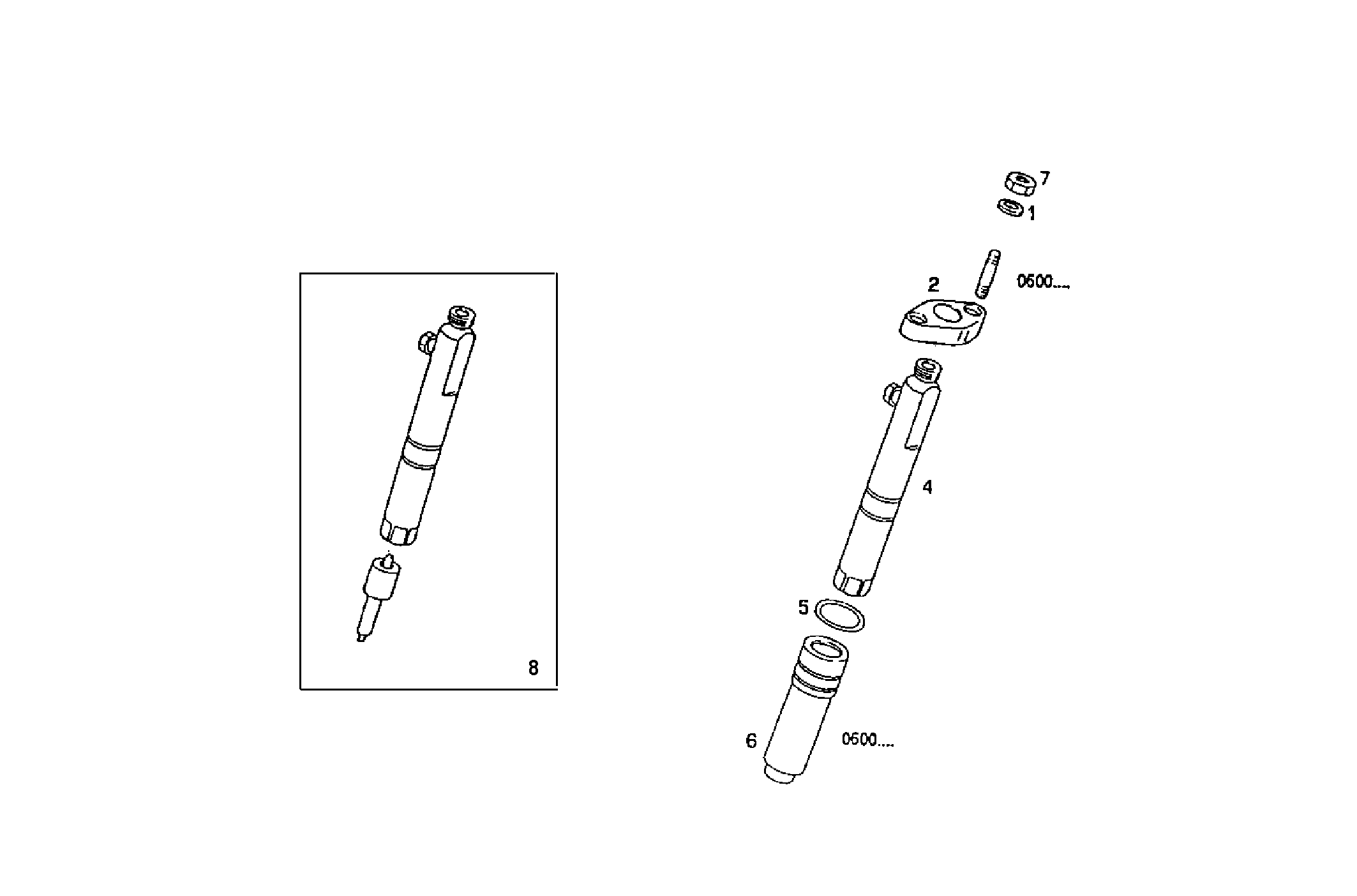

1420.103 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 771326 | WASHER Ø11,5 MM |
| 2 | 4780612 | FASTENING BRACKET |
| 4 | 4791124 | NOZZLE HOLDER ASSY BOSCH |
| 5 | 14453589 | O-RING Ø18,77 MM SP=1,78 MM |
| 6 | 99469341 | FUEL NOZZLE BOSCH |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 500307714 | NOZZLE ASSY BOSCH |
