8065LE00.00

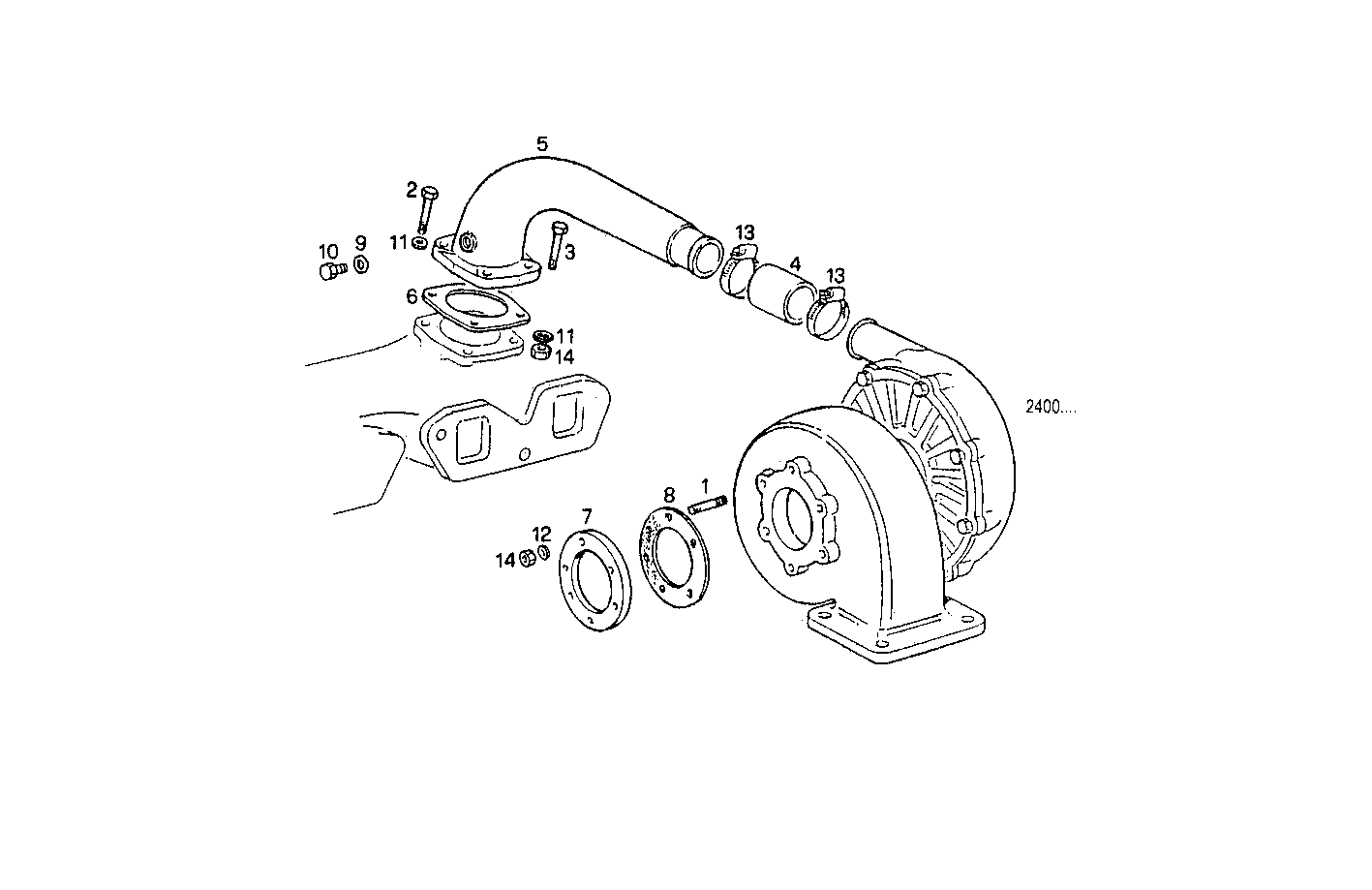

2420.173 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16729424 | STUD M8X1,25X25 |
| 2 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 3 | 16625734 | HEXAGON BOLT M8X35 |
| 4 | 98421377 | RUBBER SLEEVE Ø51 MM |
| 5 | 4754495 | INTAKE ELBOW |
| 6 | 98400790 | FLAT ENGINE GASKET |
| 7 | 8113654 | FLANGE |
| 8 | 8009733 | GASKET |
| 9 | 16508460 | WASHER 22x27x1,5 |
| 10 | 16992611 | THREADED PLUG M22X1,5 |
| 11 | 17094914 | WASHER 8x16 |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 98490783 | CLIP Ø55-65 MM |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
