8065LE00.00A002

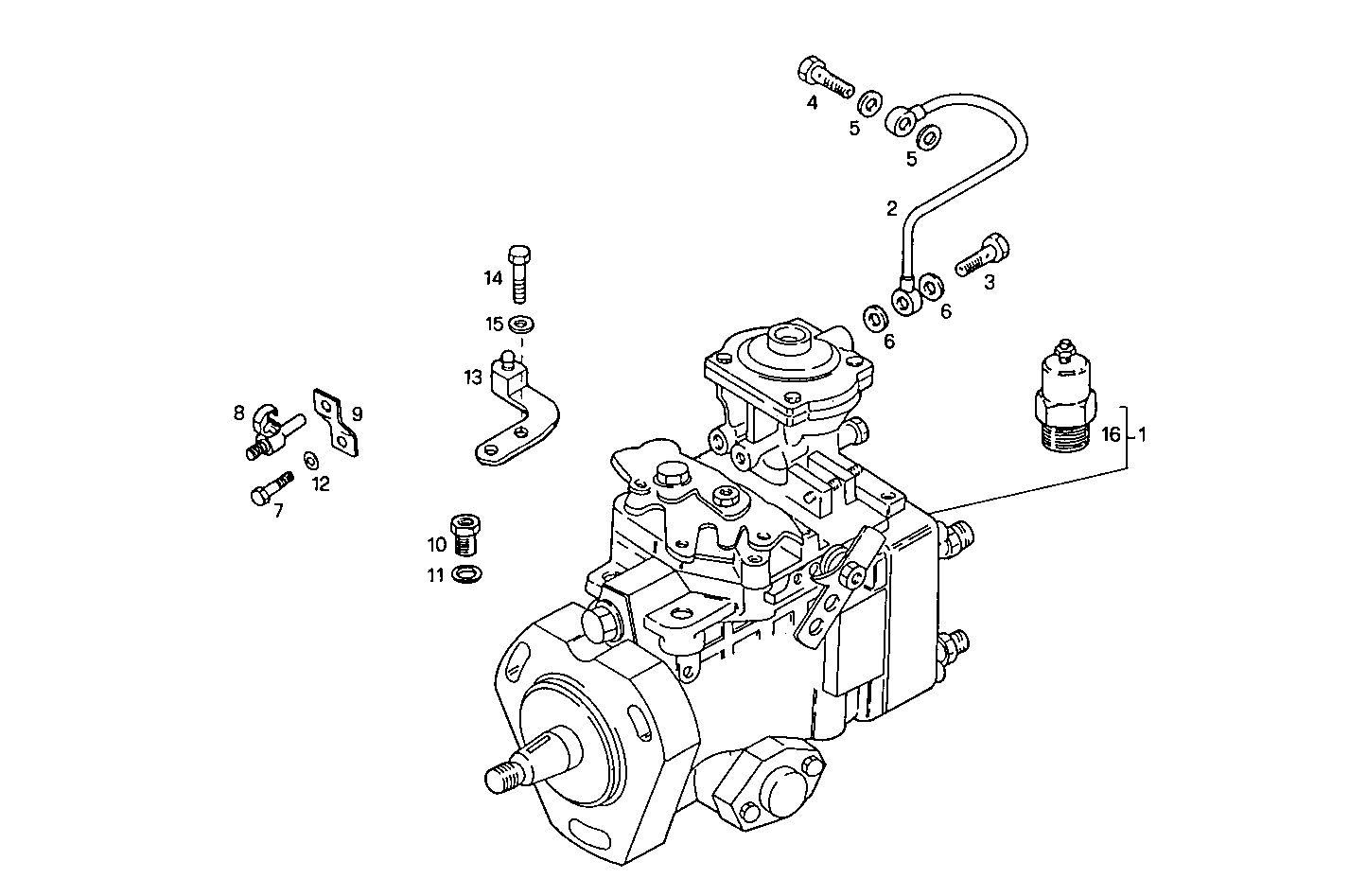

1400.299 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 500362695 DISTRIB.INJ.PUMP ASSY
2 4848475 FUEL LINE
3 4753761 SCREW CONNECTOR
4 4864081 SCREW CONNECTOR
5 10279460 SEAL GASKET Ø10X16 MM SP=0,5
6 10262760 SEAL GASKET Ø8,2 MM
7 15970521 HEXAGON BOLT M10X20 MM
8 17868280 SPRING CLAMP L=30 MM
9 99481827 FASTENING BRACKET
10 4802434 THREADED UNION M12X1,5
11 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 98445678 LEVER
14 16603624 HEXAGON BOLT M6X16 MM (8.8)
15 17798174 SPRING WASHER Ø6,1X11,8 MM
16 8100253 ELECTROVALVE 12V
