8065M12.00

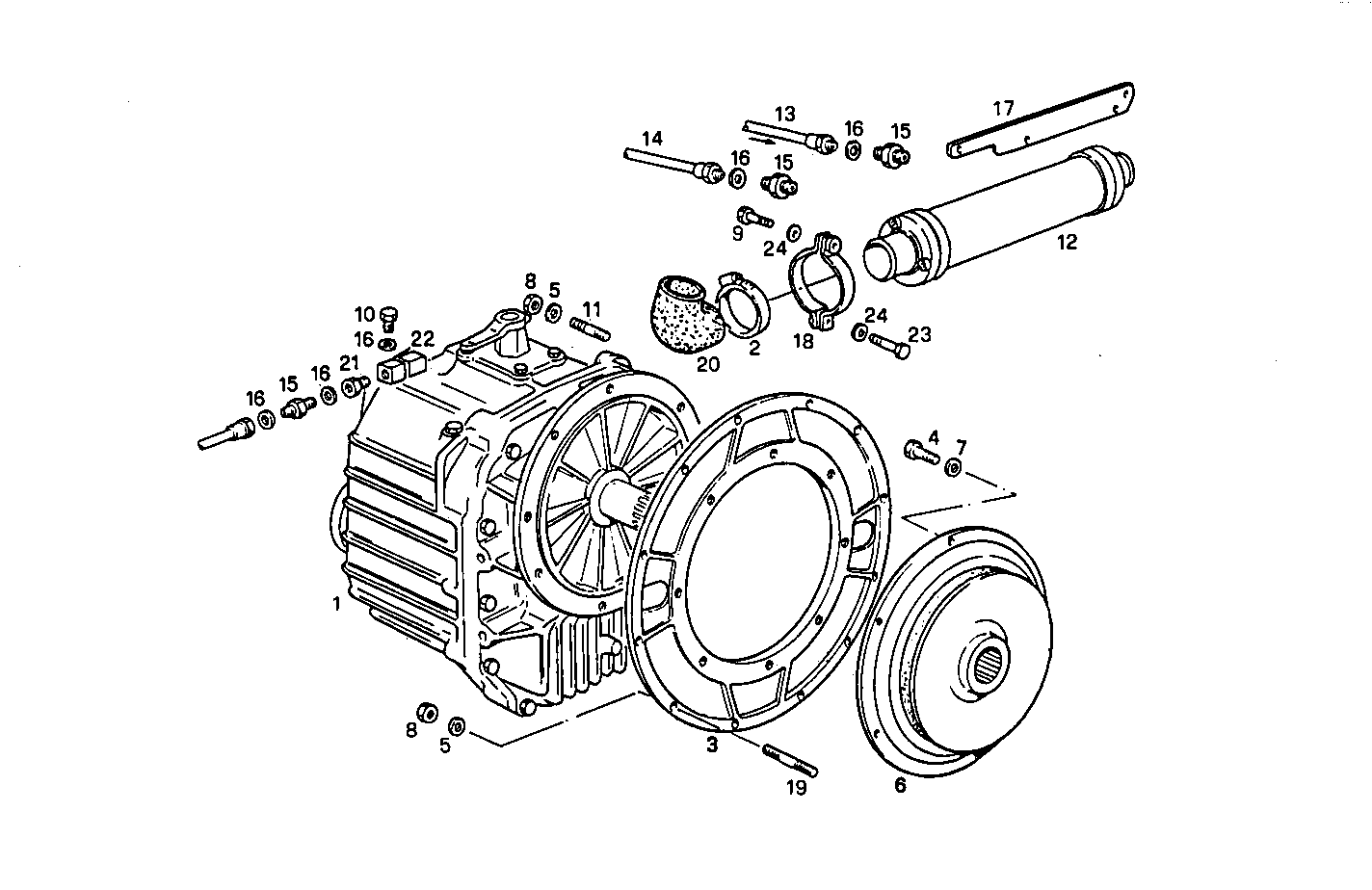

A51790018/01 MARINE GEAR HURTH HSW 630 A - ratio 2.04:1

Iveco/FPT MARINE GEAR HURTH HSW 630 A

Item Part number Description
1 8110096 MARINE GEAR 2,04:1
2 17764793 CLIP Ø32/50 MM
3 8019421 FLANGE
4 11306921 SCREW M10X1,25X30
5 17090174 SPRING WASHER Ø10X20 MM
6 8019065 FLEXPLATE
7 17095004 WASHER Ø10X18X2 MM
8 17038221 HEXAGON NUT M10
9 16605624 HEXAGON BOLT M8X25 MM (8.8)
10 10183317 LOCK PLUG M16X1,5
11 13546321 STUD M10X25 MM
12 8016304 OIL/WATER HEAT EXCHANGER ASSY
13 8105855 OIL HOSE
14 8105856 OIL LINE
15 4935465 PIPE SOCKET
16 10257060 SEAL GASKET Ø16X22 MM SP=1,5 MM
17 8016558 RETAINER [from 07-93]
18 5116798 CLIP ASSY [from 06-93]
19 13449521 STUD M10X15X25
20 8102099 RUBBER SLEEVE
21 8105826 PIPE SOCKET
22 8107173 PIPE SOCKET
23 16605734 HEXAGON BOLT M8X30 MM
24 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
