8065M12.21

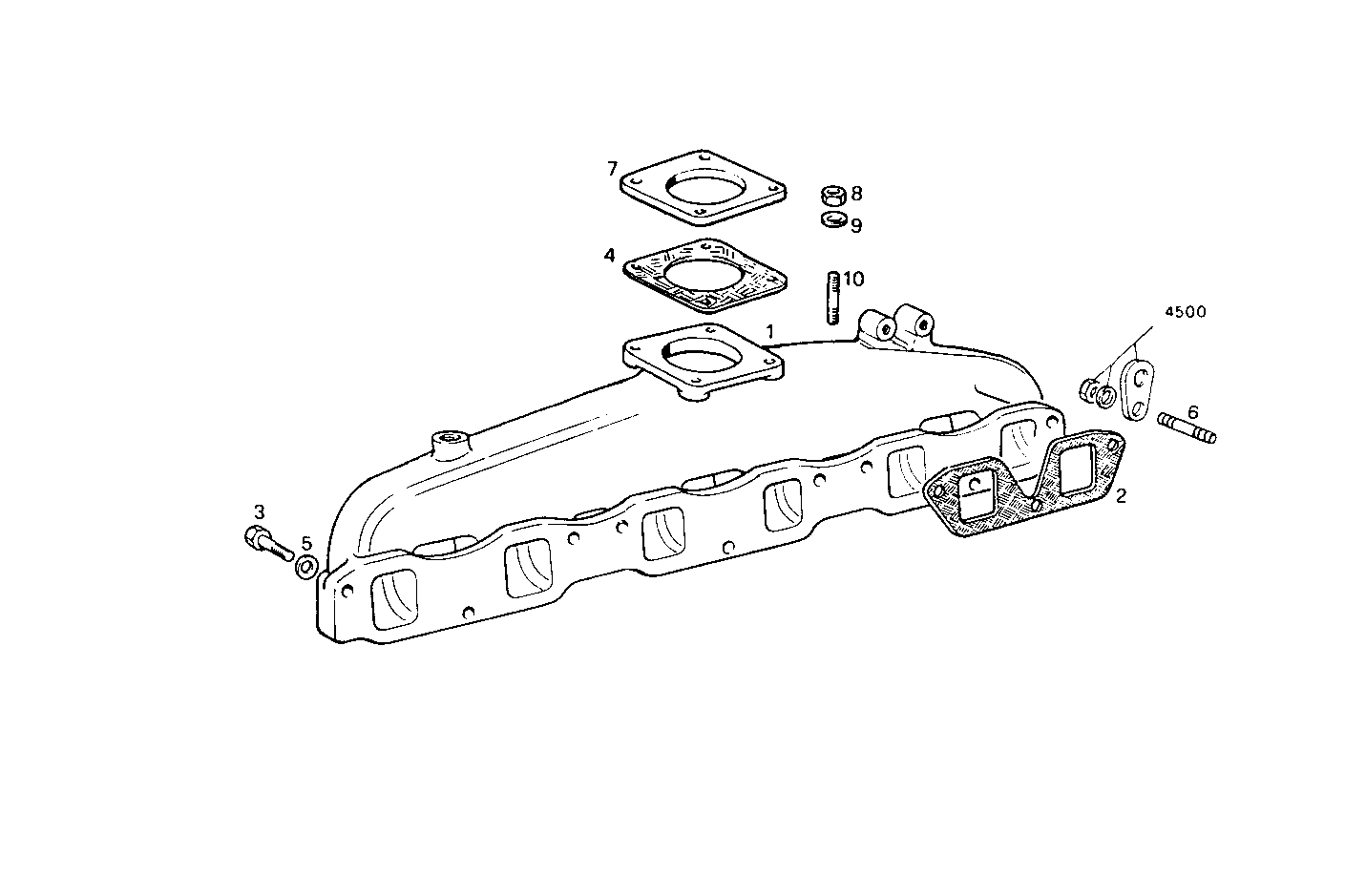

A05080001 INTAKE MANIFOLD - lateral central inlet
| Item | Part number | Description |
|---|---|---|
| 1 | 8024265 | INTAKE ELBOW |
| 2 | 4851921 | INTAKE ELBOW GASK. |
| 3 | 16043521 | SCREW M8X22 |
| 4 | 98400790 | FLAT ENGINE GASKET |
| 5 | 17094914 | WASHER 8x16 |
| 6 | 16746624 | STUD M8X20 MM (8.8) |
| 7 | 8024266 | COVER |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 17094701 | WASHER Ø6X12 MM |
| 10 | 16729324 | STUD M8X12X20 MM |
