8065SE00.00A801

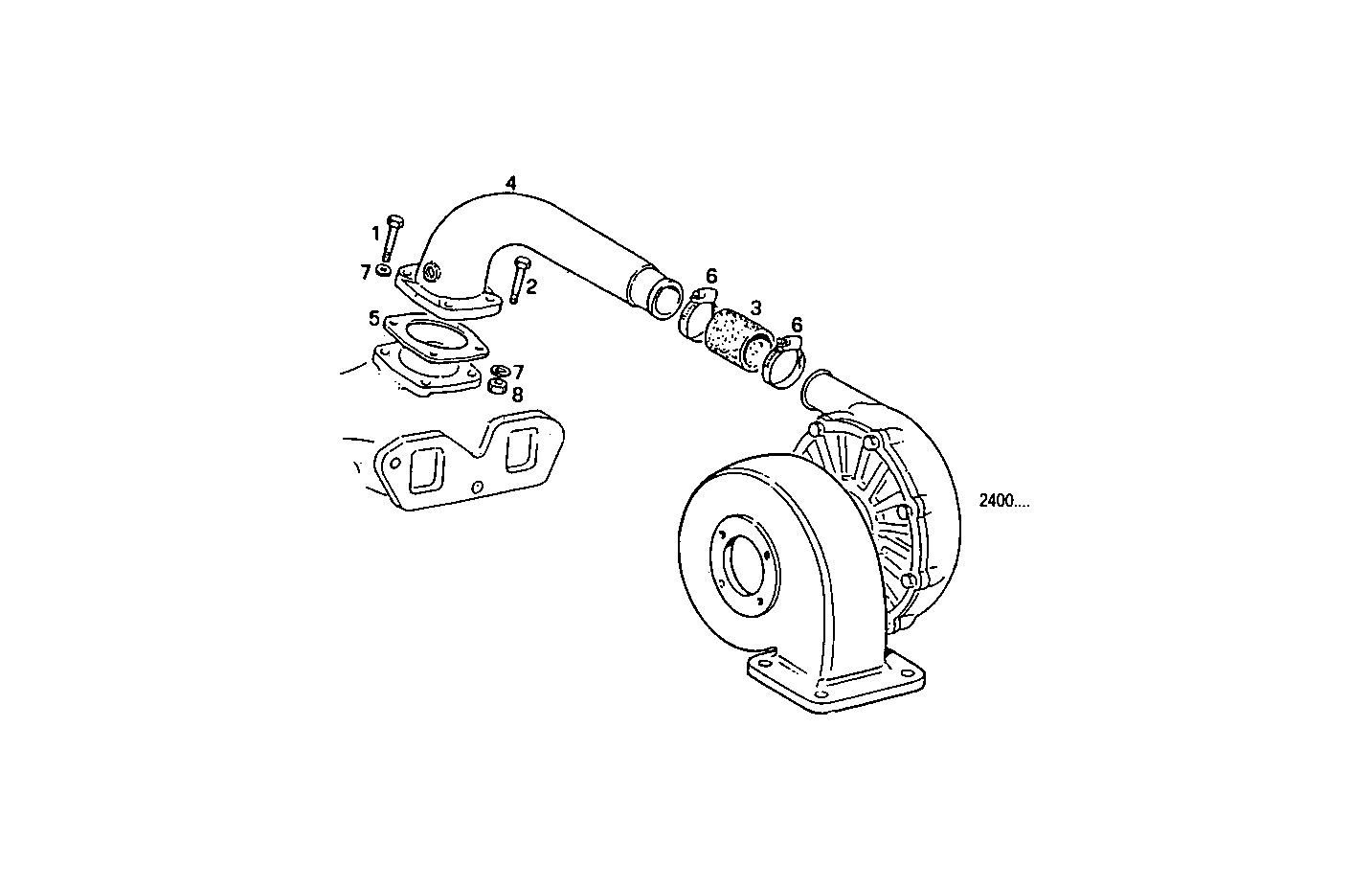

2420.129 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16605824 | HEXAGON BOLT M8X35 MM |
| 2 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 3 | 98421377 | RUBBER SLEEVE Ø51 MM |
| 4 | 500325411 | AIR PIPE/DUCT |
| 5 | 98400790 | FLAT ENGINE GASKET |
| 6 | 98490783 | CLIP Ø55-65 MM |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
