8065SE00.00A801

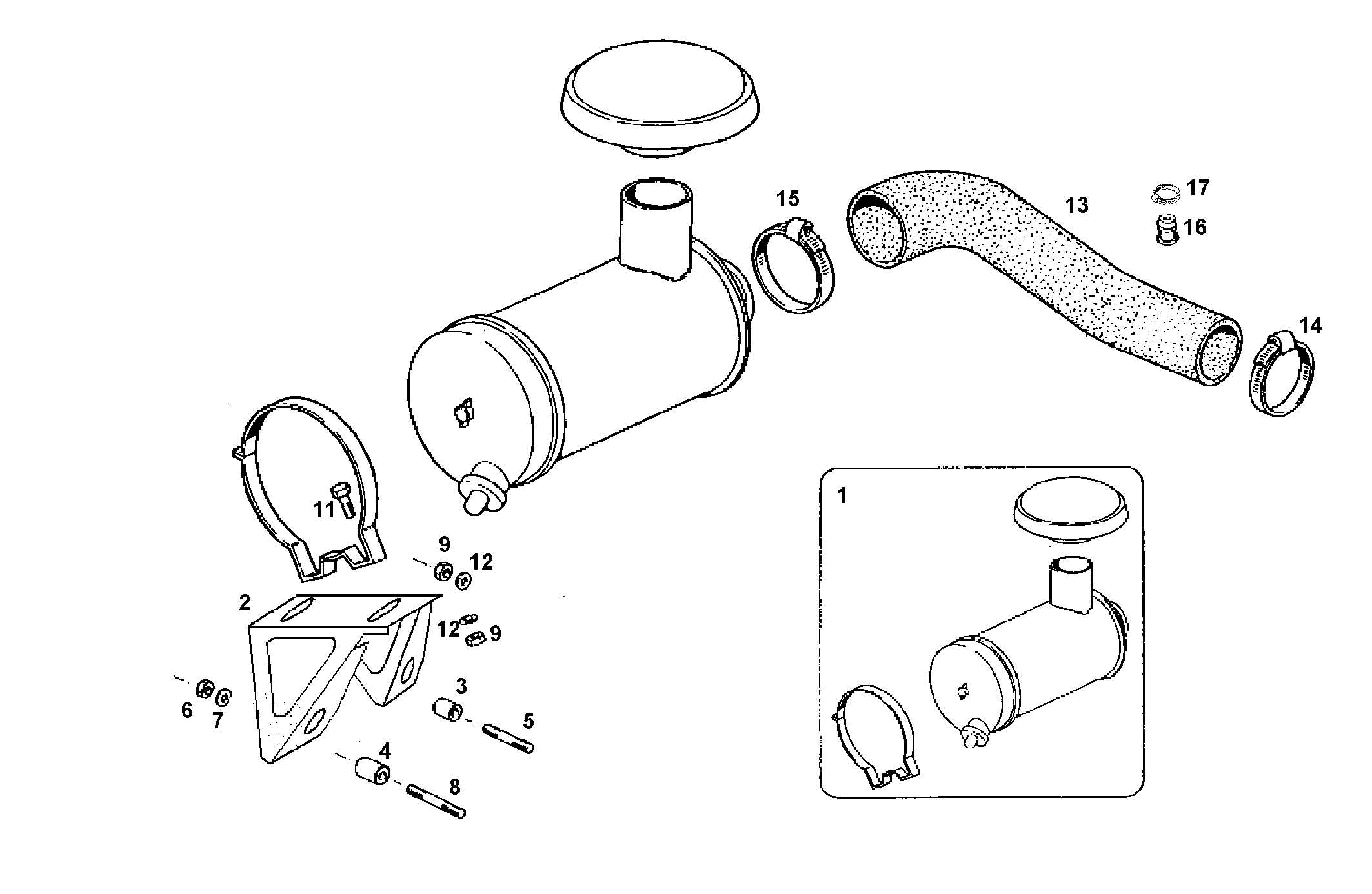

A21220006 DRY AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8031857 | AIR CLEANER VIRGIS |
| 2 | 503110073 | SUPPORT |
| 3 | 8015452 | SPACING BAR |
| 4 | 8015453 | SPACING BAR |
| 5 | 16729524 | STUD M8X1,25X30 |
| 6 | 17038131 | HEXAGON NUT M10 |
| 7 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 8 | 16731524 | STUD M8X40 MM |
| 9 | 17037921 | HEXAGON NUT M8X1,25 |
| 11 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 8020620 | RUBBER SLEEVE |
| 14 | 17765191 | CLIP Ø70/90 MM |
| 15 | 17765391 | CLIP Ø90/110 MM |
| 16 | 8033284 | PLUG |
| 17 | 18088493 | CLIP |
