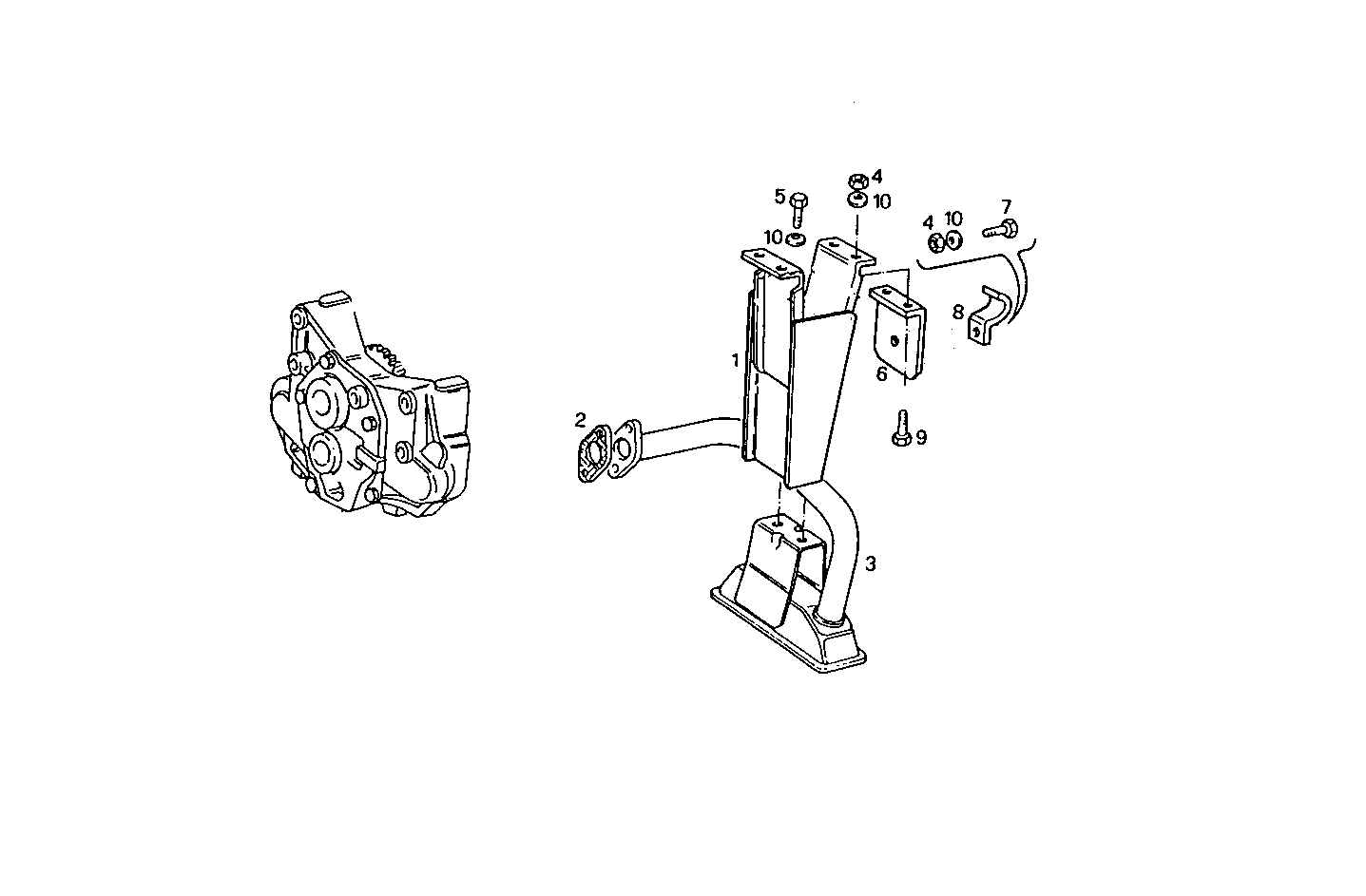

A01050020/04 OIL SUMP - max longitudinal inclination 45°

Iveco/FPT OIL SUMP

Item Part number Description
1 8112374 RETAINER
2 4852561 FLAT ENGINE GASKET
3 8112401 SUCTION STRAINER
4 17157021 NUT M8X1,25
5 16043224 SCREW M8X16 MM
6 8112423 RETAINER
7 16043521 SCREW M8X22
8 4775924 RETAINER
9 16605524 HEXAGON BOLT M8X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
