8065SRE10.00

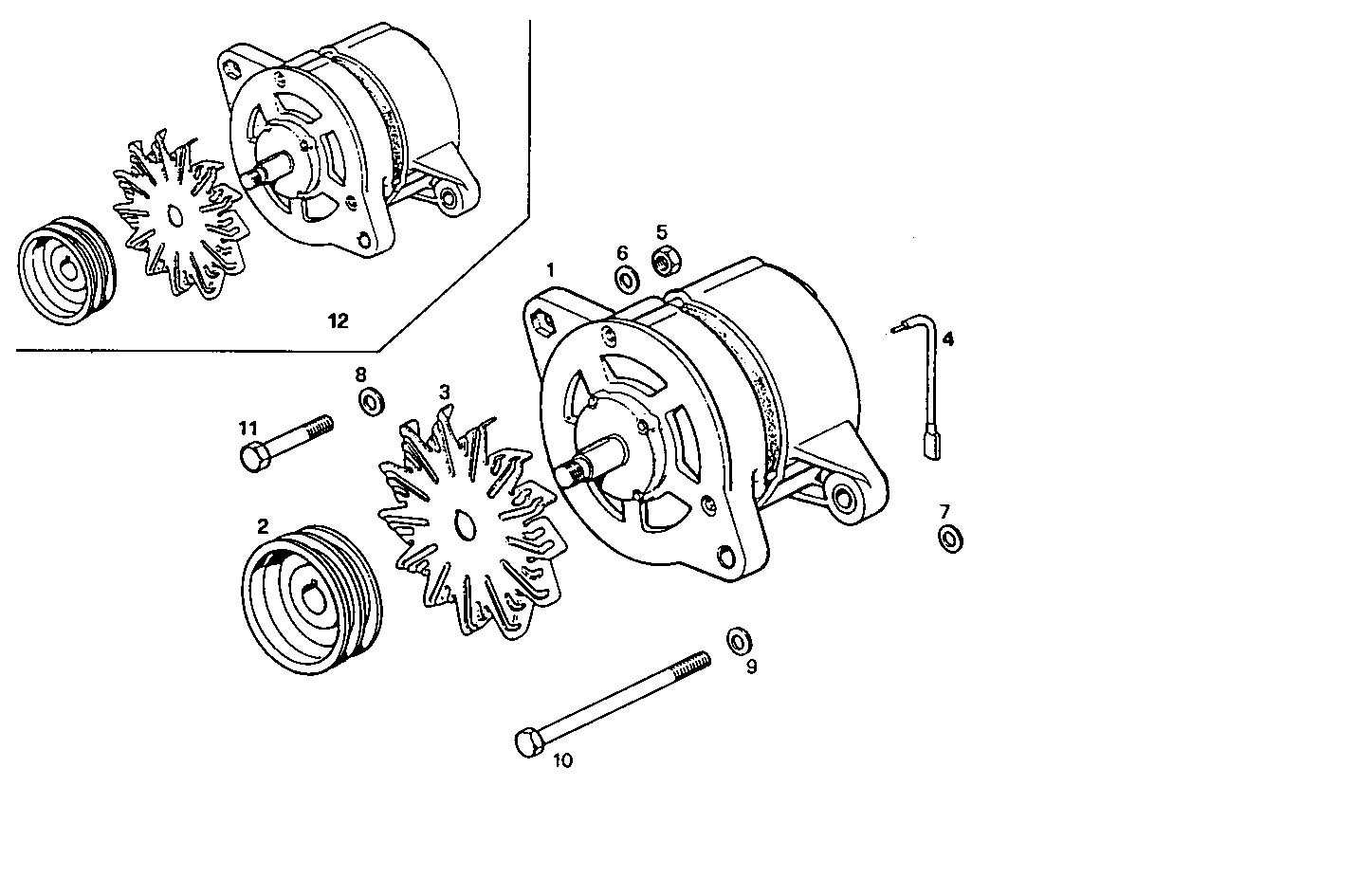

A14030014 SELF-REGULATED ALTERNATOR - 12V 85A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 99448466 | ALTERNATOR ASSY BOSCH |
| 2 | 8027417 | PULLEY |
| 3 | 4757196 | GENERATOR FAN BOSCH |
| 4 | 8105654 | WIRE/CABLE |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 17095304 | WASHER Ø12X24 MM |
| 10 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 11 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 12 | 8027450 | ALTERNATOR ASSY MARELLI |
