8065SRE10.00

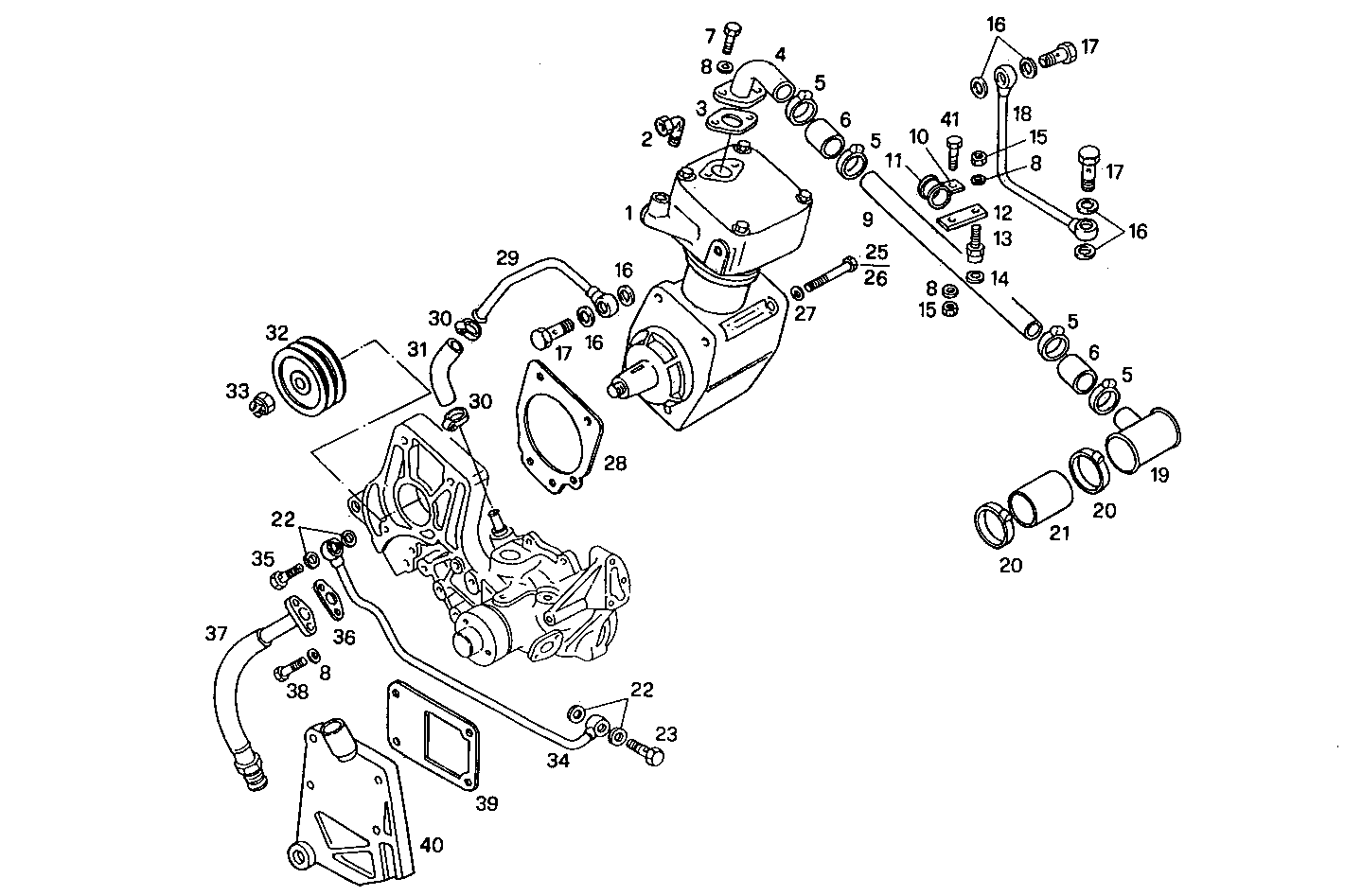

A18080003/01 AIR COMPRESSOR - if hydraulic pump not fitted - 221cc

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 8016550 AIR COMPRESSOR ASSY WABCO
2 8110267 PIPE SOCKET
3 98418772 FLAT ENGINE GASKET
4 8100116 CONNECTOR
5 17764591 CLIP Ø20/32 MM
6 17738187 WATER HOSE
7 16605524 HEXAGON BOLT M8X20 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 8016541 WATER PIPE
10 4760226 FASTENING BRACKET
11 4747140 RUBBER PAD
12 4929652 RETAINER
13 8009967 NUT
14 98416134 WASHER [from 555940]
15 17037931 HEXAGON NUT M8X1,25
16 98474309 WASHER Ø16X24 MM SP=1,9 MM
17 4864084 BANJO BOLT M16X1,5
18 98425218 WATER PIPE Ø12 MM
19 8100075 WATER PIPE
20 17765091 CLIP Ø60/80 MM
21 17746687 RUBBER SLEEVE
22 98474305 WASHER Ø10X17 MM SP=2,3
23 4864080 SCREW CONNECTOR M10X1,25
25 15972221 SCREW M10X1,25X120
26 15970921 HEXAGON BOLT M10X1,25X35 MM
27 17095004 WASHER Ø10X18X2 MM
28 99445563 FLAT ENGINE GASKET
29 8016543 WATER PIPE
30 17764491 CLIP Ø16/25 MM
31 98425477 WATER HOSE
32 98419182 COMPRESSOR PULLEY
33 98413776 NUT
34 98424575 OIL LINE
35 98406316 BANJO BOLT M10X1,25
36 4842490 FLAT ENGINE GASKET
37 98424277 OIL LINE
38 16605624 HEXAGON BOLT M8X25 MM (8.8)
39 98444018 FLAT ENGINE GASKET
40 8025855 COVER
41 16605424 SCREW M8X16 MM (8.8)
