8065SRE10.00A002

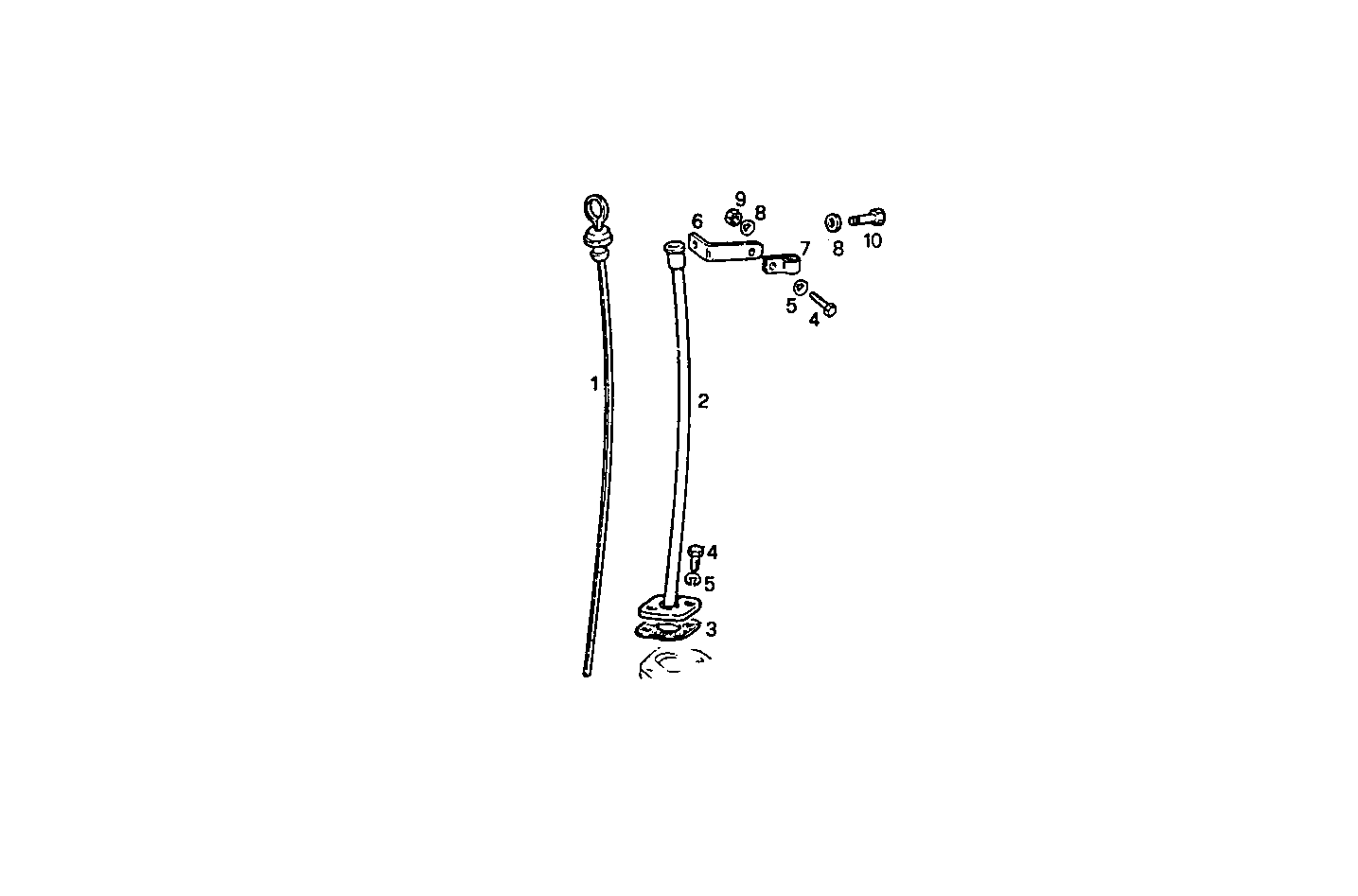

A41020009 LONG OIL DIPSTICK RIGHT SIDE
| Item | Part number | Description |
|---|---|---|
| 1 | 4843492 | OIL DIPSTICK |
| 2 | 4843490 | ROD GUIDE |
| 3 | 98400785 | GASKET |
| 4 | 16605524 | HEXAGON BOLT M8X20 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 8101336 | RETAINER |
| 7 | 8100228 | CLIP |
| 8 | 17094914 | WASHER 8x16 |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
