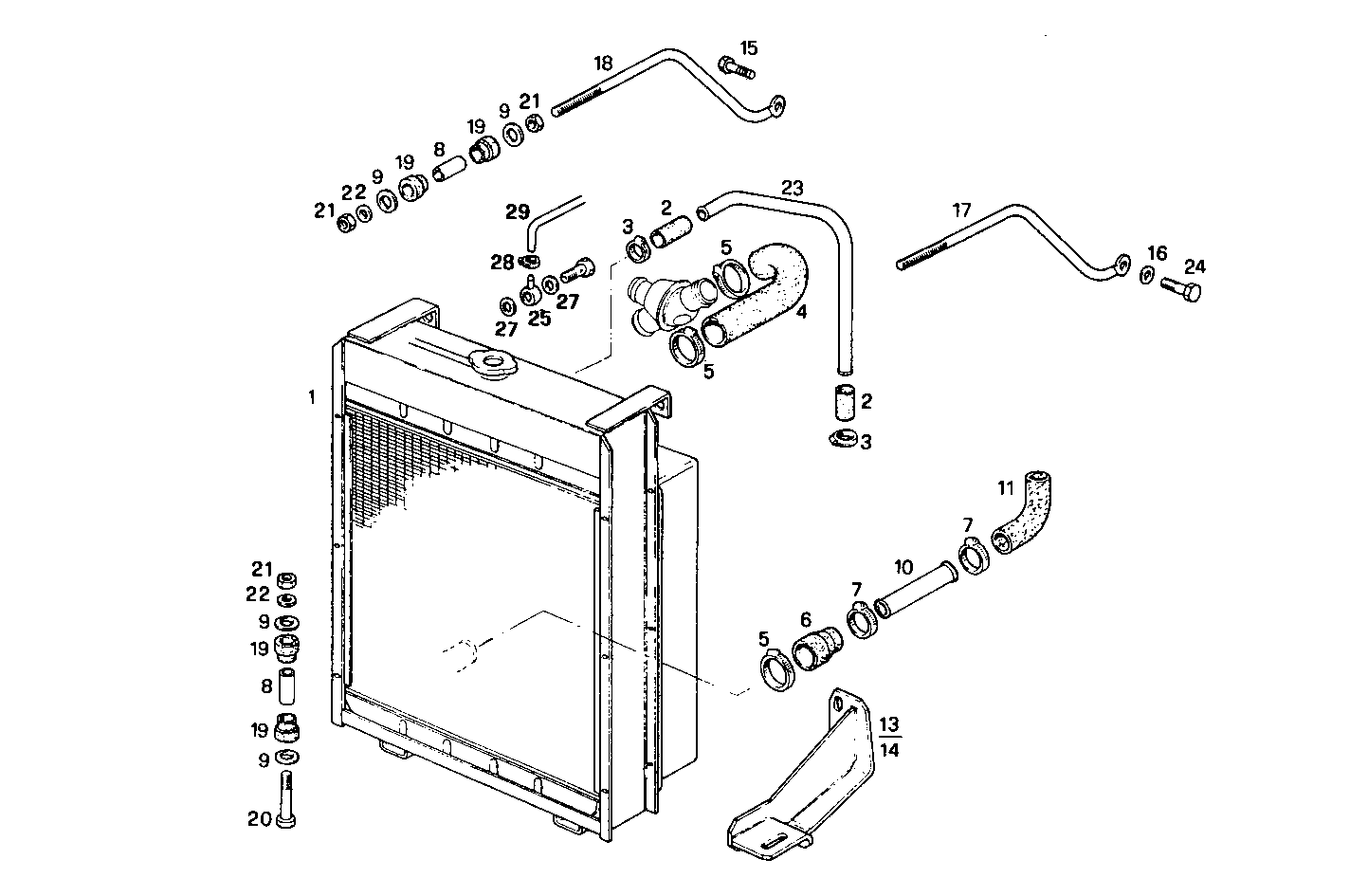

| Item |
Part number |
Description |
|
1 |
8013489 |
WATER RADIATOR ASSY |
|
2 |
17739187 |
RUBBER SLEEVE |
|
3 |
17764592 |
CLIP Ø20/32 MM |
|
4 |
8013497 |
RUBBER SLEEVE |
|
5 |
17764891 |
CLIP Ø40/60 MM |
|
6 |
8813238 |
WATER HOSE |
|
7 |
17764791 |
CLIP Ø32/50 MM |
|
8 |
741571 |
SPACING BAR Ø10X17 MM SP=2,3 |
|
9 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
10 |
8026776 |
WATER PIPE |
|
11 |
8016662 |
RUBBER SLEEVE |
|
13 |
8010789 |
SUPPORT RIGHT |
|
14 |
8010787 |
SUPPORT LEFT |
|
15 |
16691024 |
CYLIND-HEAD SCREW M8X45 MM |
|
16 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
17 |
8013501 |
TIE ROD RIGHT |
|
18 |
8012288 |
TIE ROD LEFT |
|
19 |
741569 |
RUBBER LUG |
|
20 |
16610624 |
SCREW M12X1,75 |
|
21 |
17038421 |
HEXAGON NUT M12 (8) |
|
22 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
23 |
8027023 |
WATER PIPE |
|
24 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
25 |
98416591 |
SWIVEL COUPLING |
|
26 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
27 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
28 |
18087993 |
CLIP Ø8/16 MM |
|
29 |
19056687 |
RUBBER HOSE Ø7,5 MM |
