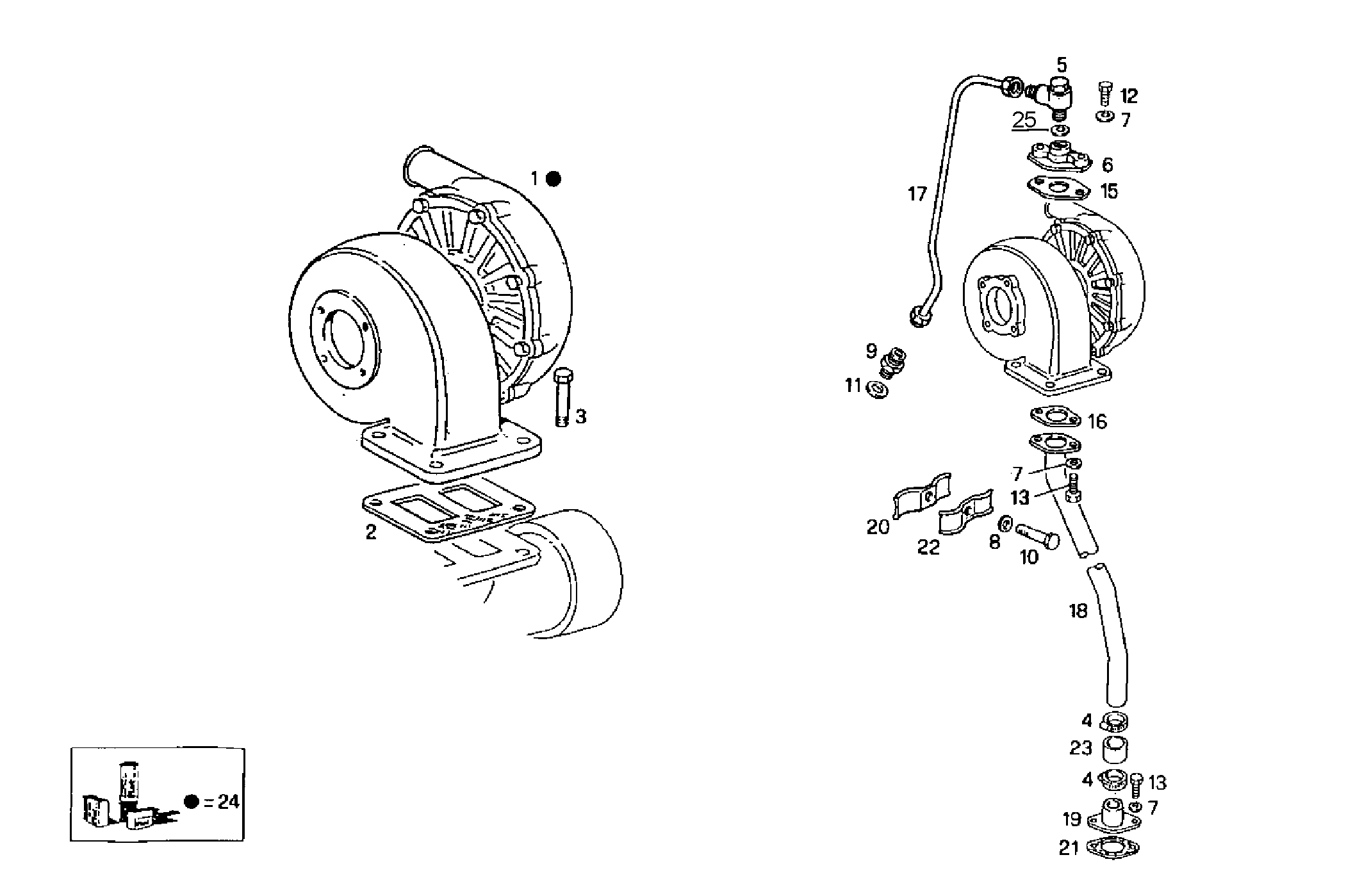

| Item |
Part number |
Description |
|
1 |
500303301 |
TURBOCHARGER ASSY K.K.K. |
|
2 |
98428396 |
FLAT ENGINE GASKET |
|
3 |
98491312 |
HEXAGON BOLT |
|
4 |
17764592 |
CLIP Ø20/32 MM |
|
5 |
61608071 |
PIPE SOCKET |
|
6 |
61689705 |
FLANGED SOCKET |
|
7 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
8 |
17088474 |
WASHER Ø6X12 MM |
|
9 |
16500311 |
PIPE SOCKET M16X1,5/M18X1,5 |
|
10 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
11 |
16508260 |
WASHER Ø16X20 MM |
|
12 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
13 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
15 |
98415922 |
FLAT ENGINE GASKET |
|
16 |
98415923 |
FLAT ENGINE GASKET |
|
17 |
8018924 |
OIL LINE K.K.K. |
|
18 |
500336313 |
OIL LINE |
|
19 |
4754153 |
FLANGED SOCKET |
|
20 |
4755435 |
RETAINER |
|
21 |
98401046 |
FLAT ENGINE GASKET |
|
22 |
4755436 |
RETAINER |
|
23 |
98420478 |
RUBBER SLEEVE |
|
24 |
8092490 |
KIT-TURBOCHARGER K.K.K. |
|
25 |
98474308 |
SEAL GASKET Ø14X22 MM |
