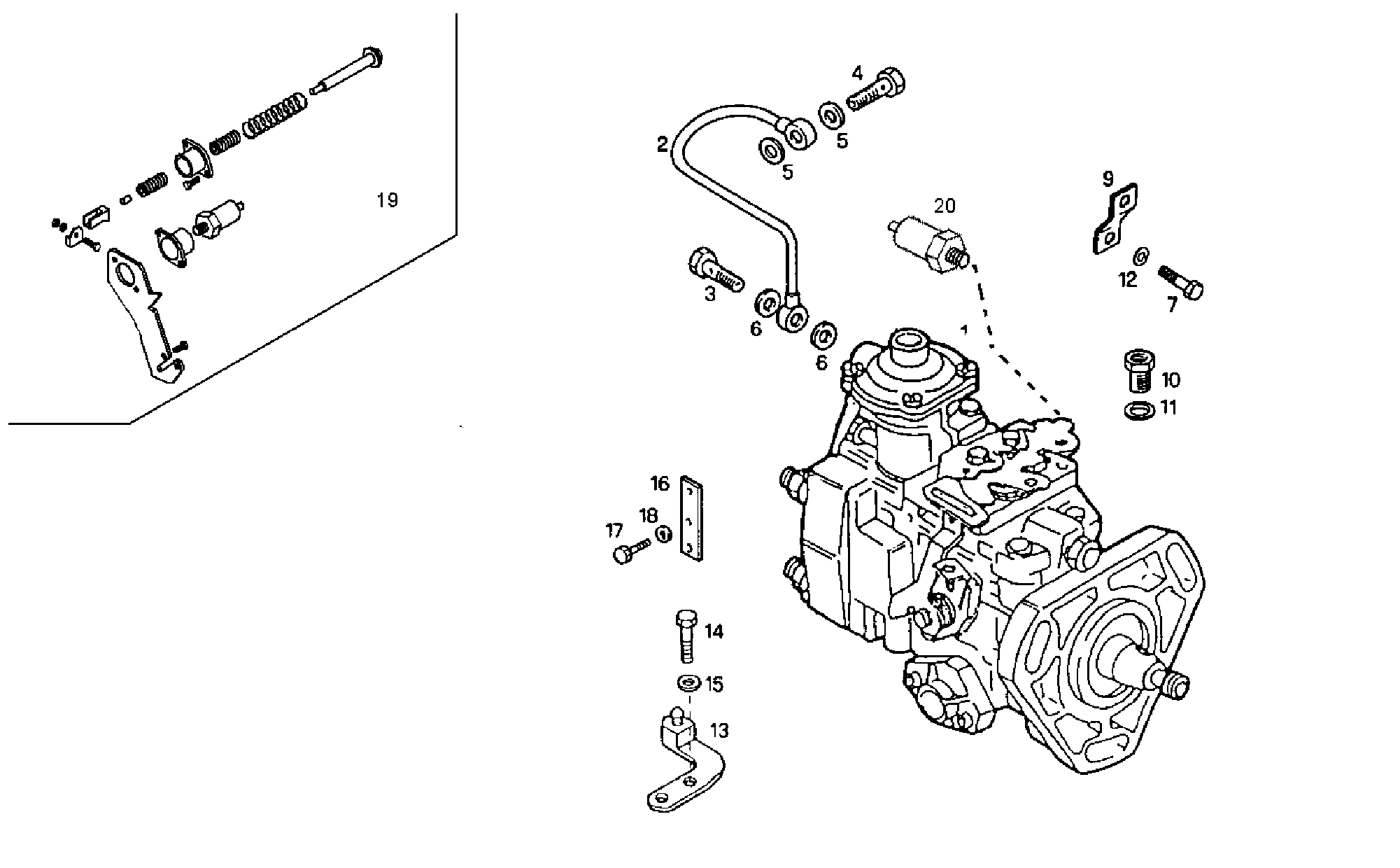

| Item |
Part number |
Description |
|
1 |
8025980 |
DISTRIB.INJ.PUMP ASSY |
|
2 |
8025974 |
AIR PIPE/DUCT |
|
3 |
4753761 |
SCREW CONNECTOR |
|
4 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
5 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
6 |
10262760 |
SEAL GASKET Ø8,2 MM |
|
7 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
9 |
99481827 |
FASTENING BRACKET |
|
10 |
4802434 |
THREADED UNION M12X1,5 |
|
11 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
13 |
98445678 |
LEVER |
|
14 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
15 |
17798174 |
SPRING WASHER Ø6,1X11,8 MM |
|
16 |
8024920 |
RETAINER |
|
18 |
17088474 |
WASHER Ø6X12 MM |
|
19 |
8094611 |
SETTING DEVICE |
|
20 |
93160151 |
TRANSMITTER KSB |
