8065SRU26.04A581

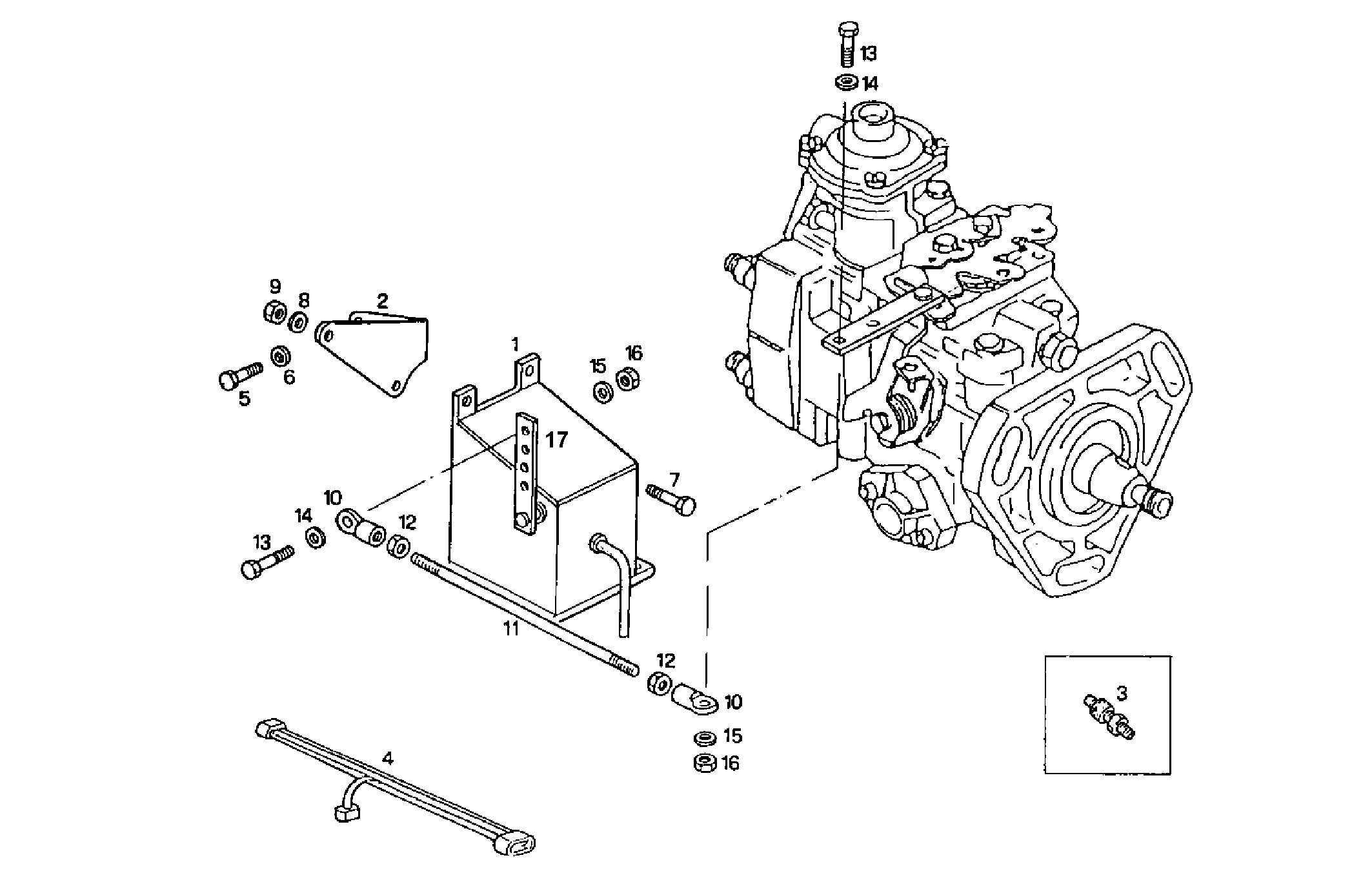

2600.002 ELECTRONIC SPEED GOVERNOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8018971 | ENGINE ACTUATOR ASSY |
| 2 | 8024921 | RETAINER |
| 3 | 8018673 | PICK-UP |
| 4 | 8018968 | ENGINE HARNESS |
| 5 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 6 | 17091074 | WASHER Ø12X24X2,8 MM |
| 7 | 16605734 | HEXAGON BOLT M8X30 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 4934541 | BRACE/STRUT |
| 11 | 8823237 | TIE ROD |
| 12 | 17037821 | HEXAGON NUT M6X1 |
| 13 | 16603824 | SCREW M6X25 |
| 14 | 17094714 | WASHER Ø6,4X12 MM |
| 15 | 17088474 | WASHER Ø6X12 MM |
| 16 | 17152721 | NUT M6 |
| 17 | 8031536 | LEVER |
