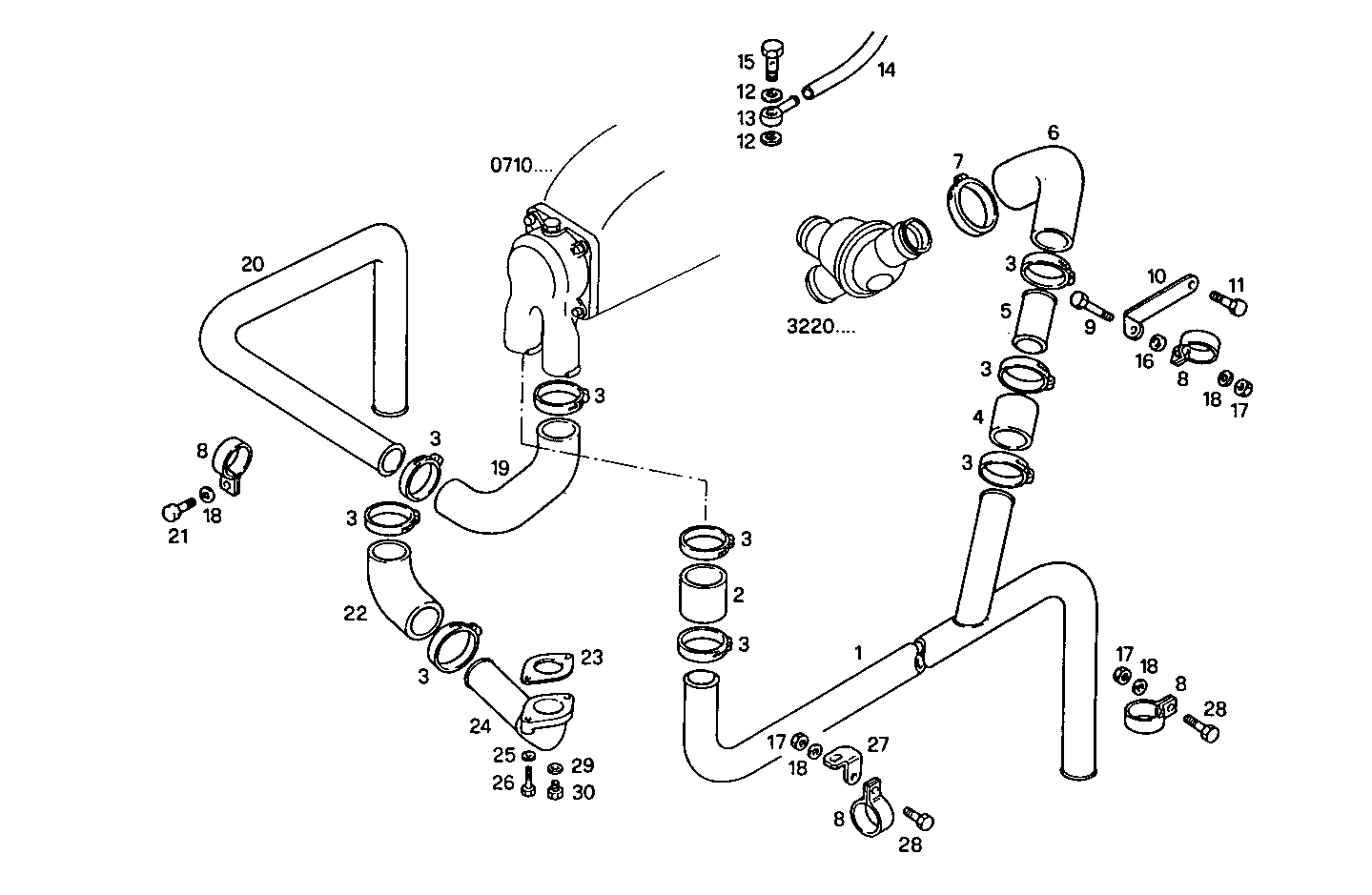

| Item |
Part number |
Description |
|
1 |
8026667 |
WATER PIPE |
|
2 |
8017516 |
WATER HOSE |
|
3 |
17764791 |
CLIP Ø32/50 MM |
|
4 |
17742887 |
RUBBER SLEEVE |
|
5 |
8016529 |
WATER PIPE |
|
6 |
98447313 |
WATER HOSE Ø45 MM/Ø38 MM |
|
7 |
17764891 |
CLIP Ø40/60 MM |
|
8 |
4936741 |
CLIP |
|
9 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
|
10 |
8110973 |
RETAINER |
|
11 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
12 |
4858606 |
GASKET Ø10X14X1 MM |
|
13 |
98405463 |
PIPE SOCKET |
|
14 |
19056687 |
RUBBER HOSE Ø7,5 MM |
|
15 |
4864079 |
SCREW CONNECTOR M10X1 |
|
16 |
8101581 |
SPACING BAR |
|
17 |
17038121 |
HEXAGON NUT M10 |
|
18 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
19 |
8018455 |
WATER HOSE |
|
20 |
8025839 |
WATER PIPE |
|
21 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
22 |
8102099 |
RUBBER SLEEVE |
|
23 |
4779623 |
FLAT ENGINE GASKET |
|
24 |
8024278 |
WATER PIPE |
|
25 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
26 |
16043521 |
SCREW M8X22 |
|
27 |
8107409 |
RETAINER |
|
28 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
30 |
16992111 |
THREADED PLUG M10X1 |
