8065SRU26.04A581

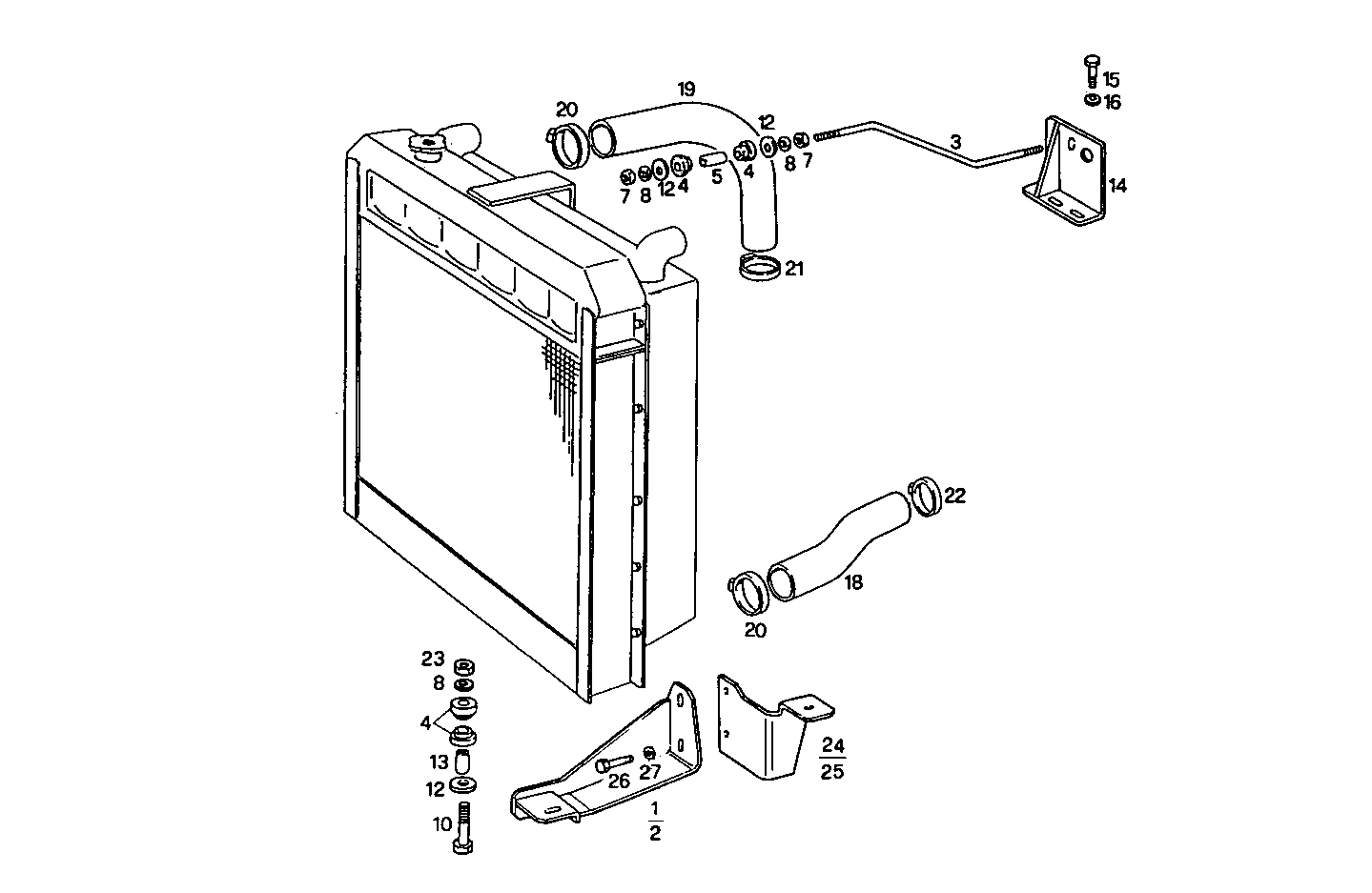

3300.019/02 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8008619 SUPPORT LEFT
2 8008618 SUPPORT RIGHT
3 8113317 TIE ROD
4 741569 RUBBER LUG
5 741571 SPACING BAR Ø10X17 MM SP=2,3
6 8090977 KIT-RADIATOR A.S. COMPLETE
7 17038621 NUT M12
8 17091374 SPRING WASHER Ø12X30X3,0 MM
10 16610724 SCREW M12X1,75X70 MM
12 741570 WASHER Ø10X17 MM SP=2,3
13 8108634 SPACING BAR
14 8020521 RETAINER
15 16605424 SCREW M8X16 MM (8.8)
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 8008234 WATER PIPE
18 8024997 RUBBER SLEEVE
19 8025744 RUBBER SLEEVE
20 98490783 CLIP Ø55-65 MM
21 17764891 CLIP Ø40/60 MM
22 17764791 CLIP Ø32/50 MM
23 17038421 HEXAGON NUT M12 (8)
24 8106383 ENGINE SUSPENSION RIGHT
25 8106384 ENGINE SUSPENSION LEFT
26 11390521 HEXAGON BOLT M16X1,5X40 MM
27 17092171 WASHER Ø16X32X3,4 MM
