8065SRU26.05

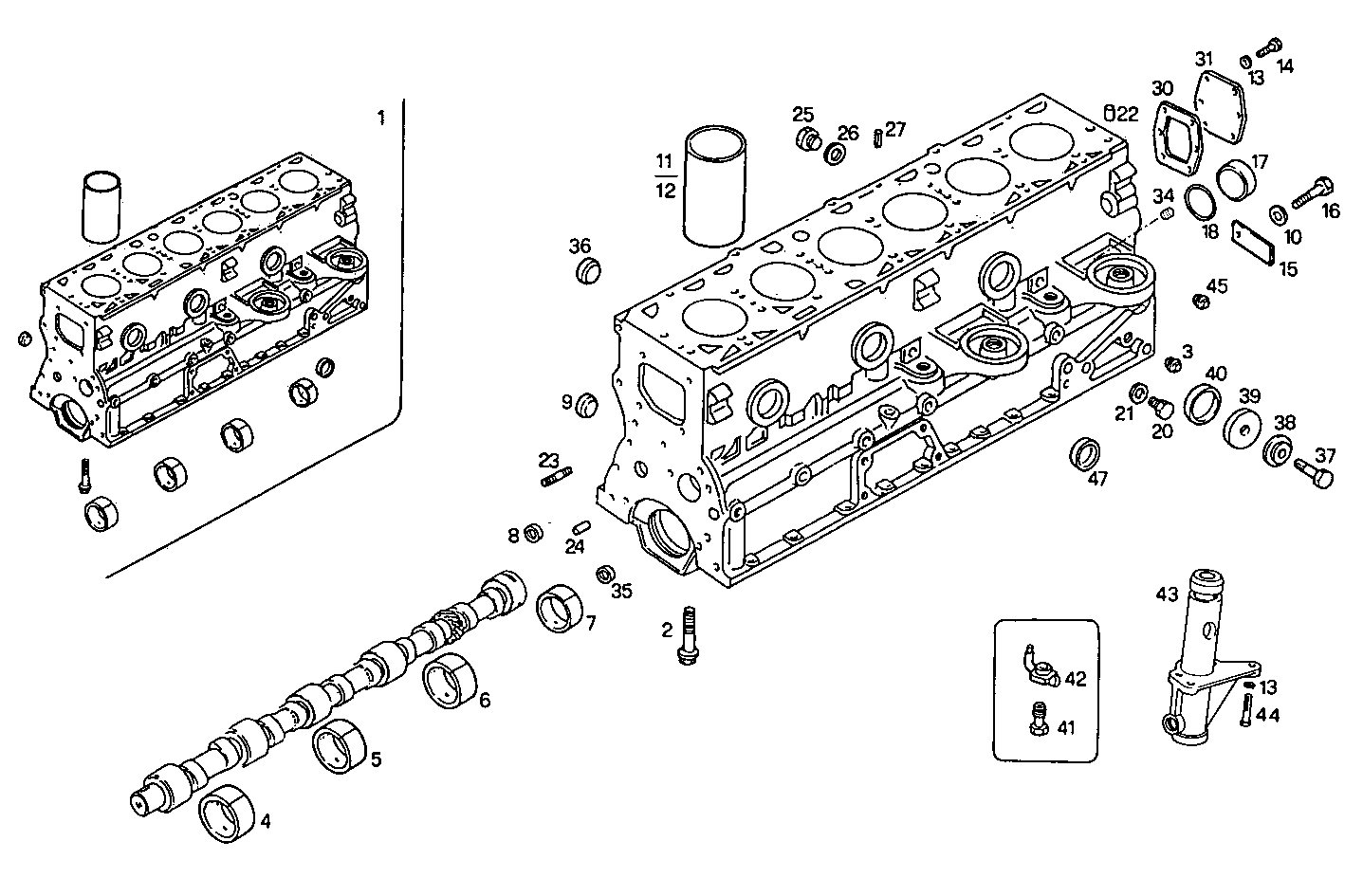

0400.103 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 500302558 CRANKCASE ASSY
2 4792169 SCREW
3 99434231 THREADED PLUG M10X1,25
4 4603448 CAMSHAFT BEARING FRONT
5 4603449 CAMSHAFT BEARING MOGUL
6 4603450 CAMSHAFT BEARING CLEVITE
7 4603451 CAMSHAFT BEARING MOGUL
8 14328201 LOCK PLUG M10
9 14282770 LOCK PLUG Ø36 MM
10 17090174 SPRING WASHER Ø10X20 MM
11 4803030 CYLINDER LINER
12 4803031 CYLINDERLINER +0.2
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16043324 HEXAGON BOLT M8X18 MM
15 98443528 LOCKING PLATE
16 15853221 HEXAGON BOLT
17 98412737 LOCK PLUG [from ...]
18 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
20 10300511 LOCK PLUG M12X1,5
21 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
22 4846850 DOWEL PIN
23 16730124 STUD M8X60 MM
24 17275410 DOWEL PIN Ø8 MM
25 4665029 LOCK PLUG M42X1,5
26 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
27 17254970 DOWEL PIN Ø5 MM
30 99445564 FLAT ENGINE GASKET SP=1,5 MM
31 4653282 REAR C.CASE COVER
34 4782452 DOWEL PIN
35 14328501 LOCK PLUG Ø16 MM
36 14327401 PLUG Ø13 MM
41 98475228 SCREW CONNECTOR [from 674995]
42 98475474 OIL NOZZLE [from 674995]
43 500301680 SUPPORT
44 16605624 HEXAGON BOLT M8X25 MM (8.8)
45 99434232 THREADED PLUG M14X1,5
47 14329901 LOCK PLUG Ø40 MM
