8065SU07.05A580

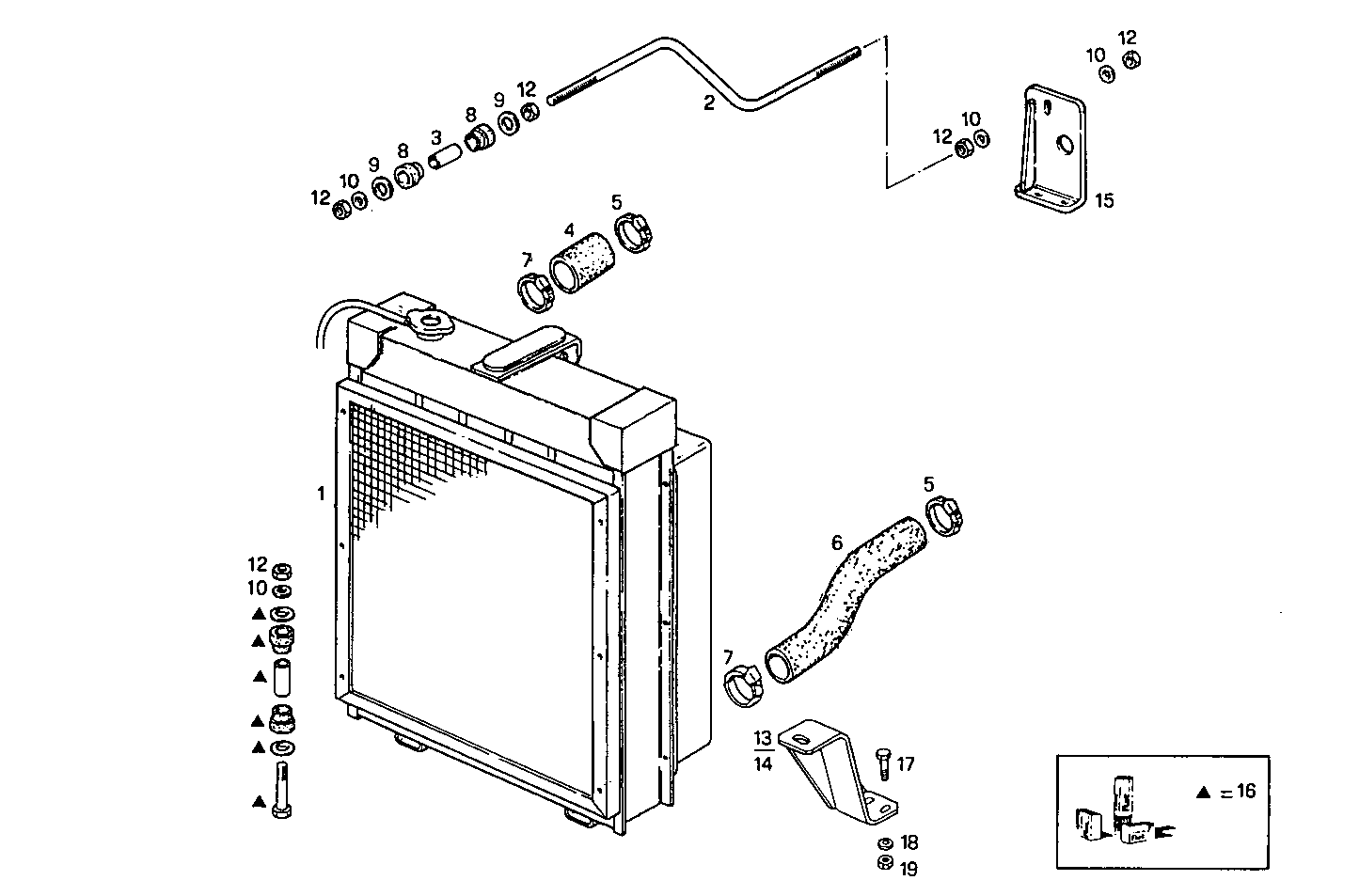

A22410015 RADIATOR FOR SETTING TILL MAX POWER

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8020420 WATER RADIATOR OPT.
1 8038540 WATER RADIATOR OPT.
2 8024390 TIE ROD
3 8108634 SPACING BAR
4 8024770 RUBBER SLEEVE
5 17764891 CLIP Ø40/60 MM
6 8026475 RUBBER SLEEVE
7 98490783 CLIP Ø55-65 MM
8 741569 RUBBER LUG
9 741570 WASHER Ø10X17 MM SP=2,3
10 17091374 SPRING WASHER Ø12X30X3,0 MM
11 8015684 WATER PIPE
12 17038421 HEXAGON NUT M12 (8)
13 8024194 SUPPORT RIGHT
14 8024184 SUPPORT LEFT
15 8020521 RETAINER
16 8090341 KIT-RADIATOR A.S. COMPLETE
17 16607824 HEXAGON BOLT M10X35 MM (8.8)
18 17090474 SPRING WASHER Ø10X27 MM SP=2,5
19 17038121 HEXAGON NUT M10
