8065U06.05

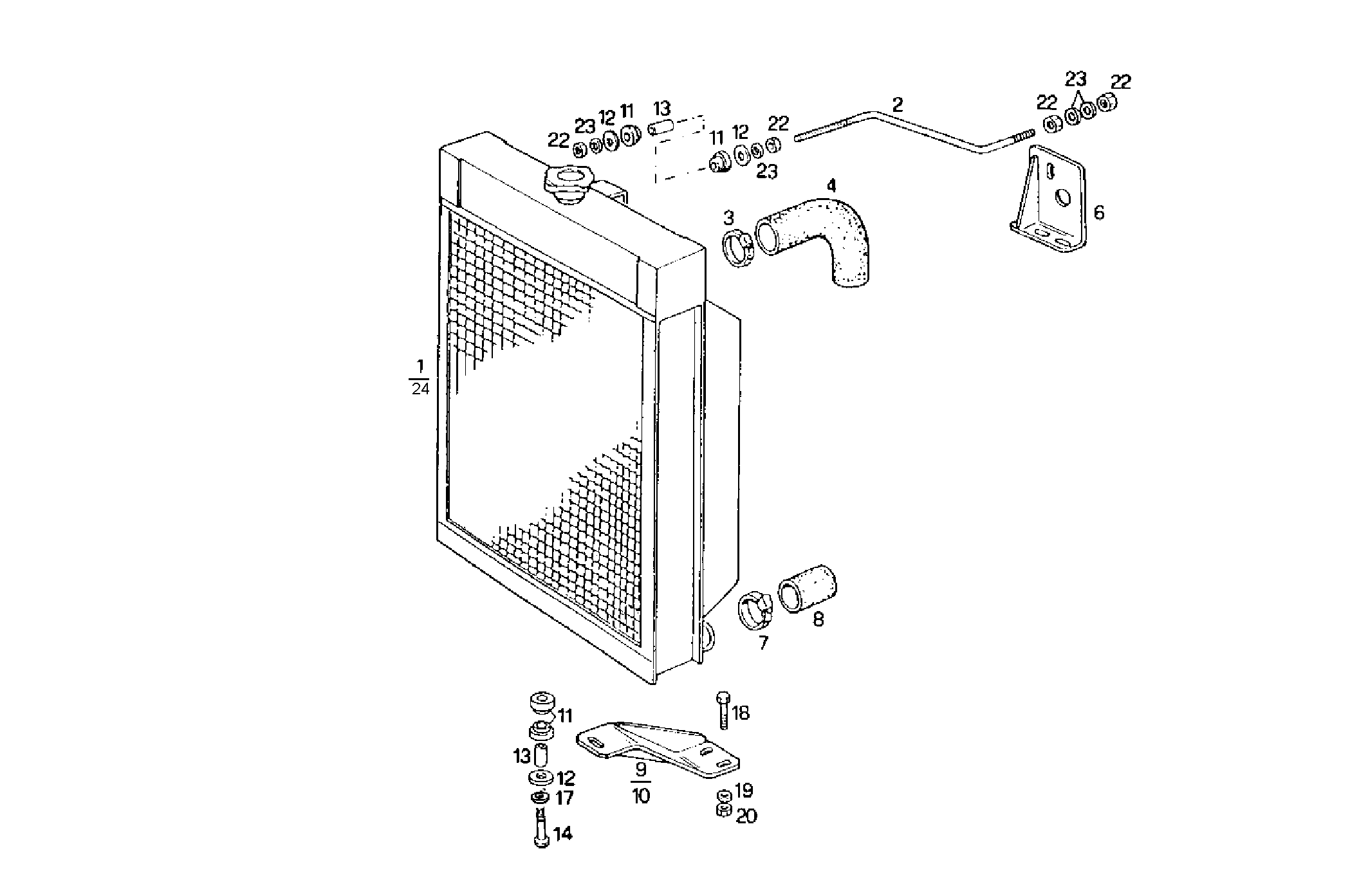

A22010048 RADIATOR FOR SETTING TILL MAX POWER - genset

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8024731 WATER RADIATOR OPT.
2 8024390 TIE ROD
3 98490783 CLIP Ø55-65 MM
4 8024783 CONNECTOR SLEEVE
6 8020521 RETAINER
7 17764791 CLIP Ø32/50 MM
8 17742887 RUBBER SLEEVE
9 8024184 SUPPORT LEFT
10 8024194 SUPPORT RIGHT
11 741569 RUBBER LUG
12 741570 WASHER Ø10X17 MM SP=2,3
13 8108634 SPACING BAR
14 16608524 HEXAGON BOLT M10X1,5X70 MM (8.8)
17 17090124 WASHER
18 16607824 HEXAGON BOLT M10X35 MM (8.8)
19 17090474 SPRING WASHER Ø10X27 MM SP=2,5
20 17038121 HEXAGON NUT M10
22 17038421 HEXAGON NUT M12 (8)
23 17091374 SPRING WASHER Ø12X30X3,0 MM
24 8039266 WATER RADIATOR OPT.
