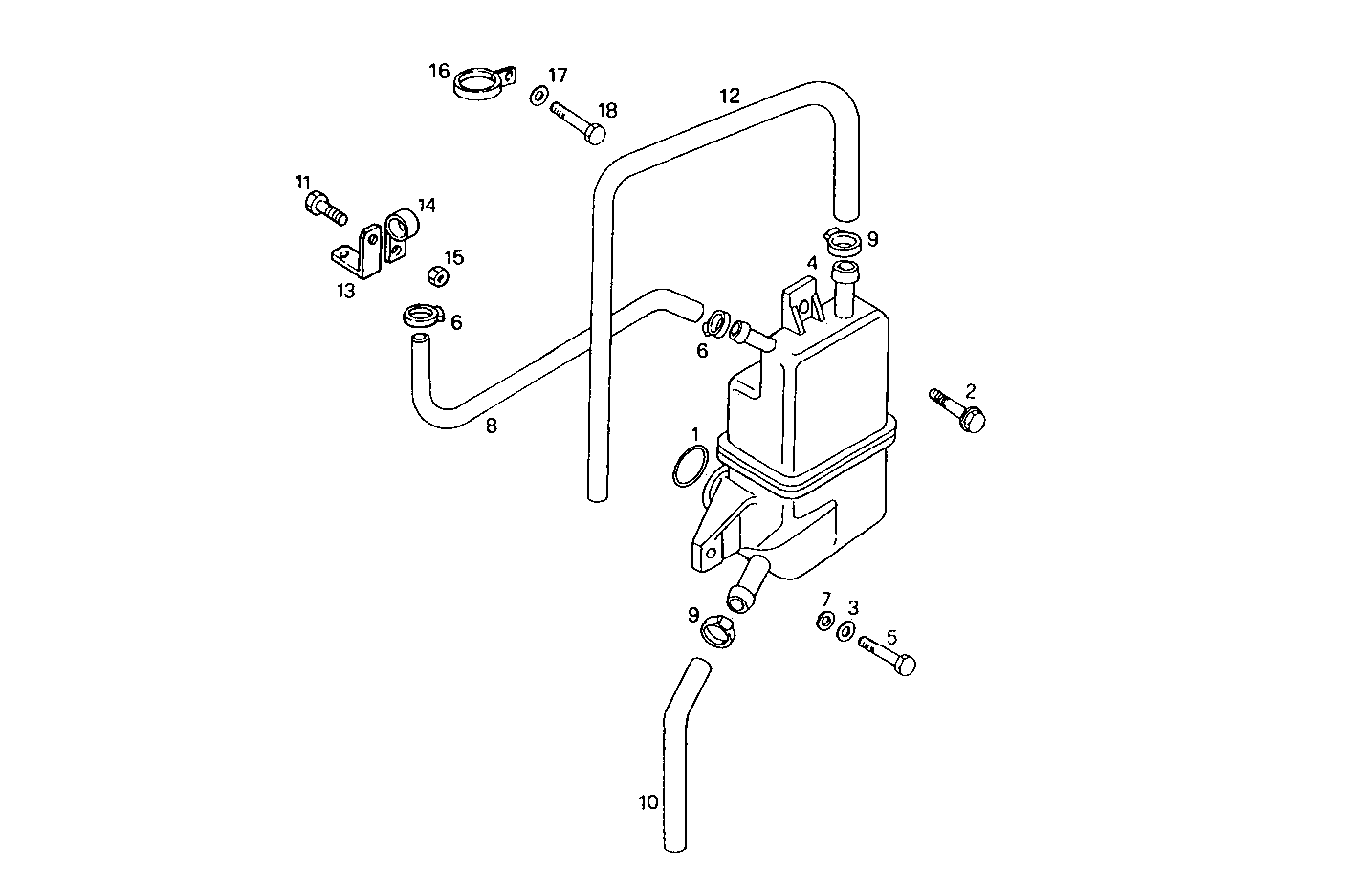

| Item |
Part number |
Description |
|
1 |
17289681 |
O-RING Ø44 MM SP=3,53 MM |
|
2 |
16595724 |
HEXAGON BOLT M20X120 MM |
|
3 |
12646724 |
WASHER Ø8X21X1,5 MM |
|
4 |
98478412 |
BREATHER |
|
5 |
16707134 |
SOCKET-HEAD SCREW M8X20 MM |
|
6 |
18088292 |
CLIP Ø12/20 MM |
|
7 |
17101534 |
SPRING WASHER Ø8 MM |
|
8 |
500319931 |
RUBBER SLEEVE L=550 MM |
|
9 |
17764592 |
CLIP Ø20/32 MM |
|
10 |
98493760 |
RUBBER SLEEVE |
|
11 |
16586324 |
HEXAGON BOLT M8X1,25X20 MM |
|
12 |
98423606 |
RUBBER SLEEVE Ø25X18 MM |
|
13 |
7301026 |
FASTENING BRACKET |
|
14 |
17316990 |
LOCK/YOKE |
|
15 |
17044721 |
HEXAGON NUT M8X1,25 |
|
16 |
7302252 |
FASTENING BRACKET |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
16043024 |
HEXAGON BOLT M8X12 MM (8.8) |
