8140.43.3931

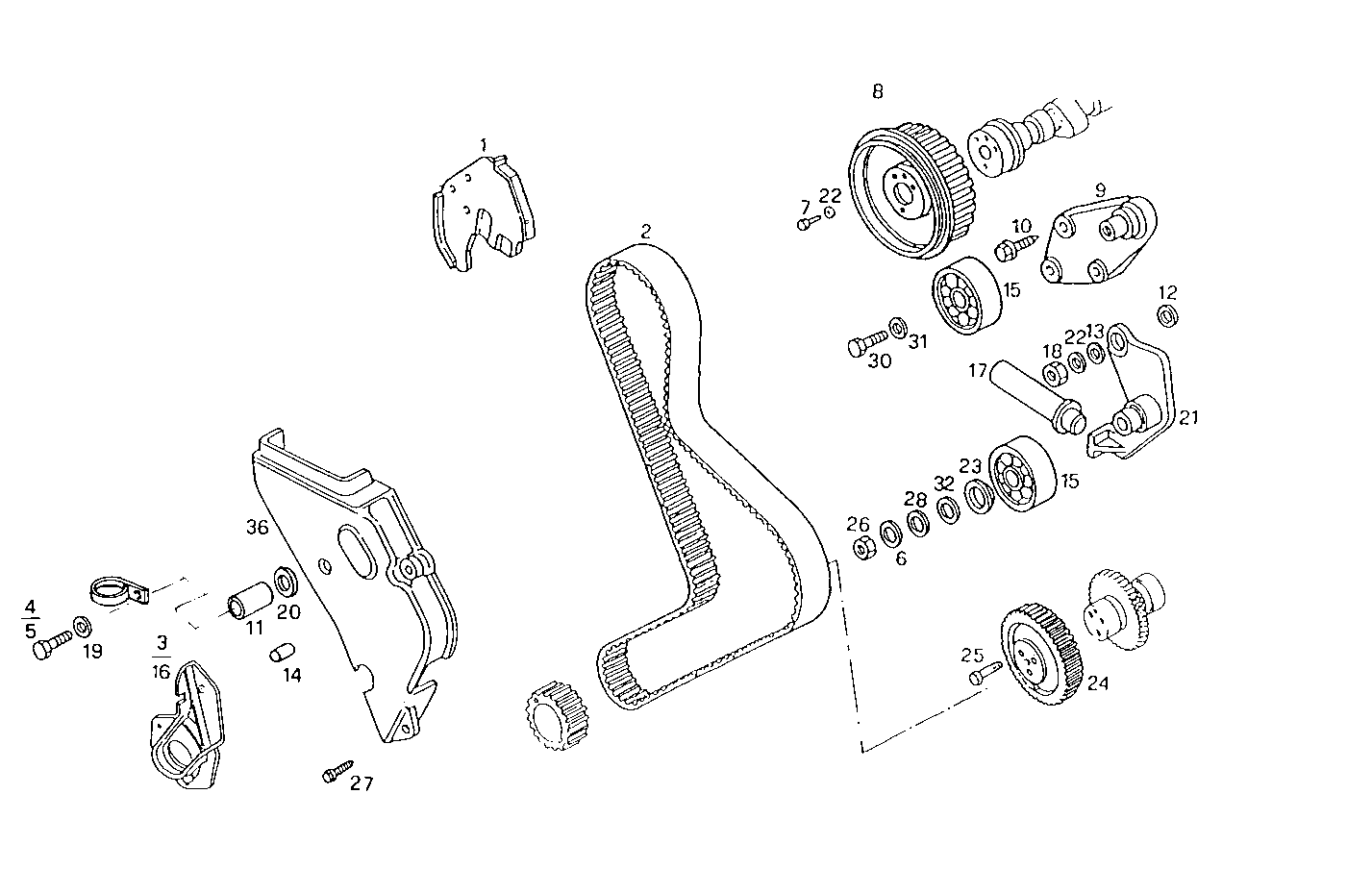

1000.089 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 98475847 PROTECTION [from 1815310]
2 99456477 TIMING BELT
3 98474997 COVER BOTTOM [up to 2263443]
4 16604724 HEXAGON BOLT M6X70
5 99476778 HEXAGON BOLT M6X80 MM
6 17798374 SPRING WASHER Ø10,2X18,1 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 99454876 CAMSHAFT PINION MIBA
9 99443867 SUPPORT BUNDY
10 500342834 HEXAGON BOLT M8X30 MM
11 4717072 SPACER BUSH L=41 MM
12 4861928 SPACER [from 1173278]
13 12646721 WASHER Ø8X20 MM
14 4732685 DOWEL PIN Ø10 MM
15 99432547 ENGINE BEARINGS
16 99455320 COVER BOTTOM [from 2263444]
17 4279745 BELT TENSIONER
18 17037931 HEXAGON NUT M8X1,25
19 17088474 WASHER Ø6X12 MM
20 17094714 WASHER Ø6,4X12 MM
21 4849127 SUPPORT [from 1173278]
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 7300035 SPACER RIV-SKF
24 98415210 INJ.PUMP DRIV.GEA MIBA
25 14337521 LOCKING SCREW M12X1,25X30 MM
26 17038221 HEXAGON NUT M10
27 16597224 HEXAGON BOLT M6X18 MM
28 17095104 WASHER Ø10X21X2 MM
29 99445161 COVER [from 1815310]
30 16288424 HEXAGON BOLT M10X1,25X25 MM
31 99447327 SPACER SP=5 MM [from 1832166]
32 98479895 SPACING BAR [from 1832166]
