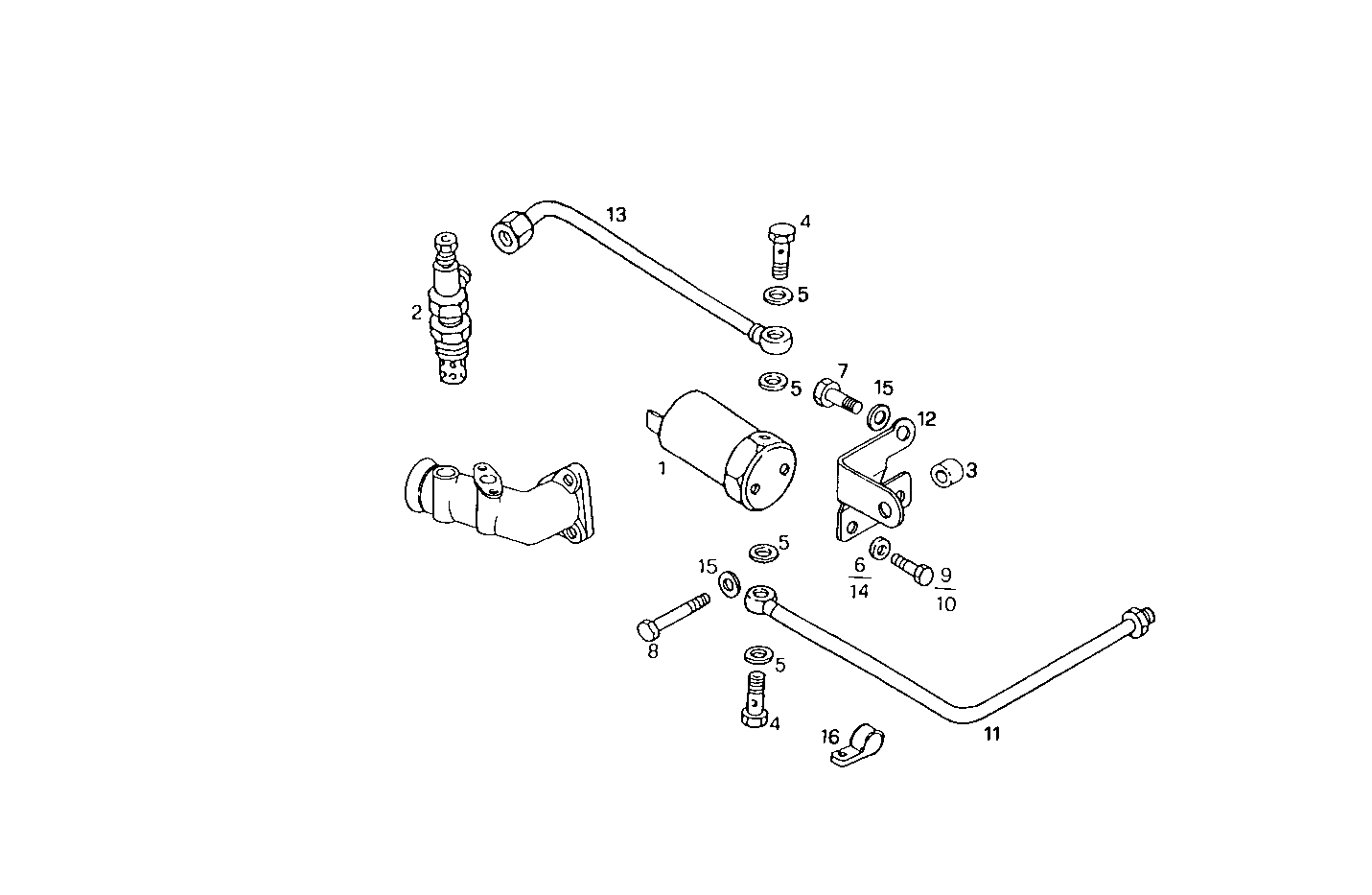

| Item |
Part number |
Description |
|
1 |
98494902 |
ELECTROVALVE |
|
2 |
4849601 |
THERMO-STARTER |
|
3 |
4853864 |
SPACING BAR |
|
4 |
7303136 |
SCREW CONNECTOR |
|
5 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
6 |
11181574 |
WASHER Ø5X11 MM SP=0,9 MM |
|
7 |
16043724 |
HEXAGON BOLT M8X28 MM (8.8) |
|
8 |
16044924 |
SCREW M8X1,25X85 MM |
|
9 |
16602024 |
SCREW M5X12 MM (8.8) |
|
10 |
16603524 |
SCREW M6X12 MM (8.8) |
|
11 |
4862446 |
FUEL LINE |
|
12 |
98451780 |
RETAINER |
|
13 |
98455250 |
FUEL LINE |
|
14 |
17088474 |
WASHER Ø6X12 MM |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
17314590 |
RETAINER Ø6 MM |
