8140.43.3941

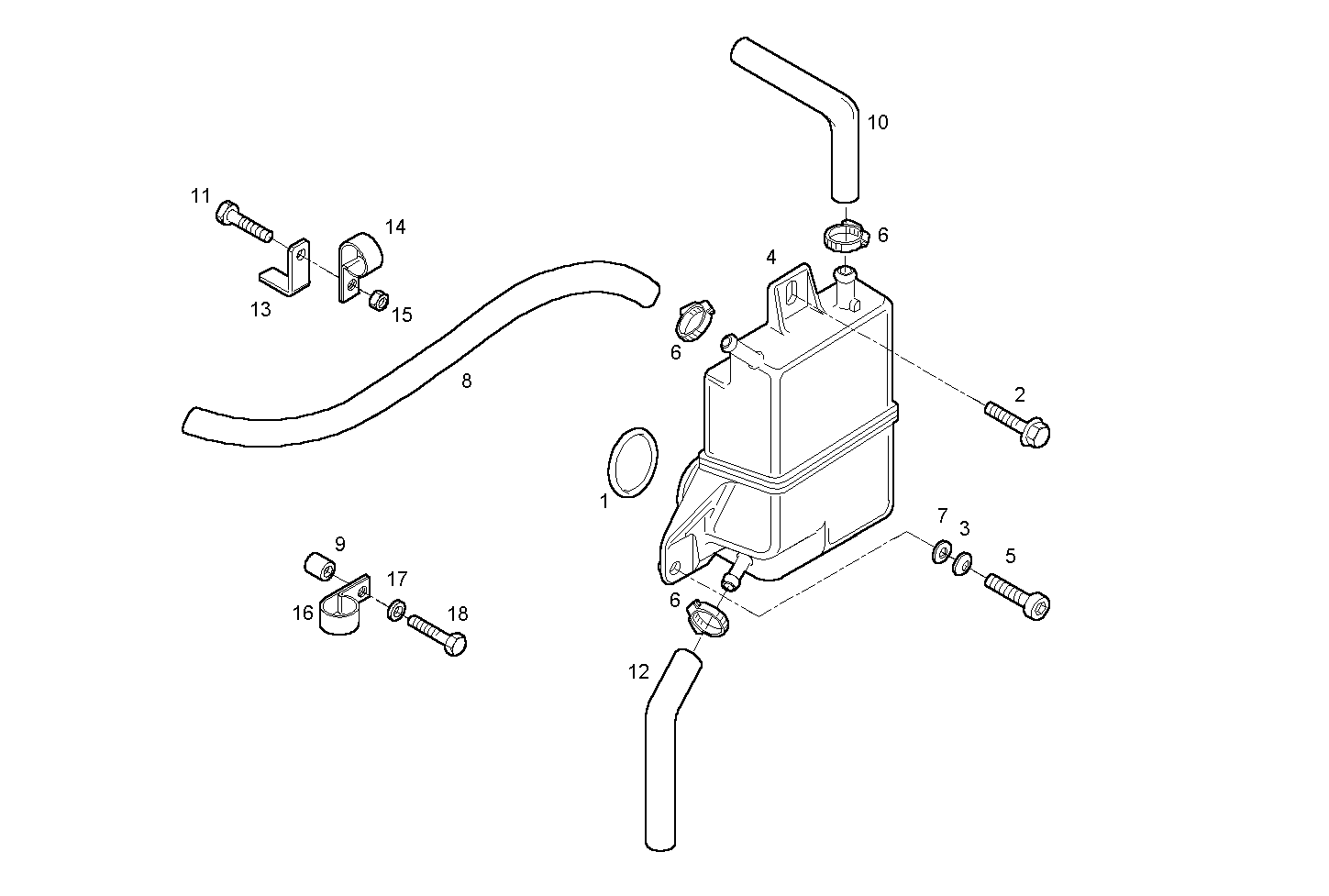

0450.148 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 17289681 O-RING Ø44 MM SP=3,53 MM
2 16673834 HEXAGON BOLT M8X30 MM
3 12646721 WASHER Ø8X20 MM
3 12646724 WASHER Ø8X21X1,5 MM
4 98478412 BREATHER
5 16707134 SOCKET-HEAD SCREW M8X20 MM
6 13000390 CLIP
7 17101534 SPRING WASHER Ø8 MM
8 500319931 RUBBER SLEEVE L=550 MM
9 17816414 SPACING BAR Ø8,5X18 MM SP=20 MM
10 500334744 RUBBER SLEEVE
11 18138424 HEXAGON BOLT M8X20 MM
12 500336538 RUBBER SLEEVE
13 7301026 FASTENING BRACKET
14 17316990 LOCK/YOKE
15 17044721 HEXAGON NUT M8X1,25
16 7302252 FASTENING BRACKET
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 16043024 HEXAGON BOLT M8X12 MM (8.8)
