8140.43B.4305

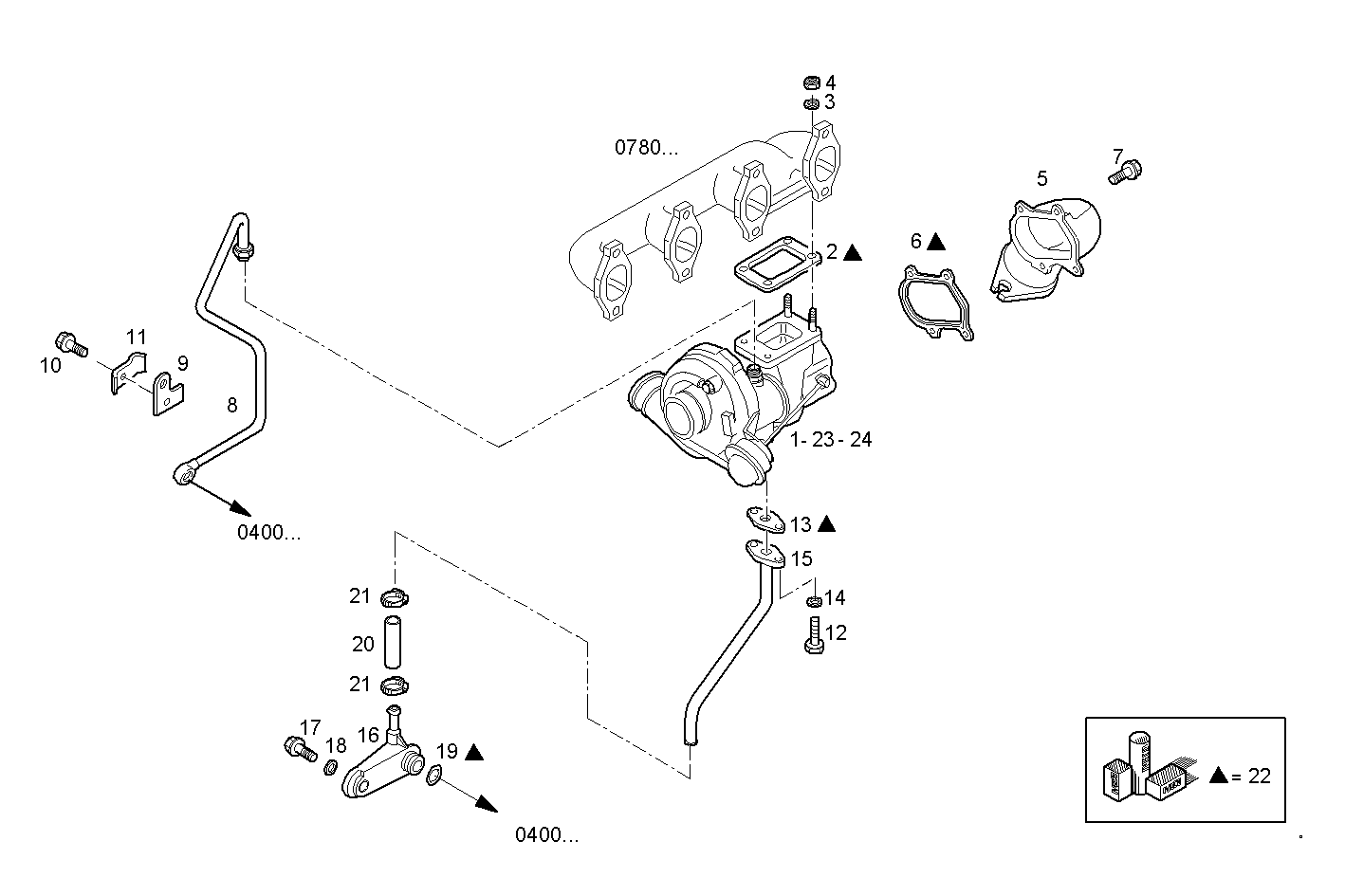

2400.255 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 500358190 TURBOCHARGER ASSY
2 4834948 EXH. MANIFOLD GKT
3 17094914 WASHER 8x16
4 500322677 HEXAGON NUT M8
5 99462592 AIR PIPE/DUCT
6 98484659 FLAT ENGINE GASKET
7 16673835 HEXAGON BOLT M8X30 MM
8 99462609 OIL LINE
9 500318425 RETAINER
10 16597925 HEXAGON BOLT M8X14 MM
11 98487328 FASTENING BRACKET
12 18137825 HEXAGON BOLT M6X16
13 500370706 FLAT ENGINE GASKET
14 17088474 WASHER Ø6X12 MM
15 500344909 OIL LINE
16 98499352 FLANGED SOCKET
17 16288424 HEXAGON BOLT M10X1,25X25 MM
18 17097124 WASHER 10x21
19 14462881 O-RING SP=3,53 MM
20 500313648 RUBBER SLEEVE Ø12 MM
21 18088292 CLIP Ø12/20 MM
22 500366293 KIT-SEAL.GASKETS
23 500372213 TURBOCHARGER ALTERNATIVE USE
24 504071573 TURBOCHARGER ALTERNATIVE USE
