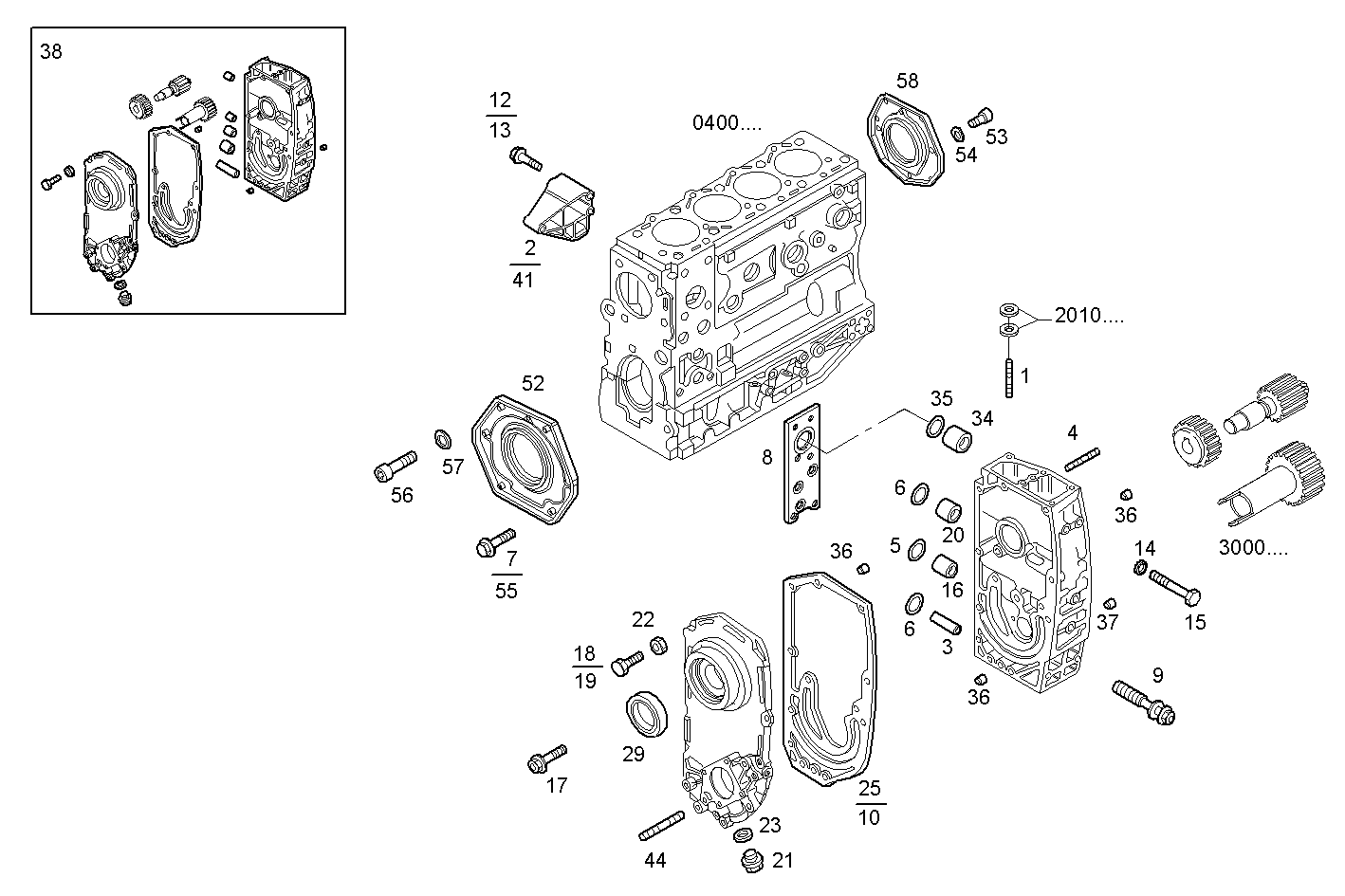

| Item |
Part number |
Description |
|
1 |
13544121 |
STUD M8X16X55 MM |
|
2 |
500346555 |
BRACKET LEFT |
|
3 |
4710945 |
BUSH Ø18X30 MM |
|
4 |
16746824 |
STUD M8X30 MM (8.8) |
|
5 |
17282181 |
O-RING Ø21,8 MM SP=2,6 MM |
|
6 |
500306196 |
O-RING Ø17,46 MM SP=2,62 MM |
|
7 |
18137724 |
SCREW M6X30 MM |
|
8 |
500368070 |
FLAT ENGINE GASKET |
|
9 |
99458260 |
SCREW M12X1,5X150 MM |
|
10 |
504032241 |
FLAT ENGINE GASKET |
|
12 |
16289624 |
HEXAGON BOLT M10X1,25X100 MM |
|
13 |
16289124 |
HEXAGON BOLT M10X1,25X60 MM |
|
14 |
17094924 |
WASHER Ø8X16 MM |
|
15 |
98468138 |
HEXAGON BOLT M8X1,25X150 MM |
|
16 |
4279406 |
BUSH Ø22,3X12 MM |
|
17 |
504008971 |
SCREW |
|
18 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
19 |
16606034 |
HEXAGON BOLT M8X45 MM |
|
20 |
4279407 |
BUSH Ø18X18 MM |
|
21 |
4827588 |
PLUG M20 |
|
22 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
23 |
10263360 |
SEAL GASKET 20x26x1 |
|
25 |
98421263 |
FLAT ENGINE GASKET SP=0,5 MM |
|
29 |
98454045 |
SHAFT SEAL |
|
34 |
98461177 |
BUSH Ø40X46,2 MM [from 1608990] |
|
35 |
98461178 |
O-RING Ø46,04 MM SP=3,53 MM |
|
36 |
98465476 |
DOWEL PIN Ø8 MM |
|
37 |
500325603 |
DOWEL PIN Ø11 MM |
|
38 |
504027985 |
BEARING HOUSING ASSY |
|
41 |
99452520 |
BRACKET RIGHT |
|
44 |
13449524 |
STUD M10X1,25X15X25 |
|
52 |
504059359 |
SHAFT SEAL WITH SEAL |
|
53 |
16690424 |
CYLIND-HEAD SCREW M8X1,25X16 MM |
|
54 |
17089574 |
WASHER Ø8X16 MM |
|
55 |
18137624 |
HEXAGON BOLT M6X25 MM |
|
56 |
16689134 |
SOCKET-HEAD SCREW M6X16 MM |
|
57 |
17088474 |
WASHER Ø6X12 MM |
|
58 |
504059361 |
SHAFT SEAL WITH SEAL |
