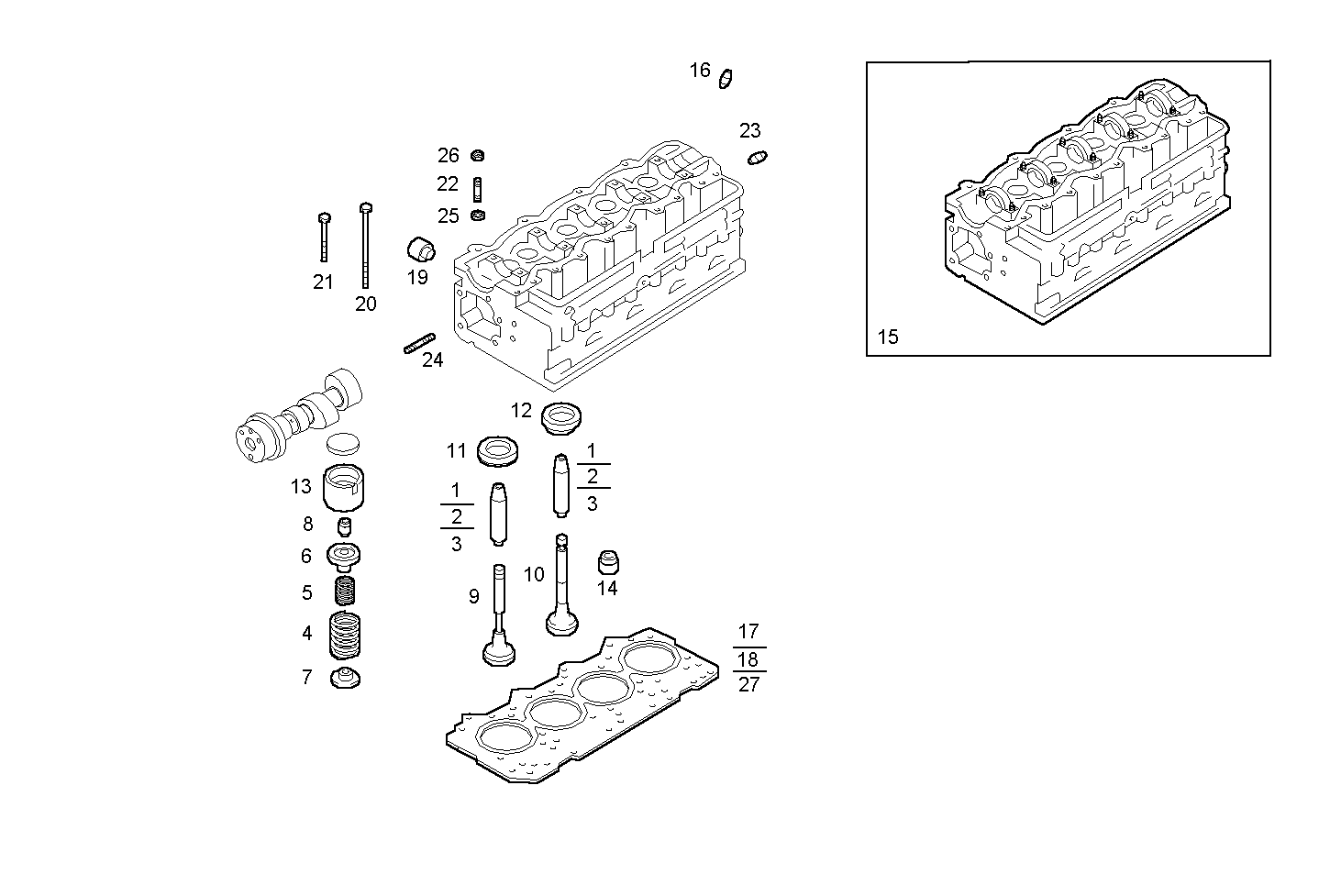

| Item |
Part number |
Description |
|
1 |
4749397 |
VALVE GUIDE |
|
2 |
4749398 |
VALVE GUIDE +0.10 |
|
3 |
4749399 |
VALVE GUIDE +0,2 |
|
4 |
4734533 |
ENGINE VALV.SPRING OUTER |
|
5 |
4723186 |
ENGINE VALV.SPRING INNER |
|
6 |
4734531 |
SPRING CAP TOP |
|
7 |
4749396 |
SPRING CAP BOTTOM |
|
8 |
4733465 |
VALVE CONE |
|
9 |
7301820 |
INLET VALVE |
|
10 |
99432837 |
EXHAUST VALVE |
|
11 |
500311083 |
VALVE SEAT STD. INTAKE |
|
12 |
500311085 |
VALVE SEAT STD. EXHAUST |
|
13 |
4733350 |
VALVE TAPPET |
|
14 |
40101573 |
CAP |
|
15 |
500355509 |
CYLINDER HEAD ASSY |
|
16 |
4279430 |
THREADED BUSH M14X1,5X20 MM |
|
17 |
99432354 |
CYL.HEAD GASKET SP=1,2 MM |
|
18 |
99432353 |
CYL.HEAD GASKET SP=1,3 MM |
|
19 |
14281970 |
LOCK PLUG Ø12 MM |
|
20 |
4854648 |
CYL.HEAD STUD M12X1,25X163 MM |
|
21 |
4828150 |
CYL.HEAD STUD M12X1,25X119 MM |
|
22 |
13543924 |
STUD M8X16X45 MM |
|
23 |
14326001 |
THREADED PLUG M10X1,25 |
|
24 |
16745124 |
STUD M6X25 MM |
|
25 |
98466492 |
DOWEL PIN [from 1671414] |
|
26 |
99486342 |
HEXAGON NUT M8X1,25 |
|
27 |
99460983 |
CYL.HEAD GASKET SP=1,4 MM |
