8140.43C.2590

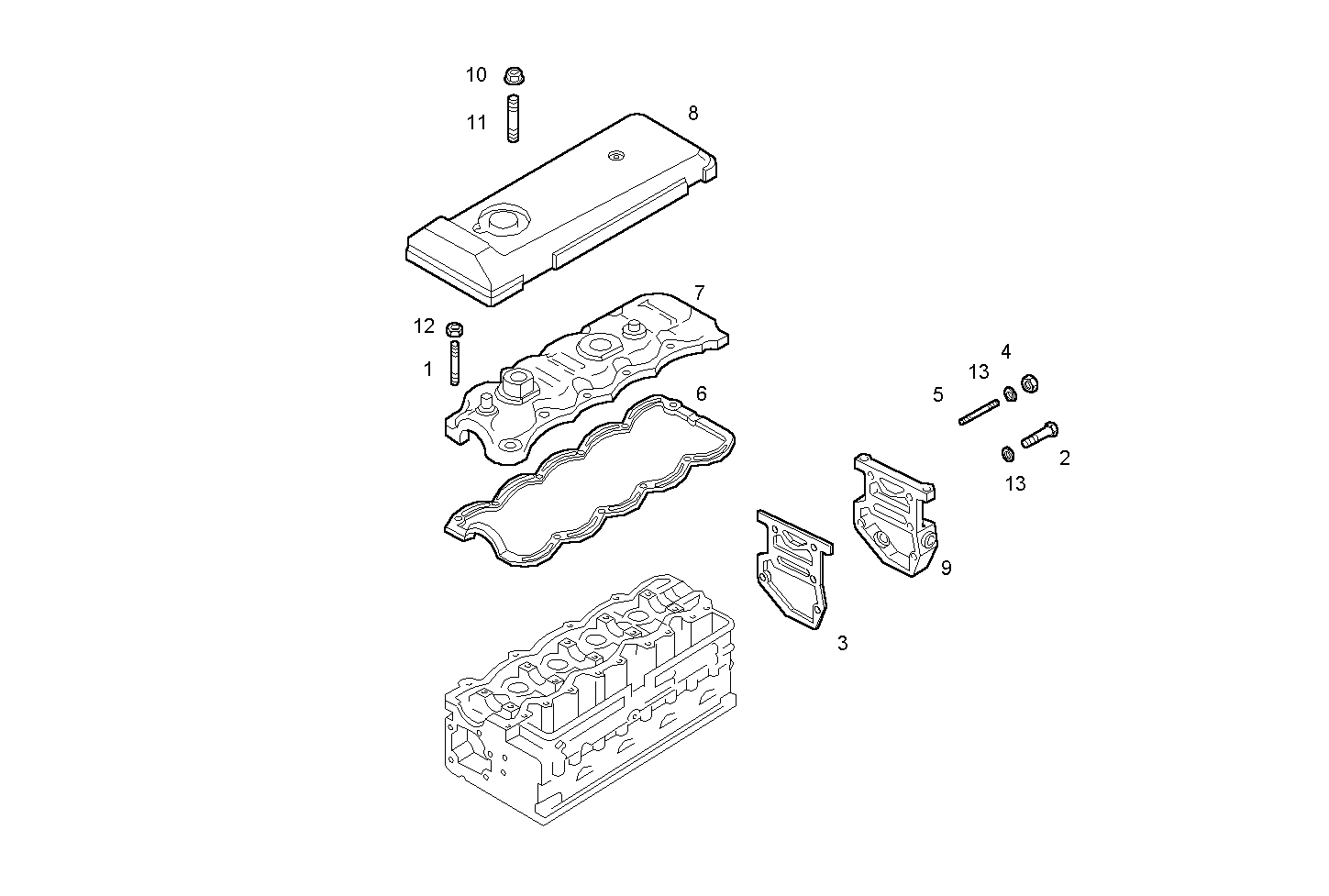

0630.011 CYL. HEAD COVERS
| Item | Part number | Description |
|---|---|---|
| 1 | 17364824 | STUD M6X30 MM |
| 2 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 3 | 500376326 | FLAT ENGINE GASKET |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 16729724 | STUD M8X40 MM |
| 6 | 500388382 | HEAD COVER GASKET |
| 7 | 98498877 | CYL. HEAD COVER BOTTOM |
| 8 | 98497356 | CYL. HEAD COVER TOP |
| 9 | 500332067 | COVER REAR CYLINDER HEAD |
| 10 | 98439382 | NUT |
| 11 | 16727624 | STUD M6X16 MM |
| 12 | 17152721 | NUT M6 |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
