8140.43C.2590

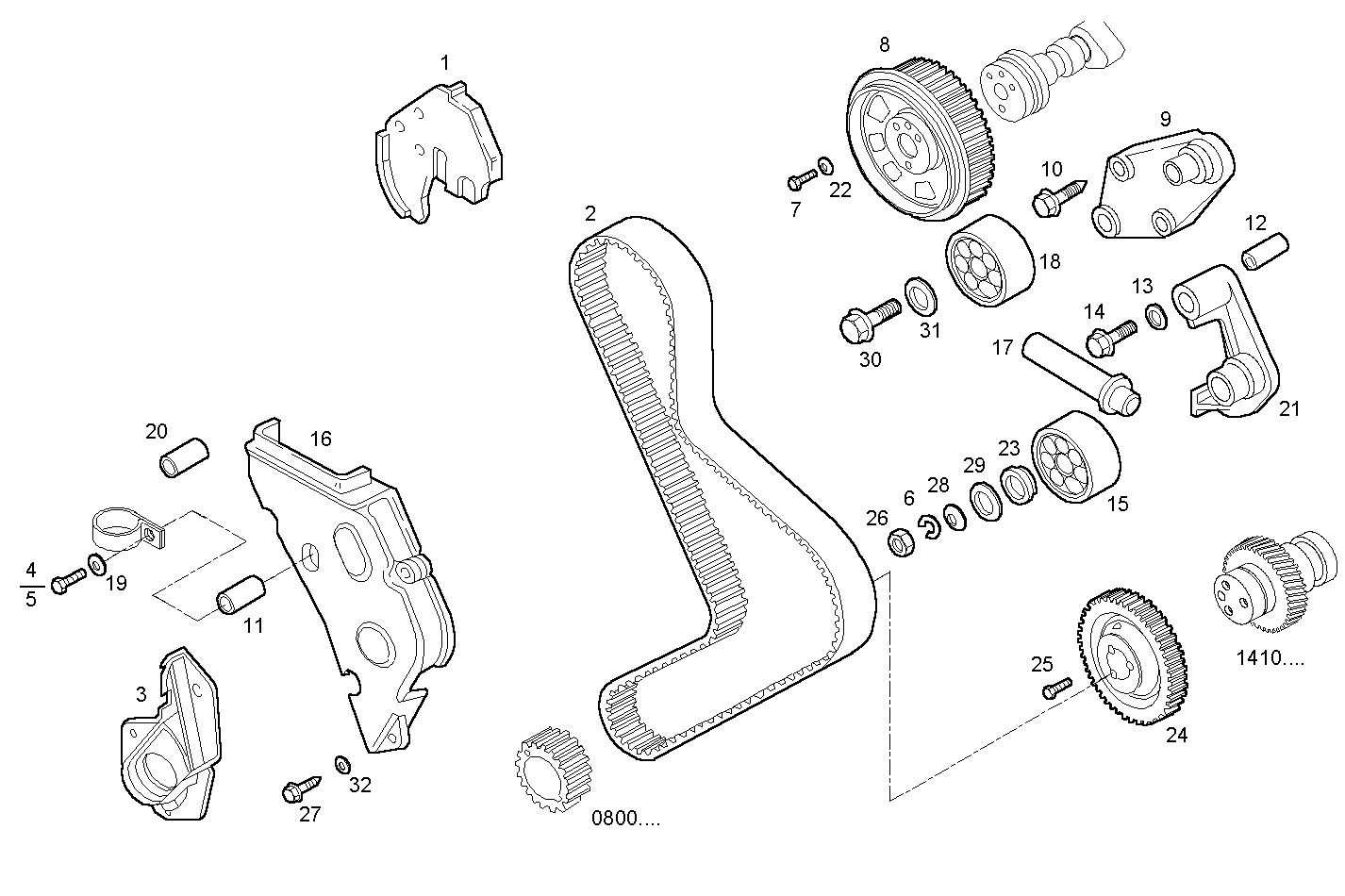

1000.090 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 504020090 PROTECTION
2 99456477 TIMING BELT
3 504010962 COVER BOTTOM
4 16604724 HEXAGON BOLT M6X70
5 16604824 HEXAGON BOLT M6X80 MM
6 17798374 SPRING WASHER Ø10,2X18,1 MM
7 16605534 HEXAGON BOLT M8X20 MM (10.9)
8 99454876 CAMSHAFT PINION MIBA
9 500358441 SUPPORT
10 500342834 HEXAGON BOLT M8X30 MM
11 4717072 SPACER BUSH L=41 MM
12 500326919 SPACER SP=8,3 MM
13 12646721 WASHER Ø8X20 MM
14 16592224 HEXAGON BOLT M8X55 MM
15 2992484 ENGINE BEARINGS
16 504022580 COVER
17 4279745 BELT TENSIONER
19 17088474 WASHER Ø6X12 MM
20 4732685 DOWEL PIN Ø10 MM
21 500326852 SUPPORT
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 7300035 SPACER RIV-SKF
24 98415210 INJ.PUMP DRIV.GEA MIBA
25 500372179 LOCKING SCREW M12X1,25X30 MM
26 17038221 HEXAGON NUT M10
27 16296924 HEXAGON BOLT
28 17097124 WASHER 10x21
29 98479895 SPACING BAR [from 1832166]
30 16288424 HEXAGON BOLT M10X1,25X25 MM
31 99447327 SPACER SP=5 MM [from 1832166]
32 12646624 WASHER
