8140.43C.2590

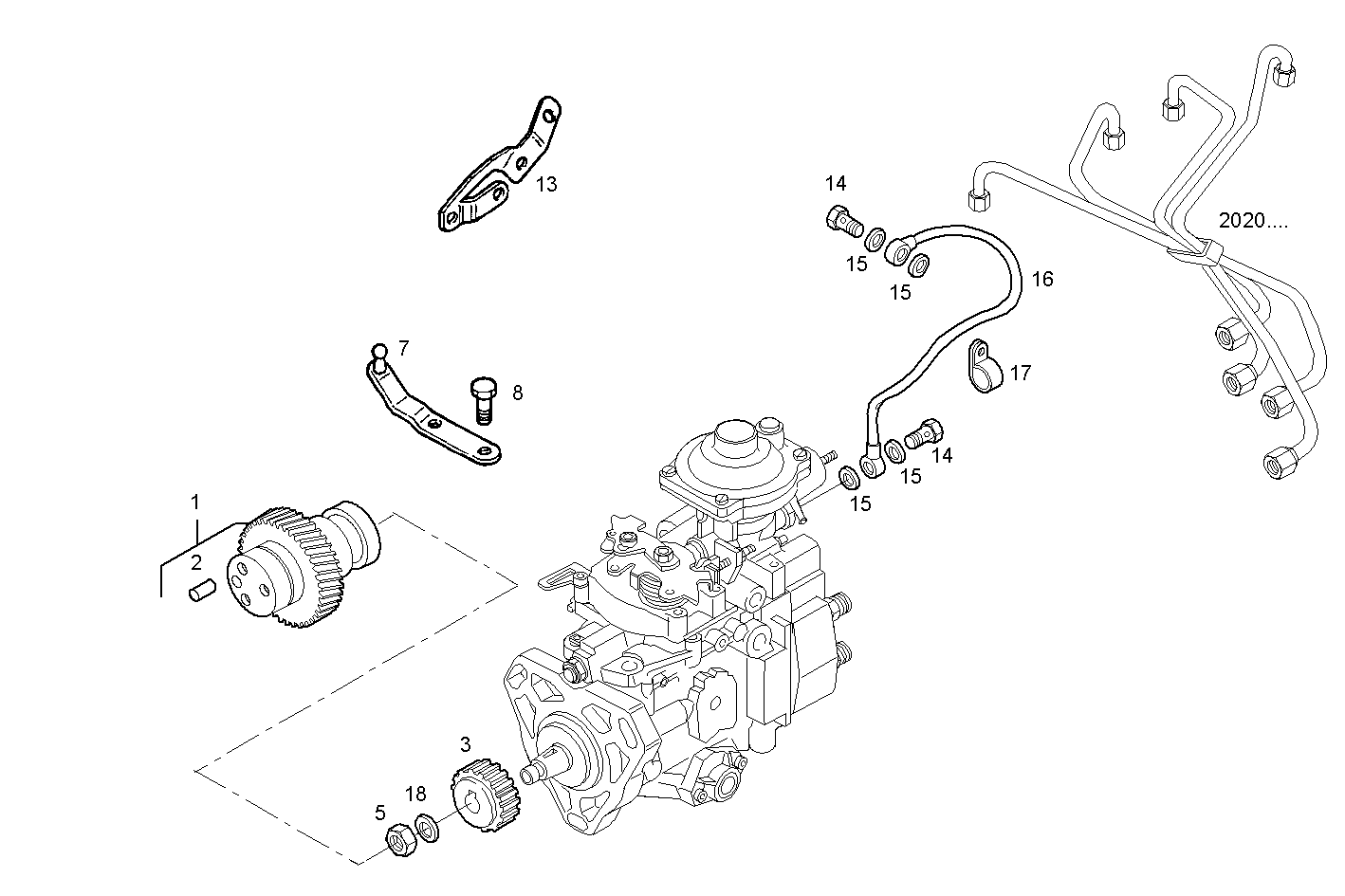

1410.124 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 99483335 | INJECT.PUMP SPIND ASSY |
| 2 | 10335910 | PARALLEL PIN |
| 3 | 500367360 | INJECT.PUMP BUSH 209° |
| 5 | 17043231 | NUT M14X1,5 |
| 7 | 500332325 | LEVER |
| 8 | 16596924 | HEXAGON BOLT M6X10 MM |
| 13 | 500332328 | RETAINER |
| 14 | 11904011 | SCREW CONNECTOR |
| 15 | 10262760 | SEAL GASKET Ø8,2 MM |
| 16 | 504063462 | FUEL LINE |
| 18 | 768389 | CIRCLIP |
