8140.43C.2590

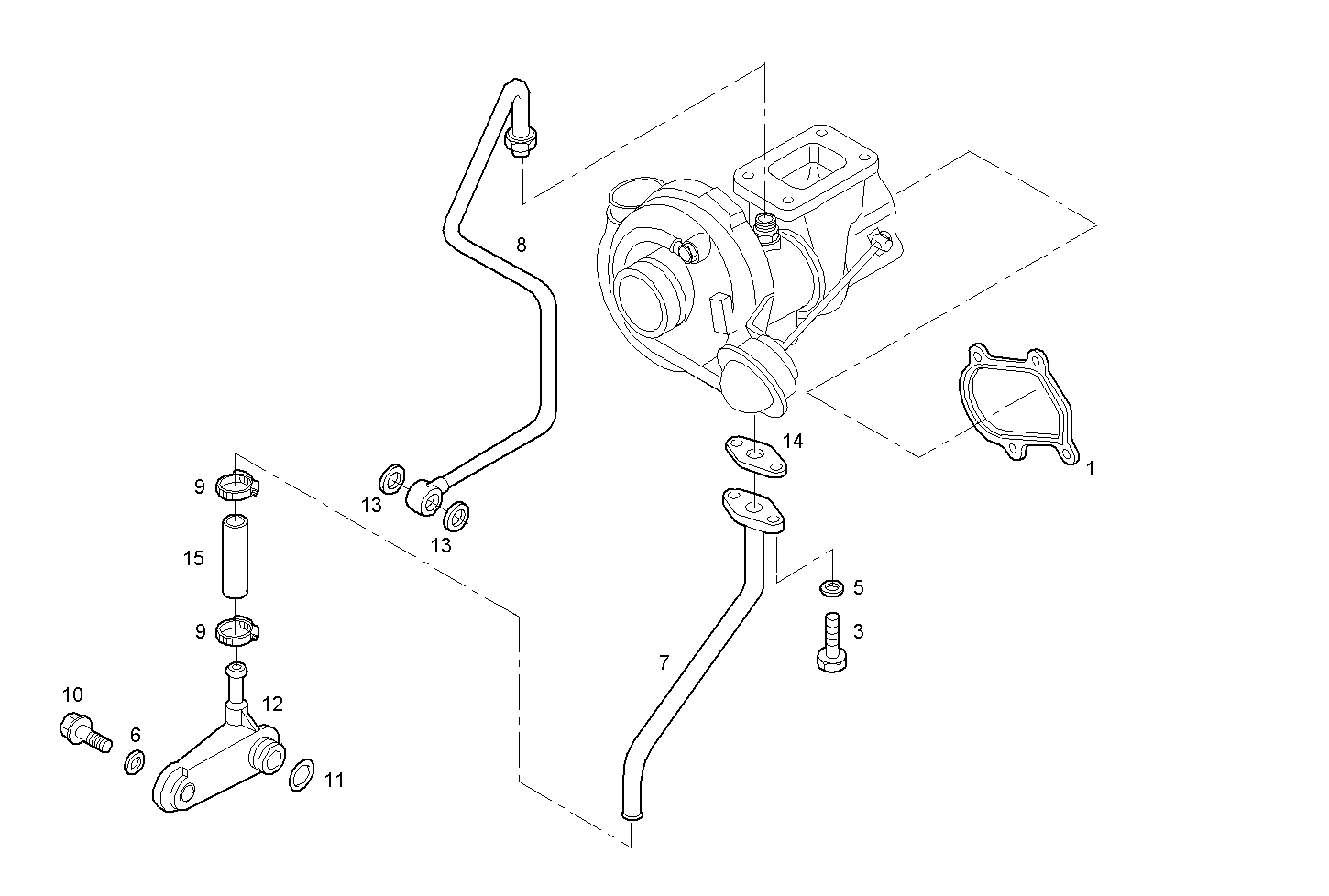

2420.192 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98484659 | FLAT ENGINE GASKET |
| 3 | 18137825 | HEXAGON BOLT M6X16 |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17097124 | WASHER 10x21 |
| 7 | 99455685 | OIL LINE |
| 8 | 99455930 | OIL LINE |
| 9 | 98463346 | CLIP Ø15-22 MM |
| 10 | 16288424 | HEXAGON BOLT M10X1,25X25 MM |
| 11 | 14462881 | O-RING SP=3,53 MM |
| 12 | 98499352 | FLANGED SOCKET |
| 13 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 14 | 500370706 | FLAT ENGINE GASKET |
| 15 | 500313648 | RUBBER SLEEVE Ø12 MM |
